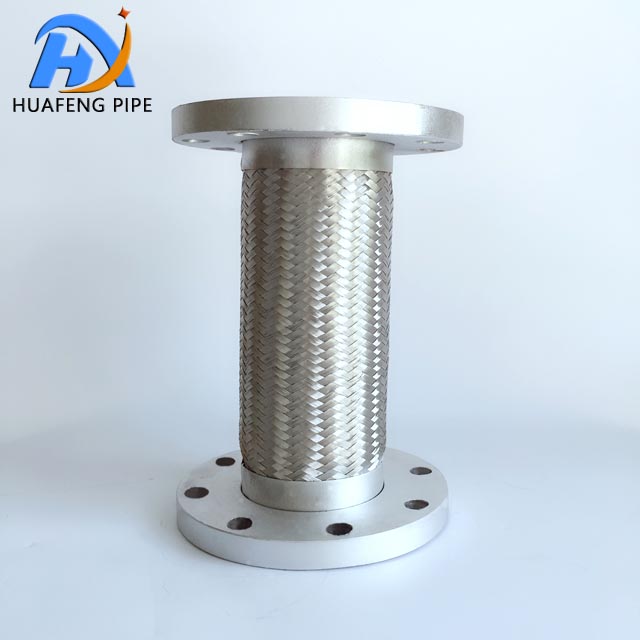

flange connection metal hose

The flange connection metal hose,also known as the flange metal braided flexible hose,is an important piping connection component widely used in various industrial fields.The braided hose with flange is mainly composed of three parts: a metal bellows, a mesh sleeve, and a connector.

Structural Composition

1.Metal Bellows: It exhibits excellent flexibility and corrosion resistance, maintaining stable performance in complex working environments. It is responsible for transmitting fluid media and serves as the core component of the hose.

2.Mesh Sleeve: It serves to reinforce and protect the bellows, preventing deformation when subjected to external pressure. The mesh sleeve is typically woven from metal wires or strips, possessing high strength and toughness.

3.Connector: It employs a flange connection, allowing the hose to be easily connected to various equipment. The connector section typically includes flange plates, bolts, nuts, and other fasteners to ensure tightness and stability of the connection.
