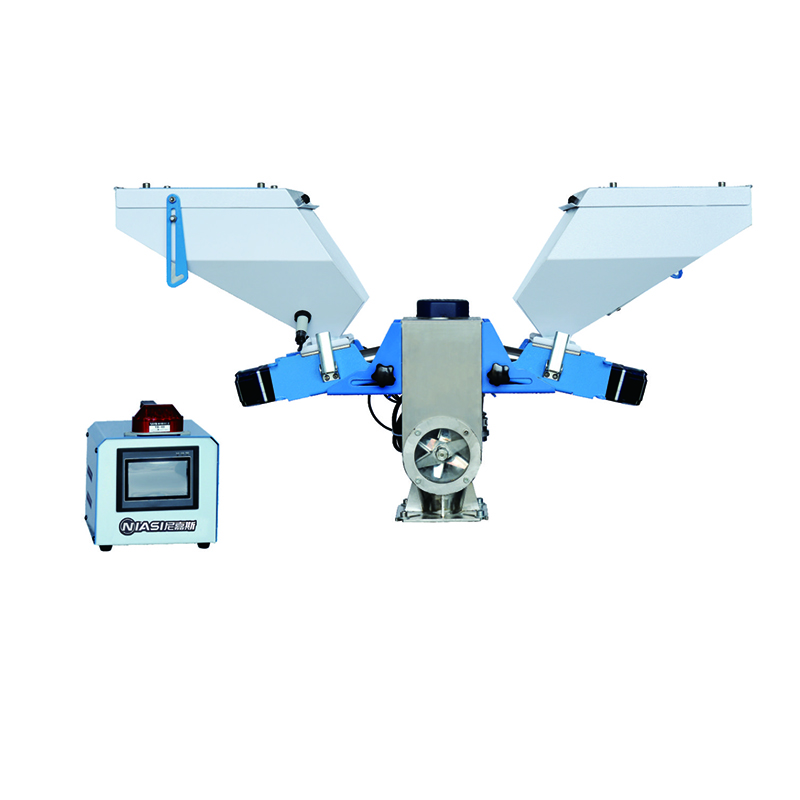

volumetric doser

12 month ago

22 0 

Dongguan Niasi plastics machinery Co., Ltd.

2 year

Product details

Volumetric Doser is a type of dosing system that measures and dispenses materials based on their volume rather than weight. Unlike gravimetric systems, which measure weight loss, volumetric dosers rely on accurate volume control mechanisms to ensure precise and consistent dosing of ingredients or materials. This system is commonly used in industries where material density is consistent and does not fluctuate significantly, such as in the food, plastics, and chemical industries. The Volumetric Doser provides a cost-effective solution for applications that do not require the high precision of weight-based systems but still require reliable and repeatable dosing results. It is an ideal choice for medium to large-scale production processes where efficiency and reliability are essential.

Product Description：

It is suitable for automatic proportional feeding of new and secondary materials, masterbatches or additives in plastic molding production. This series of models adopts precision DC brushless motor, according to the pre-set addition ratio and slave parameters, the full digital microcomputer control system will automatically convert the set conditions into speed, through the coupling drive stainless steel 304 precision metering screw, to the injection molding machine or extruded sol cylinder to spit out the need to add materials. There are two color, three color, four color mother machine, according to user needs, to meet the different use of different occasions and fields.

Product characteristics Dc brushless motor, no maintenance, with screw card, voltage undervoltage, overvoltage, line break protection, to ensure the continuous normal operation of the machine. The controller has a permanent memory and storage function of 50 sets of data for easy management of molding conditions and formulations.

Can meet the injection molding machine dry contact and voltage, extruder 0-5V, 0-10V, 4-20MA, 0-20MA, frequency, digital and other signal input, almost covers all plastic molding equipment plasticizing signals. Modular assembly structure, easy disassembly, quick replacement of materials. Optional material level detection sensor, lack of material alarm. Mixing base is optional to ensure uniform mixing of materials.

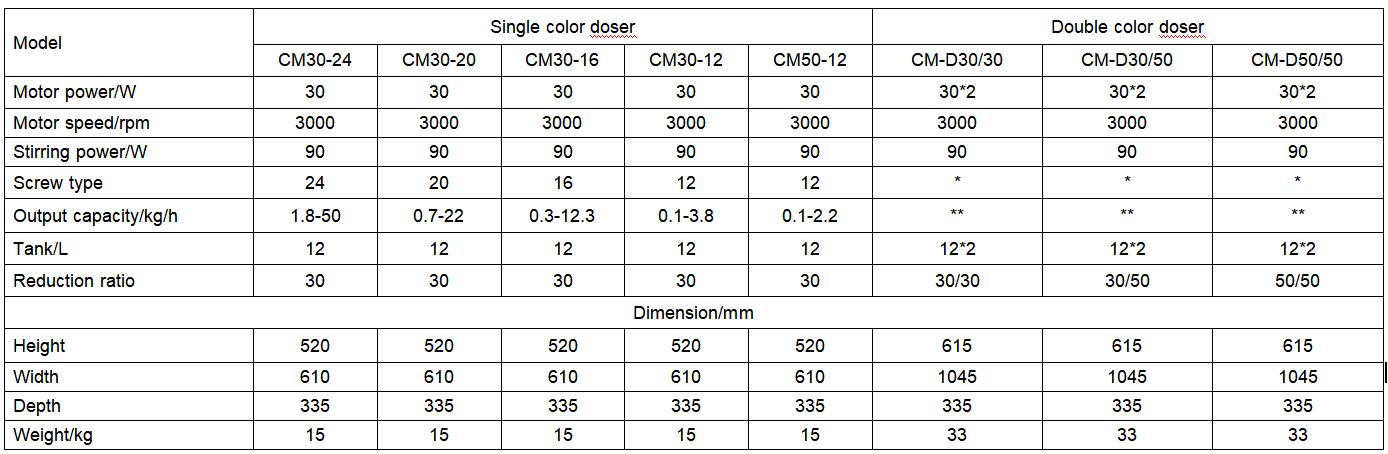

Product Parameters：
