IM-S490 Skid steer loader

12 month ago

15 0 

2 year

Product details

IM-S490 Products Description

This remarkable machine features a compact overall size, enabling it to perform in-situ steering with ease. Its design allows for the swift and effortless replacement or

attachment of diverse work devices directly at the worksite, enhancing operational flexibility. Equipped with a wheeled walking mechanism and all-wheel drive, the skid

steer loader demonstrates excellent mobility and adaptability. It is particularly well-suited for confined work areas, uneven terrains, and situations where work require-

ments change frequently. Moreover, it serves as an invaluable auxiliary equipment for large-scale construction machinery, further expanding its range of applications

and utility.

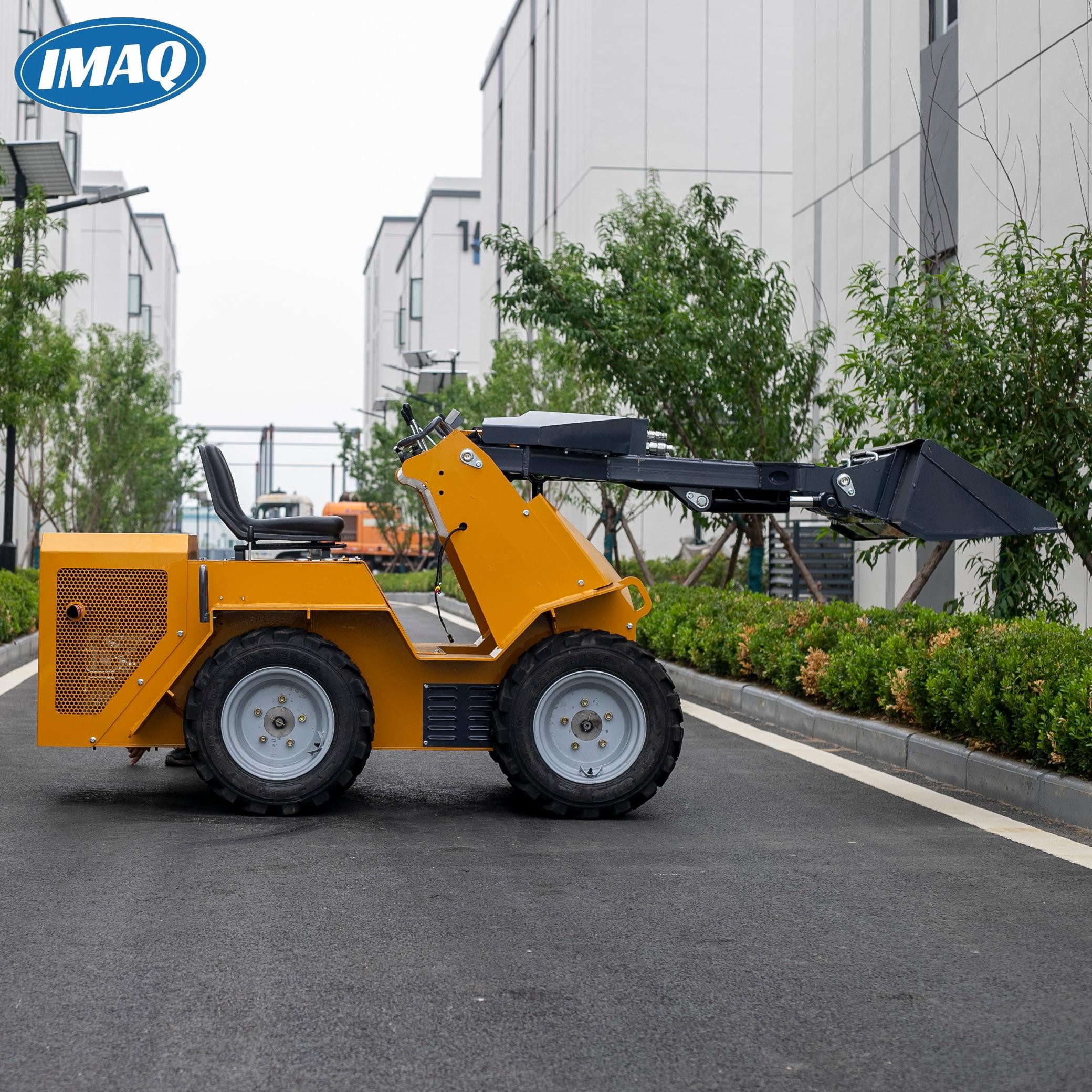

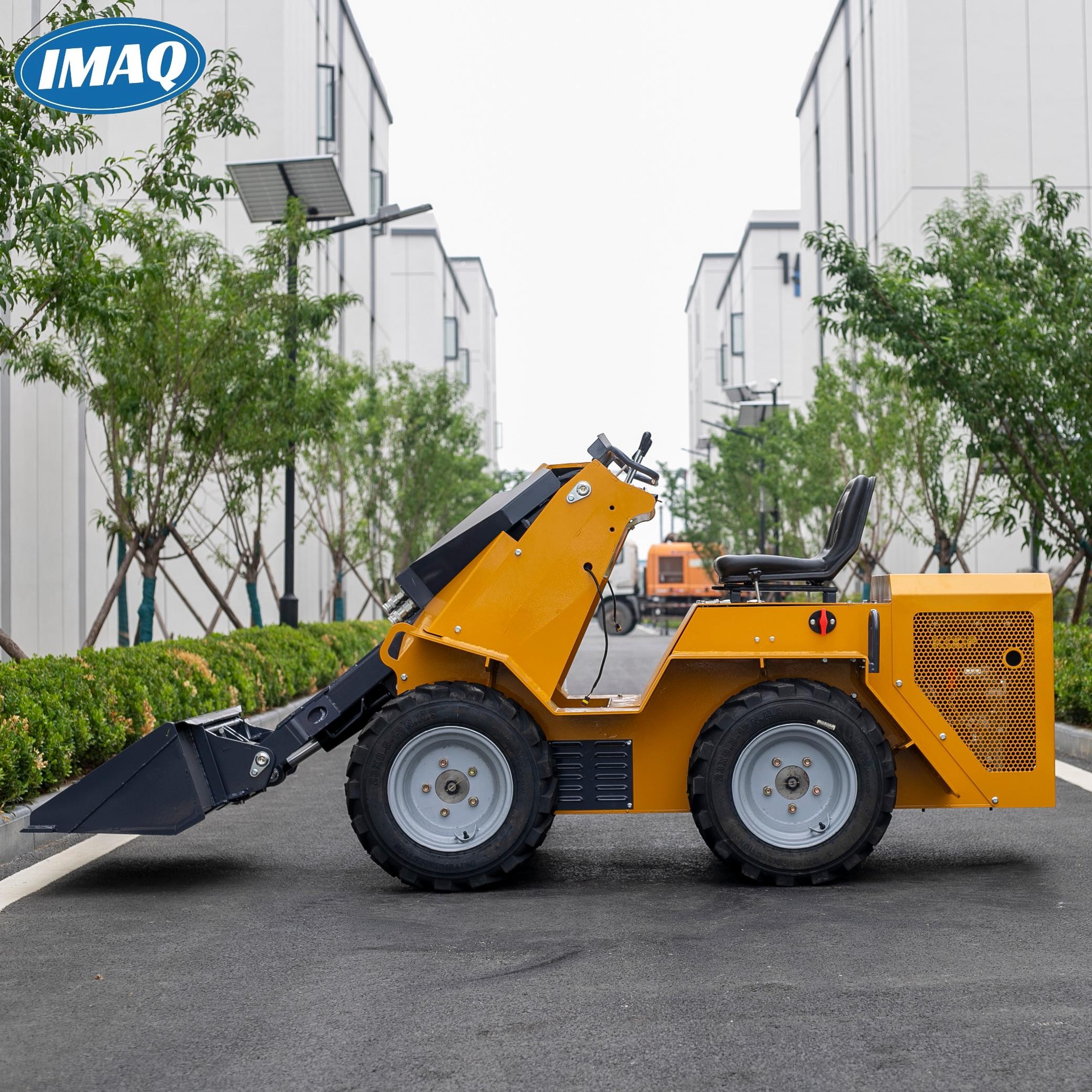

Products Pictures

Product Parameters

Engine Brand	KOOP/Briggs&Stratton
Rated Power	15HP
Numberof cylinders	2
Air intake way	Naturally Aspirated
Emissions Standards	EURO5/EPA
Rated Operating Capacity	250Kg
Maximum Operating Capacity	350Kg
Maximum BreakoutForce	450KN
Bucket Capacity	0.12m鲁
Driving Speed	0-6km/h
Total Cycling Time	9s
System Operating Pressure	17-21bar
Fuel Tank Capcity	10L
Operating Weight	1200KG
Tyre Size	18*8.5-8
Height at Maximum Extension	2514mm
Height To the the bucket pin	1933mm
Vehicle height	1872mm
Maximum Height as Lay the bucket flat	2100mm
Total length without appendages	2000mm
Length With standard bucke	2644mm
Dumping Height	1429mm
Discharge Distance	595mm
The flip Angle of the bucket on the ground	27°
Bucket flip Angle at highest Pos.	34°
Wheel Base	925mm
Ground Clearance	195mm
TailLength	500mm
Vehicle width (standard tire	1089mm
Bucket width	1050mm
