Energy Saving Ceramic Anilox Roller Cleaning Brush Machine

5 month ago
8 0
Product details

corrugated machine

Product Description



Our cotton fabric conveyor belt, specifically tailored for corrugated cardboard production, now features a remarkable 7.8% improvement in water absorption and breathability. This innovative enhancement ensures superior performance in environments where moisture management is critical, maintaining the integrity and quality of the cardboard being processed.

The belt's core is crafted from high-quality cotton fibers known for their durability and flexibility, while the newly integrated treatment significantly boosts its ability to manage moisture. This not only aids in the prevention of moisture-related issues such as warping or damp spots on the cardboard but also contributes to a more hygienic and stable production environment.

Additionally, our conveyor belt comes with reinforced 200mm edges on both sides. This design strengthens the belt's structural integrity, providing extra durability and resistance to wear and tear in high-stress areas. The reinforced edges also help maintain the belt's alignment and tension, further reducing the risk of misfeeds and production disruptions.

Compatible with a wide array of corrugated cardboard production machinery, our enhanced cotton fabric conveyor belt is engineered to optimize your production line for maximum efficiency, reliability, and cost-effectiveness. With its improved moisture management capabilities and reinforced edges, it's the perfect solution for manufacturers striving to elevate their production standards. Trust in our conveyor belt to keep your corrugated cardboard production running smoothly, efficiently, and with unparalleled quality.



double facer belt

corrugated belt for paper machine
WHY CHOOSE US?

1,The first domestic machine capable of producing a conveyor belt with a large width of 3300 mm

2,Obtained a patent for the anti-collision edge

3The unique Company participating in the domestic industry standard customization of conveyor belts

4,The surface of the conveyor belt is made of Austrian imported Tencel, which improves water absorption and air permeability by 7.8%

5,Under normal circumstances ,it can be used for 80million meters or more Corrugated Paper Conveyor Belt



MODEL-FCH EDGE REINFORCEMEN
FCH-FZ
KEVLAR EDGE REINFORCEMEN
FCH-JQ
TRACION BELT
FCH-QY
NEIGHT KG/M2 7.5 7.5 3
THICKNESS mm 9.1±0.3 9.1±0.3 6±0.5
WIDTH mm 1400-3300 1400-3300 400-1400
THERMAL ENDURANCEºC 200ºC 200ºC 150ºC
FRICTION FACTOR 0.45 0.42 0.38
BREAKING STRENGTH KG/M 30000 32000 10500
MOISTURE ABSORPTION /RELEASE RATIO 129% 120% ----
STEAM LM2-H 6.560 6.051 ----
FLEXIBILITY TRANSVERSE 0.96%/180ºC 0.93%/180ºC ----
FLEXIBILITY LONGITUDINAL 0.68%/180ºC 0.63%/180ºC ----
corrugated belt
Edge Reinforcement Conveyor Belt
Two Options For Joint, Flock Coating Or Hot Melt Glue
The joint made by the Hot Melt Glue curing process of high temperature resistant colloid can not only protect the steel buckle well, but also be firm and durable. It also ensures that the deviation between joint height and the belt surface is less than 0.2mm, which greatly reduces the cardboard production process Waste. It also solve the impact of indentation on cardboard printing

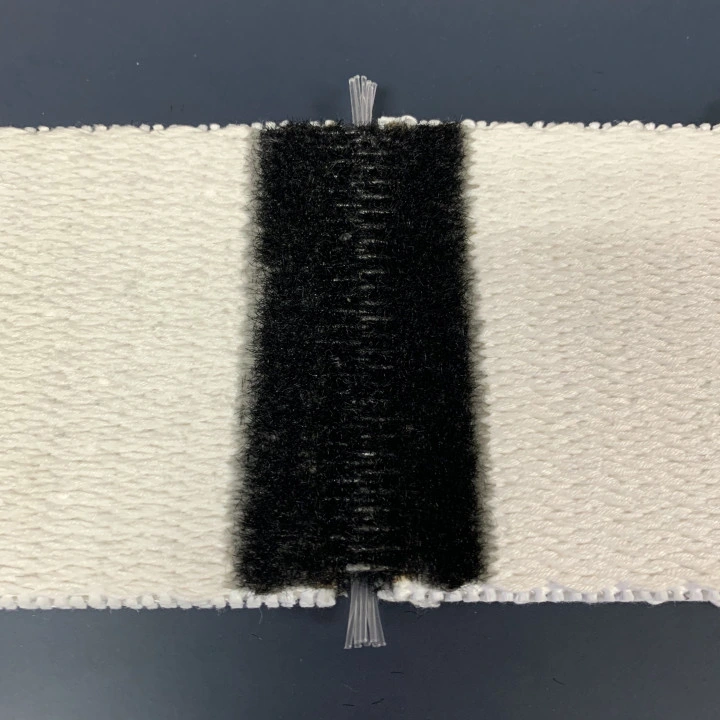

For E flute corrugated cardboard, flock coating joint is recommened.
Imported flocking glue is used, which is not easy to shed and is firm

double facer belt corrugated

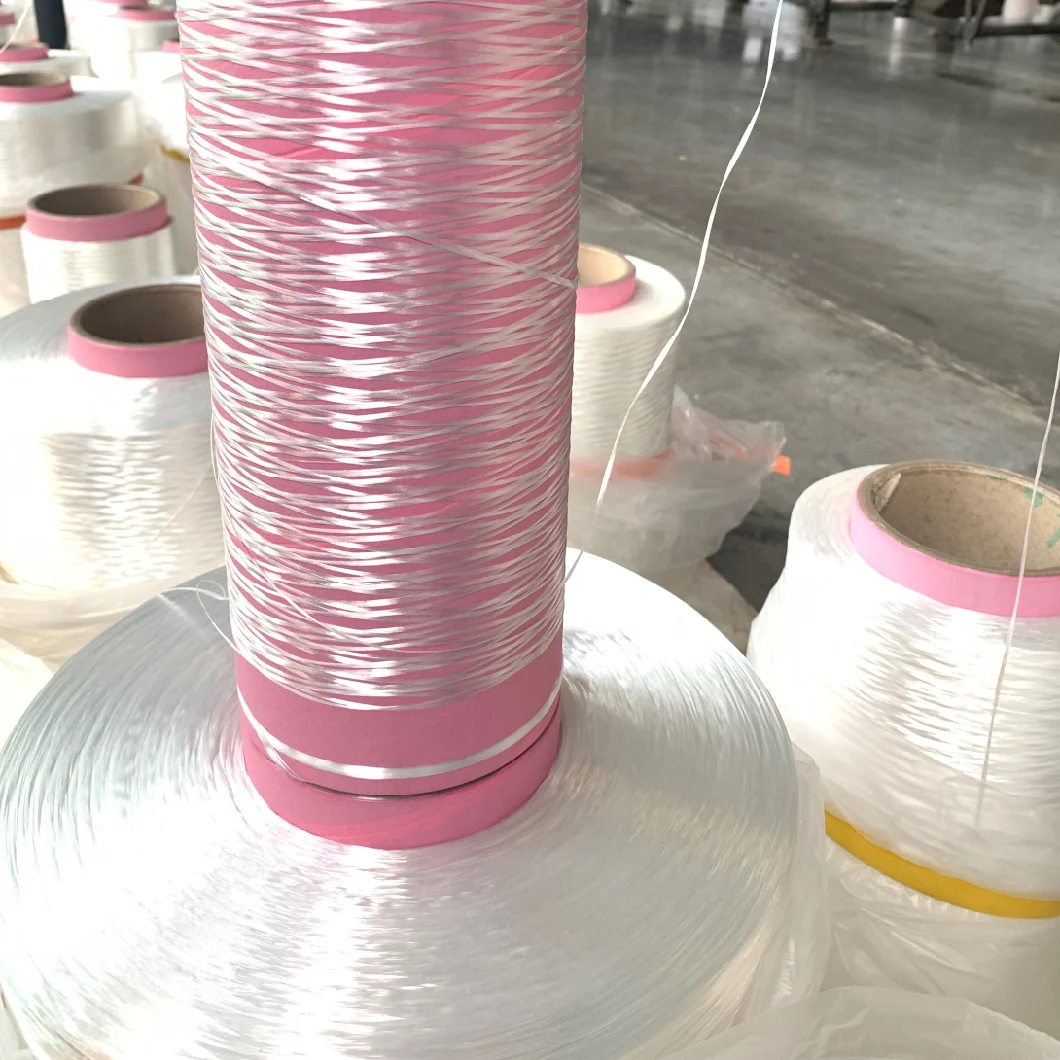

Apply polyester filament in the middle of the belt to make the belt not deformed . The longitudinal shrinkage rate of the belt is 0.9%

conveyor belt for double facer

bhsfosberisowa

FAQ



Q1: How long is the liftime of the conveyor belt?
A: Under normal circumstances (not operational error or mechanical failure), it can be used for 80million meters or more.

Q2: How about the fastest trial speed?
A: 330m/min.

Q3: Lead time?
A: Generally, 30-45 days. If the customer needs urgently, the lead time can be shortened.

Q4: Why is the price not the lowest among the industry?
A: The product process is different. Our factory has participated in the formulation of national standards, and the product hasobtained a patent for collision avoidance.

Q5: What corrugated cardboard production line has our conveyor belt used?
A: Suitable for BHS MARQUIP MITSUTBISHI ISOWA MINGWEI FULI AGNATI and ect
