Product details

Polyester Cotton Corrugated Woven Conveyor Traction Belt for Corrugation Cardboard Machine

Woven Bridge Crossing Belt(Traction Belt)

Knitting process: multi-layer single file

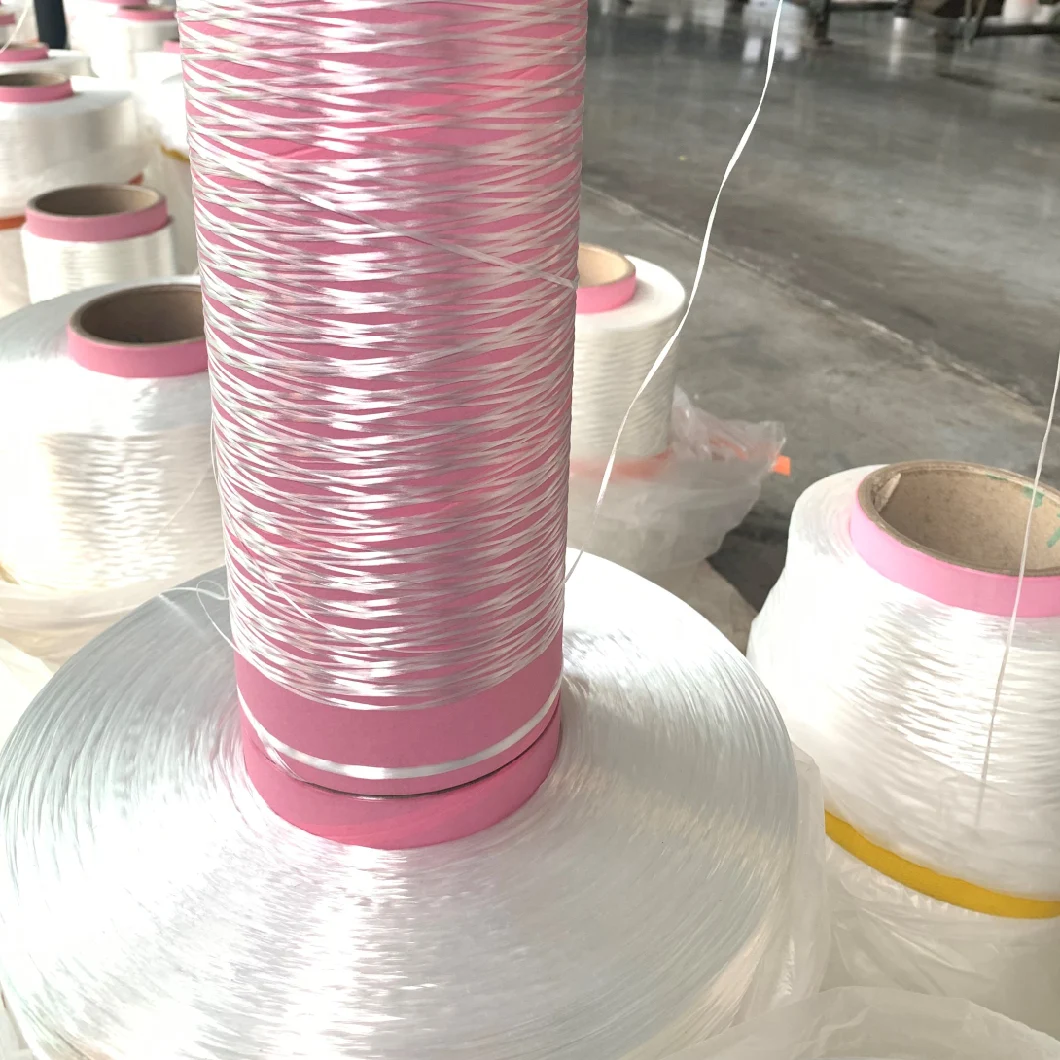

Material: polyester yarn, polyester filament
Features: weaving clear lines, neat edges, dimensional stability, heat resistance, anti-static, traction excellent,
Surface and seams are uniformly sealed. Excellent absorbability, dryness and anti-static properties enable perfect and efficient transportation of corrugated cardboard on the production line
Service life: 80 million meters under laboratory test conditions

MODEL-FCH	EDGE REINFORCEMEN FCH-FZ	KEVLAR EDGE REINFORCEMEN FCH-JQ	TRACION BELT FCH-QY
NEIGHT KG/M2	7.5	7.5	3
THICKNESS mm	9.1±0.3	9.1±0.3	6±0.5
WIDTH mm	1400-3300	1400-3300	400-1400
THERMAL ENDURANCEºC	200ºC	200ºC	150ºC
FRICTION FACTOR	0.45	0.42	0.38
BREAKING STRENGTH KG/M	30000	32000	10500
MOISTURE ABSORPTION /RELEASE RATIO	129%	120%	----
STEAM LM2-H	6.560	6.051	----
FLEXIBILITY TRANSVERSE	0.96%/180ºC	0.93%/180ºC	----
FLEXIBILITY LONGITUDINAL	0.68%/180ºC	0.63%/180ºC	----

Suitable for BHS, MARQUIP, MITSUTBISHI, ISOWA, MINGWEI, FULI, AGNATI, etc

WHY CHOOSE US?

1,The first domestic machine capable of producing a conveyor belt with a large width of 3300 mm

2,Obtained a patent for the anti-collision edge

3The unique Company participating in the domestic industry standard customization of conveyor belts

4,The surface of the conveyor belt is made of Austrian imported Tencel, which improves water absorption and air permeability by 7.8%

5,Under normal circumstances ,it can be used for 80million meters or more

Two Options For Joint, Flock Coating Or Hot Melt Glue

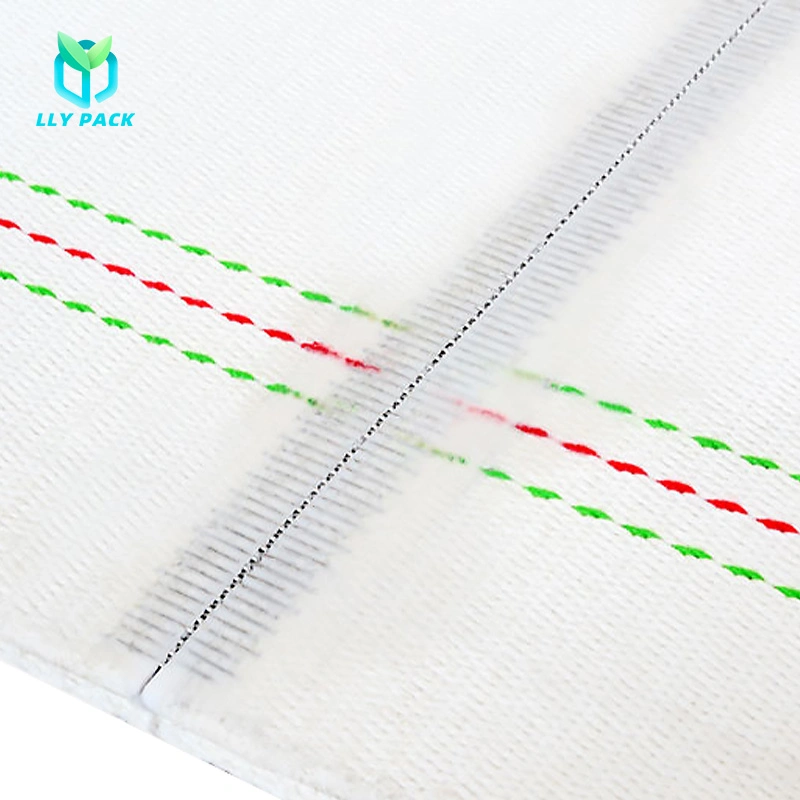

The joint made by the Hot Melt Glue curing process of high temperature resistant colloid can not only protect the steel buckle well, but also be firm and durable. It also ensures that the deviation between joint height and the belt surface is less than 0.2mm, which greatly reduces the cardboard production process Waste. It also solve the impact of indentation on cardboard printing

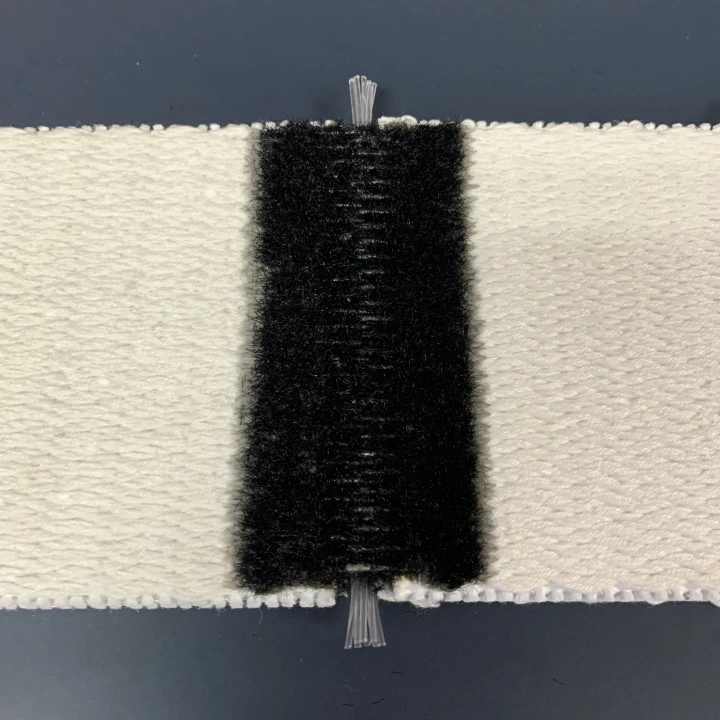

For E flute corrugated cardboard, flock coating joint is recommened.
Imported flocking glue is used, which is not easy to shed and is firm

Apply polyester filament in the middle of the belt to make the belt not deformed . The longitudinal shrinkage rate of the belt is 0.9%

Edge Reinforcement Conveyor Belt for Paper Cardboard Machine

Q1: How long is the liftime of the conveyor belt?
A: Under normal circumstances (not operational error or mechanical failure), it can be used for 80million meters or more.

Q2: How about the fastest trial speed?
A: 330m/min.

Q3: Lead time?
A: Generally, 30-45 days. If the customer needs urgently, the lead time can be shortened.

Q4: Why is the price not the lowest among the industry?
A: The product process is different. Our factory has participated in the formulation of national standards, and the product hasobtained a patent for collision avoidance.

Q5: What corrugated cardboard production line has our conveyor belt used?
A: Suitable for BHS MARQUIP MITSUTBISHI ISOWA MINGWEI FULI AGNATI and ect
