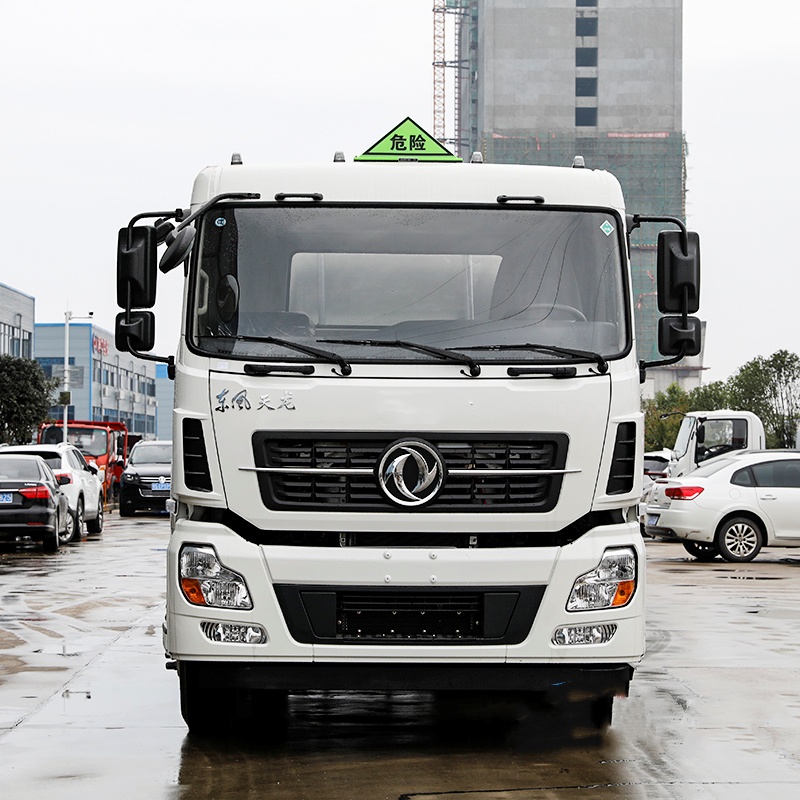

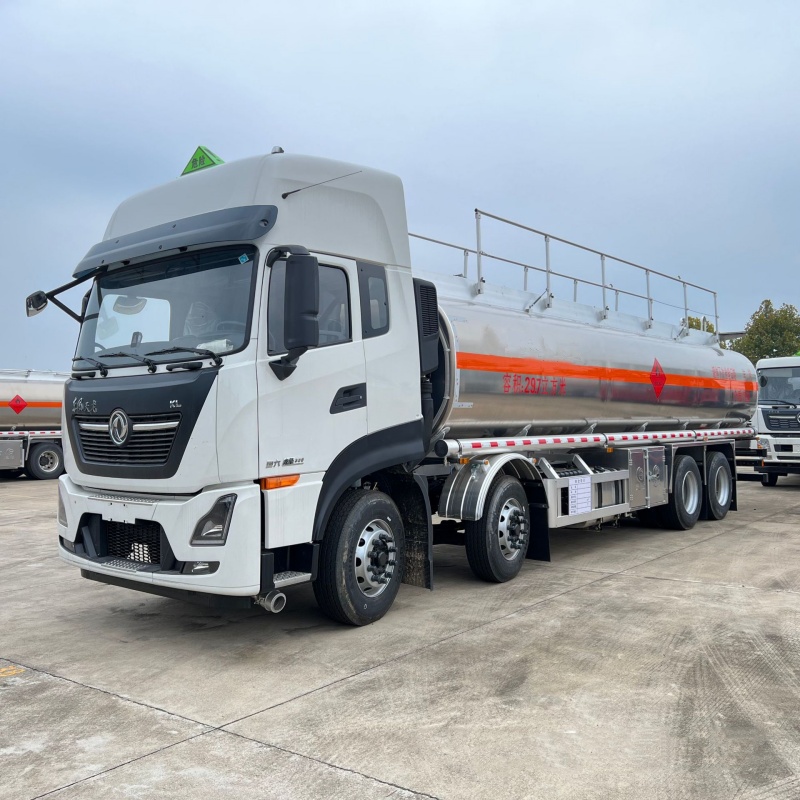

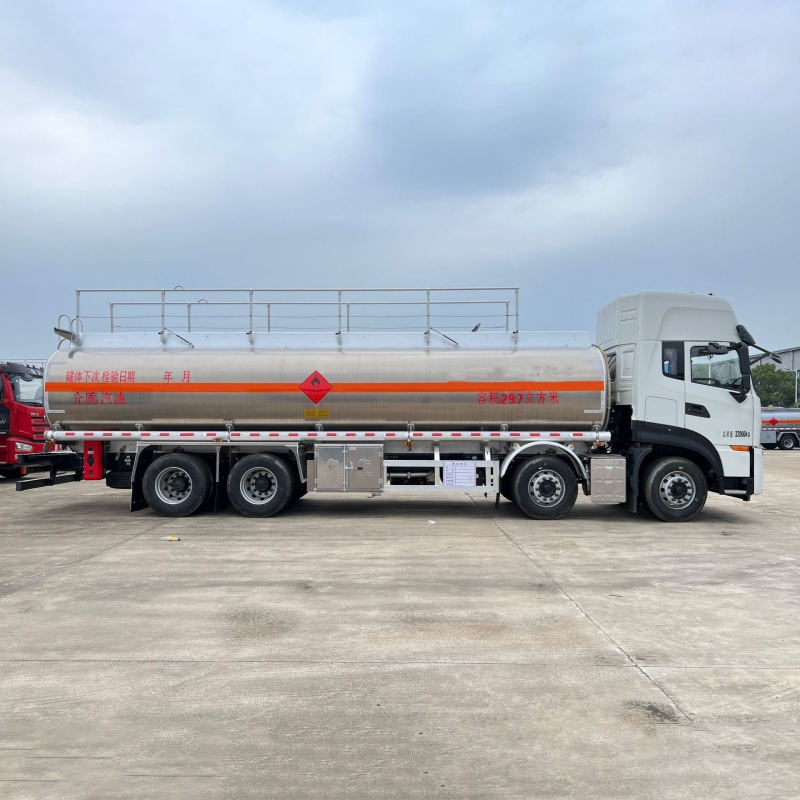

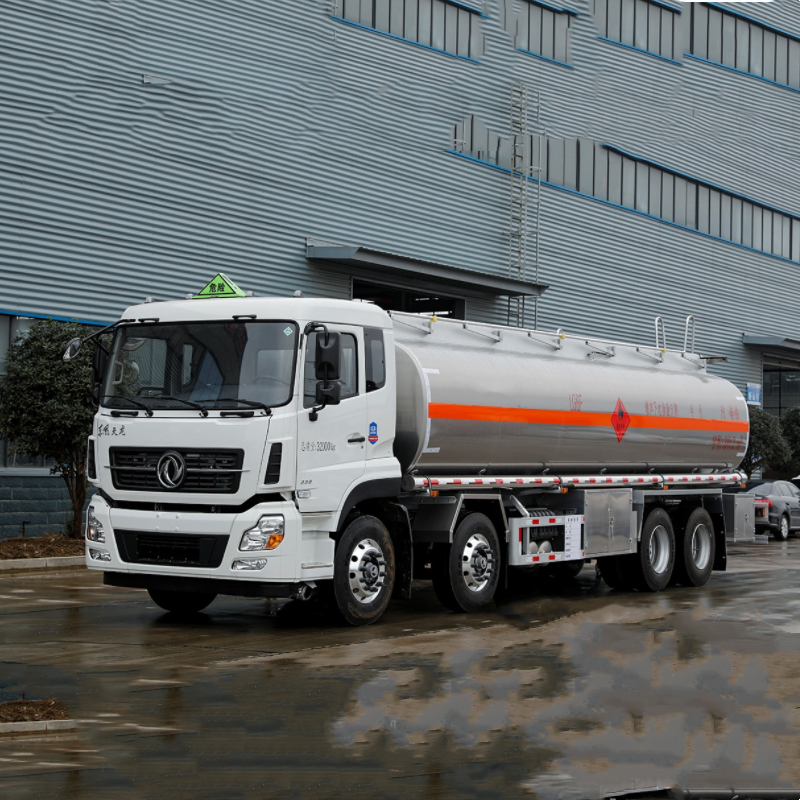

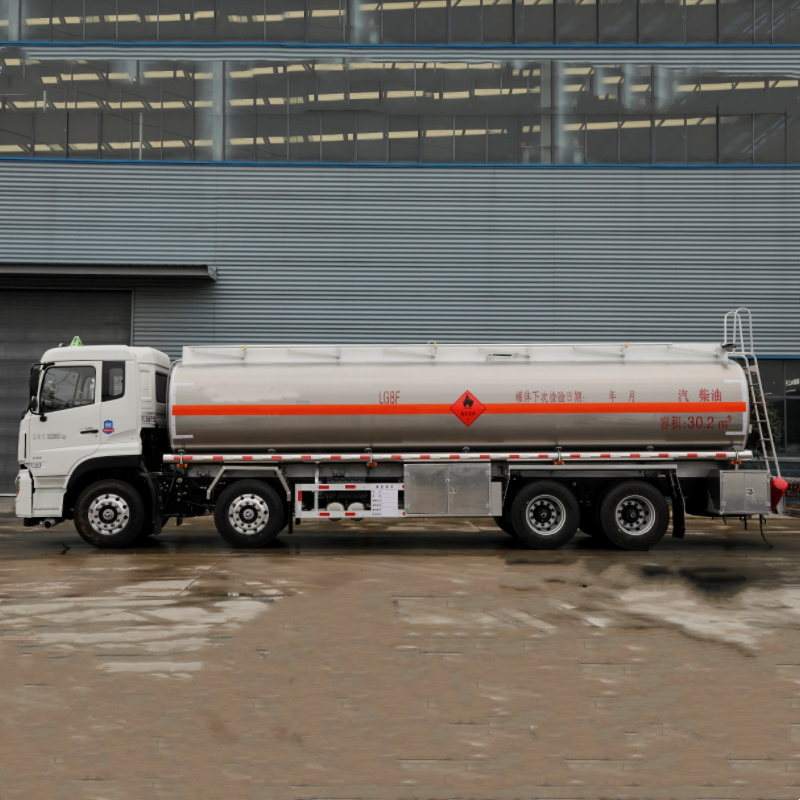

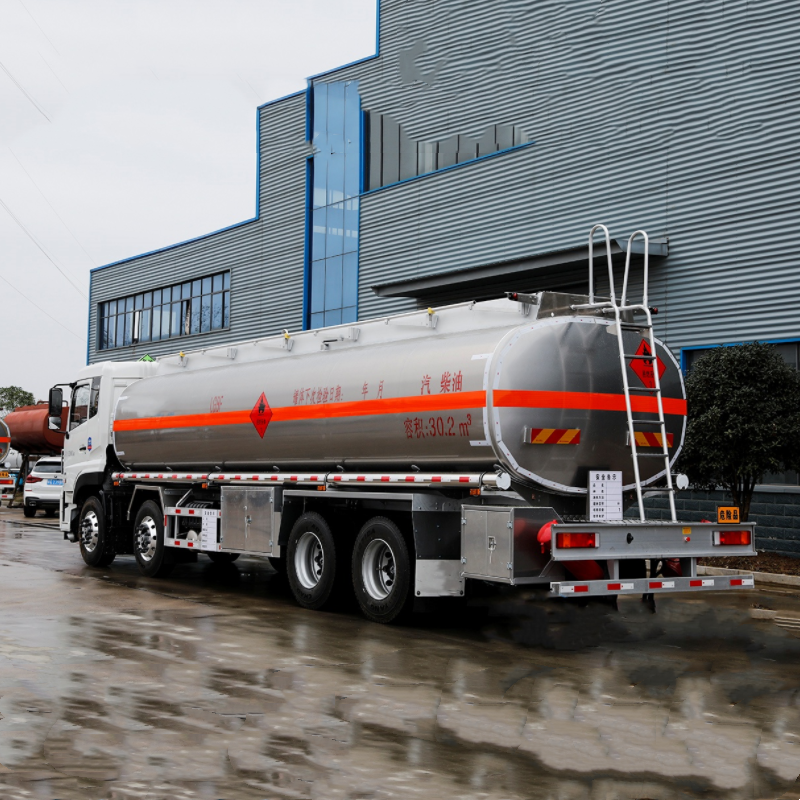

Dongfeng Tianlong 25 ton oil tanker

10 month ago

37 0 

Hubei Ocean Automobile Industry Co., Ltd.

12 month

Product details

Chassis Configuration: Dongfeng Tianlong KL-D320 cab, DDi75E350-60, Longqing 350 horsepower engine,

Fast 9-speed gearbox, front axle 5T/rear axle 11T, optional wheelbase 1995+3200mm+1350mm,

1995+3800mm+1350mm, speed ratio 4.44, 295/80R22.5 18PR vacuum tire, with original air conditioning, ABS,

central control door lock, electric glass.

Upper configuration: effective volume of tank 25.1 square or 21.6 square, tank material food grade special plate,

optional food grade stainless steel or food grade aluminum alloy, tank thickness depends on the material,

with two ordinary stainless steel tank mouth,( 67885756,optional stainless steel pump), pipe ball valve outlet for stainless steel,

all contact with liquid are stainless steel, all accessories (ladder, barrel, side protection, rear bumper,

pump box, tool box) for carbon steel material, other according to the factory standard.

Thickness 6mm thick, with 80-80 pump, can be divided into bins or not, when two bins are equally divided,

two bins can be interconnected or single, with two sets of European standard (Two European standard tank ports with double breathing valves,

two submarine valves, two lower oil loading, two exhaust gas recovery sharing a joint, two anti-overflow probes and sockets),

lower oil loading and pump inlet and outlet installed on the co-pilot side, equipped with AUCO brand submarine valve automatic closing system,

full welding at the front end of gun barrel with oil dripping holes, with triangular ceiling lamp, with electrostatic reel,

a tool box installed on the front driving side opposite to the lower oil tank (consistent with the announcement picture),

with folding guardrail, the rest made according to aluminum tank standards, Equipped with a fire cap two and tank length of oil pipes,

two 8KG fire extinguishers, iron fire extinguisher cylinder, the rest of the factory standard.

The vehicle is a non-dangerous goods transport vehicle.

Transport media: edible oil, gasoline, diesel.
