SV144
4 year ago

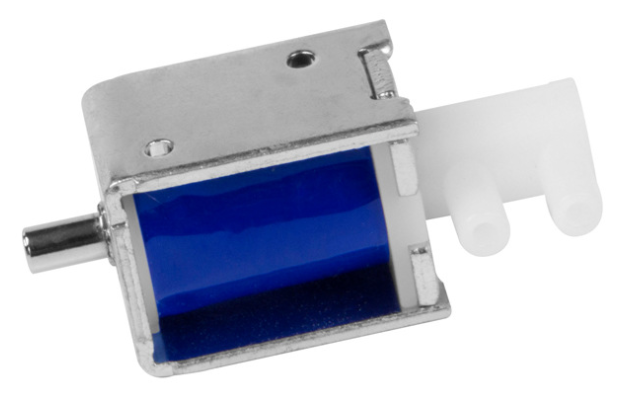

3 Way Mini Solenoid Valve 6V 12V 24V
Miniature Solenoid Valves Application Examples:
1. Medical Equipments: Blood Pressure Monitor, Air Pressure Massage, Patient Monitor, etc.
2. Massage Health Care Equipments: Foot Massage, Massage Chair, Head and Eye Massage, Massage Bed, etc.
3. Household Appliances: Anti-snore Apparatus, Memory Pillow, Coffee Machine, Water Purifier, etc.
4. Other Applications: Kitchen and Bathroom Parts, Body Beauty Cares, Gas Detection and Analysis, Agricultural Application, and Scent Diffuse Machine, etc.

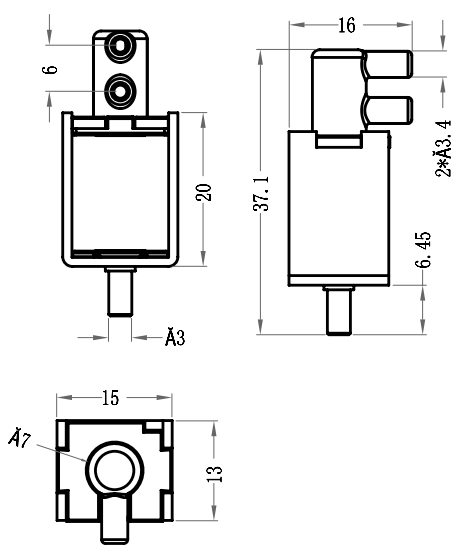

Dimension and Data of Miniature Solenoid Valves:
 |
 |
 |
| Model |
Rated Voltage |
Working Current |
Power Consumption |
Working Voltage Range |
DC Resistance |
Leakage | Exhaust Speed | Service Life |
| SV144-3.5 | 3.5 |
≤280 |
≤0.98 |
3-4V | 15±2 | ≤15mmHg / Min | 500CC /＜6S | ≥180000 |
| SV144-4.5 | 4.5 |
≤250 |
≤1.125 |
3.5-5.0V |
20±10% |
≤15mmHg / Min |
500CC /＜6S |
≥180000 |
|
SV144-6 |
6 |
≤200 |
≤1.2 |
4.8-7.2V |
36±10% |
≤15mmHg / Min |
500CC /＜6S |
≥180000 |
|
SV144-12 |
12 |
≤117 |
≤1.404 |
10.8-13.2V |
150±40% |
≤15mmHg / Min |
500CC /＜6S |
≥180000 |
| SV144-24 | 24 |
≤100 |
≤2.4 |
20.5-25.2V |
615±10% |
≤15mmHg / Min |
500CC /＜6S |
≥180000 |
Brando Solenoid Valve Factory Production Video:
More Miniature Plastic Solenoid Valves for you to choose:
| 2 Way Miniature Solenoid Valve | |||
|
|
|
|
|
|
|
|
| 3 Way Miniature Solenoid Valve | ||
|
|
|
|
|
|
| Combination | ||
|
|
 |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
