Alpha 600 Automatic Grinder and Polisher

9 month ago
98 0
Product details

Grinding and polishing surfaces.Provide central force and individual force for the specimens. Optional peristaltic pump dosing system support max. 4 kinds of suspensions/lubricants. High repeatability results can be obtained conveniently and quickly.Lapping and polishing machines are designed for harsh production laboratory environments. Suitable for manual or automatic sample preparation, its simple and flexible operation allows users to easily respond to a variety of application requirements. The durable structure is designed to improve durability in heavy use environments, while its unique quick cleaning and rich operation functions improve user convenience.


Alpha-600 is an automatic grinding and polishing machine with compact designed especially for high quality grinding and polishing surfaces needs. The maximum diameter of the grinding dics is as large as 300mm. There are two types of pressurization, central pressure and individual pressure. 1 to 4 groups of dosing system are optional. The machine can set & save 20 groups of commonly used grinding programs. It is convenient and quick to obtain high-quality mirror polishing results with high repeatability.


Convenient and easy operate on 5.6”touch screen;

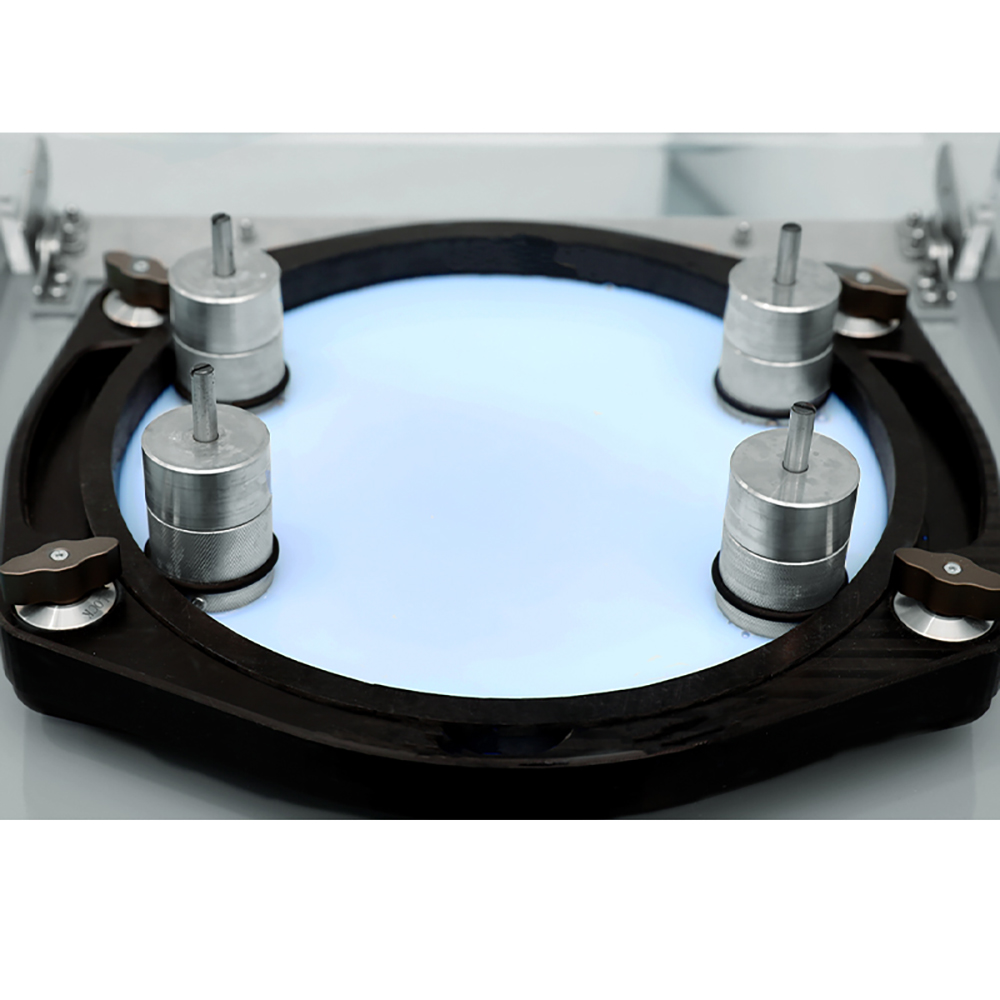

Both Central and individual pressure can be achieved;
Electrical connections for 4 groups of dosing/stirring system;
Contains 21 groups of commonly used grinding programs ,custom
ized programs also can be saved;
Large diameter of drain hose;

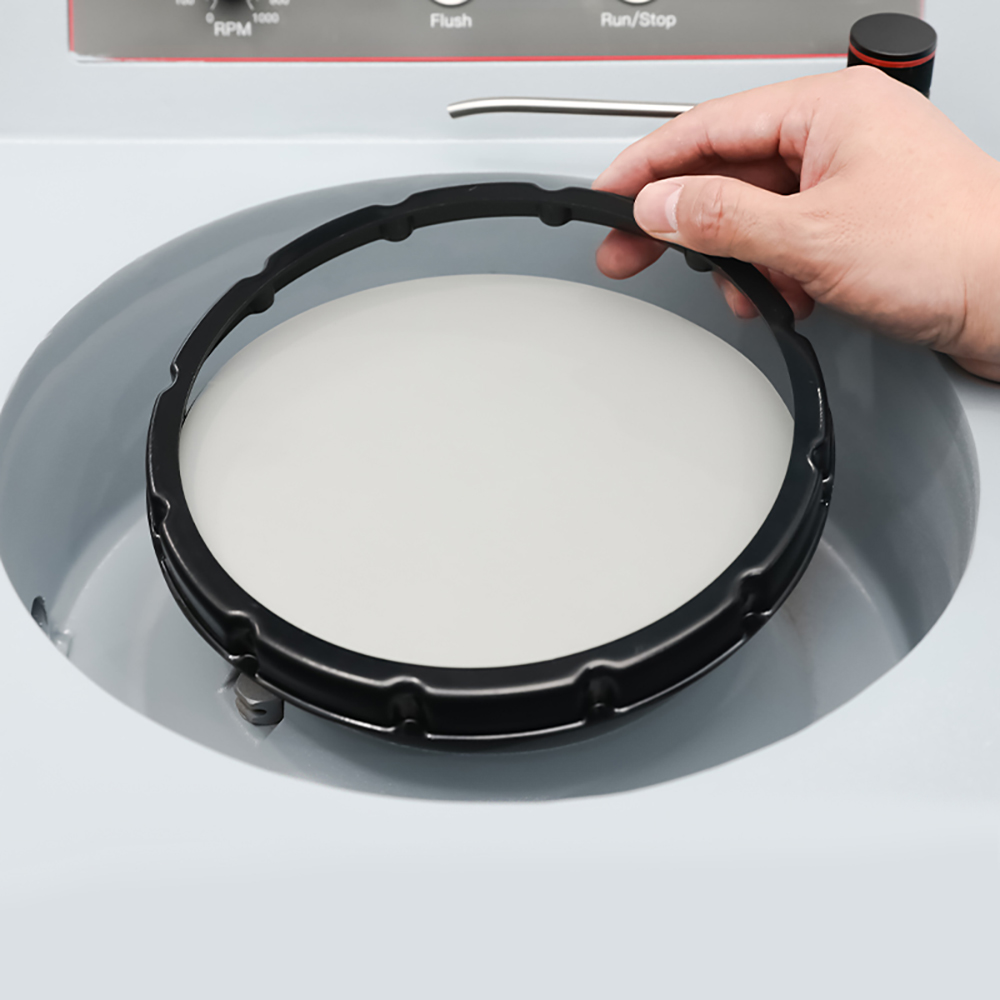

Replaceable wheel design makes easy to clean and maintenance;
The automatic temperature-sensing cooling fan, can reduce failure
rate and improve working life;

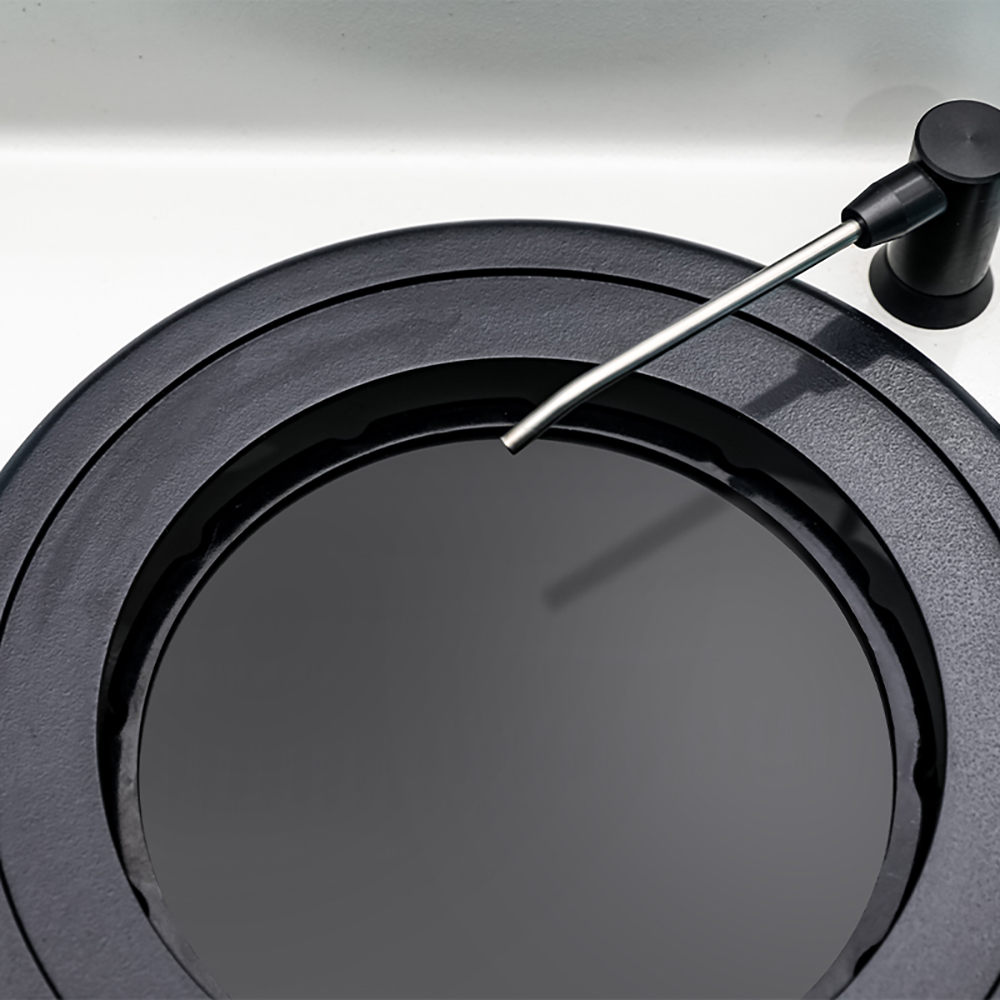

Retractable water spout.

Metallographic Polishing Cloth

Metallographic Polishing Fluid

Metallographic Polishing Paste

Metallographic Polish

Metallographic Grinding Plate

Force Application

Central and Individual

Central Force

20-500N

Individual Force

5-100N

Power

400W

Speed

20~150rpm

Direction

CCW

Speed

50-750rpm

Wheel Diameter


8”-10’’-12”(200/250/300mm)

Direction

CW/CCW

Pump

Max. flow: 52ml/min

Pump numbers

With 2 stirring motors

Individual pressure

6x50mm

Central pressure

6xΦ50mm,8xΦ40mm,10xΦ30mm(Customized)

Temperature

-20˚C - 60˚C

Humdity

0-95%RH

WxDxH

730x660x630mm

Weight

80kg



Lab Polishing Machine 5 JpgMetallography 3 JpgMetallography 2 JpgMetallography 1 Jpg


Alpha 600 Automatic Grinder PolisherAlpha 600 Automatic Grinder PolisherAlpha 600 Automatic Grinder Polisher
