Goyen Type CA35T Right Anglel Pulse Jet Valve
The Goyen Type CA35T is a right angle pulse valve,and the T series pulse jet valve is a diaphragm valve whose inlet and outlet are at right angles and are directly controlled by electrical signals. The function of the pulse valve is to control the oil pressure in the oil circuit. It is generally installed in the main oil circuit or the back pressure oil circuit of the shock absorber, so as to reduce the oil pressure impact during gear shifting and lock unlocking and keep the equipment running in a stable state.
Specification of Dust Extractor Dust Collector Pulse Valve:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Working pressure
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
|||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||

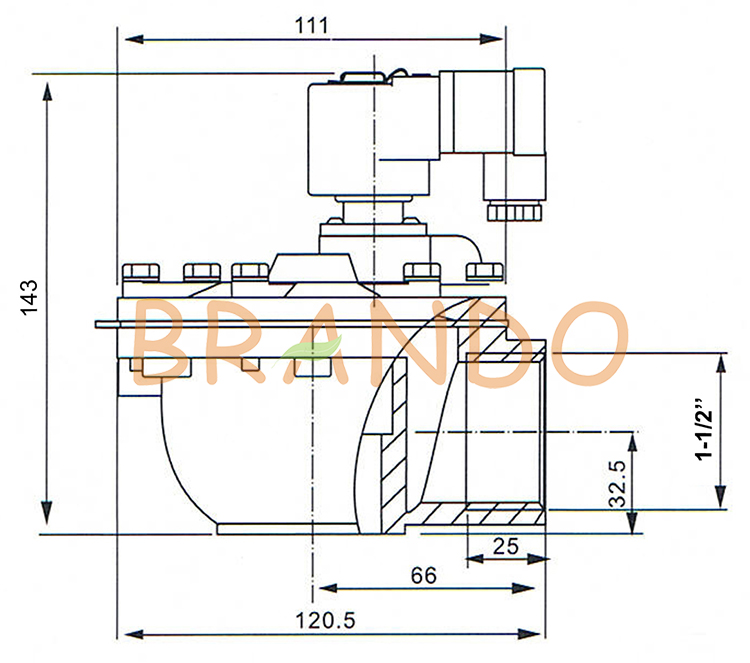

Main Dimension of CA35T Solenoid Pulse Jet Valve:
More Goyen Type Solenoid Pulse valve for you to choose:
T Series
DD Series
FS Series
MM Series
RCA Series
Solenoid Coil
solenoid armature
Diaphragm
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
