Goyen Type CA25DD Dresser Nut Pulse Jet Valve
DD series pulse jet valve is with double head inlet and outlet air port. High performance diaphragm valve with dresser nut ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet. Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.

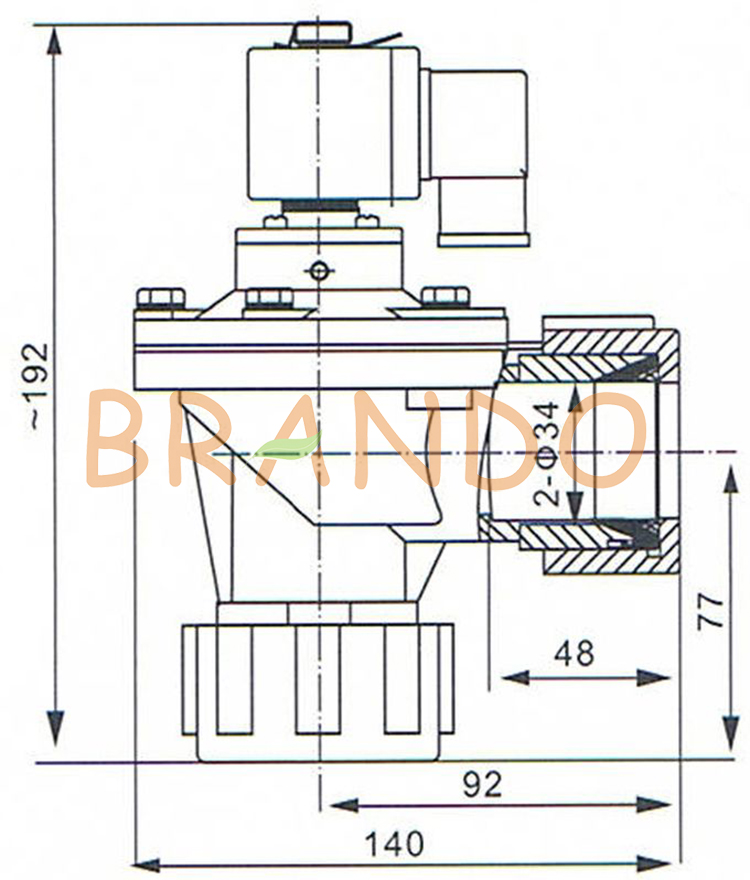

Main Dimension of CA25DD Solenoid Pulse Jet Valve:

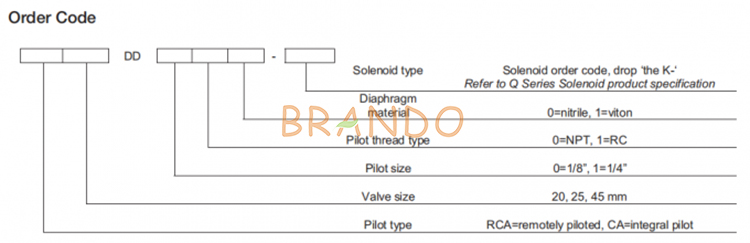

Ordering Code of DD Series Dresser Nut Pulse Jet Valve:
Specification of DD Seires Pulse Jet Valve:
|
Model No
|
CA20DD
|
CA25DD
|
CA45DD
|
|
Port Size
|
3/4''
|
1''
|
1 1/2''
|
|
Pipe Connection
|
Dresser Nut
|
||
|
Diaphragm Number
|
1
|
1
|
2
|
|
Working Pressure Range
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
||
|
Valve Body Material
|
Aluminum Alloy
|
||
More Goyen Type Solenoid Pulse valve for you to choose:
T Series
DD Series
FS Series
MM Series
RCA Series
Solenoid Coil
solenoid armature
Diaphragm
