2S350-35 1-1/4'' Stainless Steel Solenoid Valve
5 year ago
2S350-35 1-1/4'' Stainless Steel Solenoid Valves For Water
The Stainless Steel Solenoid valve has 1-1/4” Female thread ports. This is a 2 way normally closed valve that will hold its closed position and open only when power is applied. It is gravity feed capable and requires no pressure to open. This is a fast acting solenoid valve that will change position in less than 1 second. This particular valve is compatible with a variety of media types including air, water, gas and other low viscosity fluids. The valve can be used media temperatures ranging from -5℃ up to 80℃. The recommend pressure range is from 0bar to 7bar. The orifice size is 35mm and the flow rate can be calculated using a Cv of 24.
The valve body is made of 304 Stainless Steel and it uses a NBR Diaphragm. These materials are food grade and this valve can be used for food, beverage and potable water applications.
The coil has no polarity making power and ground interchangeable. There is an arrow indicating the direction of flow on the stainless valve body. Installed with the coil up is the preferred method however the valve will operate in any position. A pre-filter should be installed to prevent the valve from leaking caused by debris.
YouTube video of Uni-D type 1 1/4'' Stainless Steel 304 Electric Solenoid Valve:

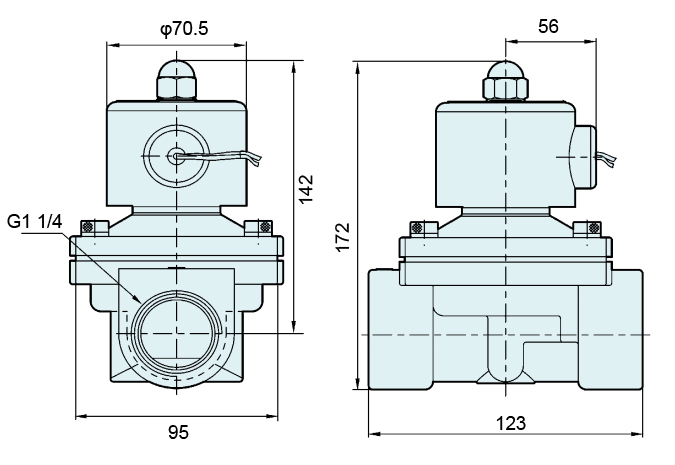

Main dimension of 1-1/4'' SUW-35 Uni-D Type Normally Closed Solenoid Valve:
Technical data of 2S, SUS & SUW Series NC UNI-D Type Electromagnetic Valve:
Operating Pressure
kgf/ cm² (bar)
2S Series
Uni-D Type
PIPE SIZE
CV
ORIFICE
FLUID TEMP. (°C)
Water
Air
Light oil
2S025-06
SUS-6
1/8''
0.23
2.5mm
-5°C- +80°C
0-7
0-7
0-7
2S025-08
SUS-8
1/4''
0.23
2.5mm
-5°C- +80°C
0-7
0-7
0-7
2S040-10
SUS-10
3/8''
0.58
4mm
-5°C- +80°C
0-7
0-7
0-7
2S160-10
SUW-10
3/8"
4.5
15mm
-5°C- +80°C
0-5
0-7
0-5
2S160-15
SUW-15
1/2''
4.5
15mm
-5°C - +80°C
0-5
0-7
0-5
2S200-20
SUW-20
3/4"
8.6
20mm
-5°C- +80°C
0-5
0-7
0-5
2S250-25
SUW-25
1"
12
25mm
-5°C- +80°C
0-5
0-7
0-5
2S350-35
SUW-35
1-1/4"
24
35mm
-5°C- +80°C
0-5
0-7
0-5
2S400-40
SUW-40
1-1/2"
28
40mm
-5°C - +80°C
0-5
0-7
0-5
2S500-50
SUW-50
2"
48
50mm
-5°C - +80°C
0-5
0-7
0-5
Details of 1 1/4'' 2S350-35 SUW-35 Unid Type Semi-Direct Diaphragm Valve:
Production process of Normally Closed Uni-D Type Electric Solenoid Valve:
CAUTIONS:
1. Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
2. To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
3. AC voltage tolerance:±10%；DC voltage tolerance:±1%
4. It should be installed horizontally；vertical installation is not advisable.
Not Suitalbe For Fluid As Below:
1. Liquid status when it is high temperature；solid status when it is cool.
2. Corrosive fluid
3. Viscosity over 20cst
