1/8'' 4V110-06 AirTAC Type Pneumatic Solenoid Valve 24VDC
Brando is a Pneumatic Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).
Brando Supply:
1. 5/2 Way Pneumatic Solenoid Valve: 4V110-06, 4V120-06, 4V210-06, 4M220-06, 4V210-08, 4V220-08, 4V310-08, 4V320-08, 4V310-10, 4V410-15, 4V420-15, 4M110-06, 4M120-06, 4M210-06, 4M220-06, 4M210-08, 4M220-08, 4M310-08, 4M320-08, 4M310-10, 4M320-10
2. 5/3 Way Pneumatic Solenoid Valve: 4V130C-06, 4V130E-06, 4V130P-06, 4V230C-06, 4V230E-06, 4V230P-06, 4V230C-08, 4V230E-08, 4V230P-08, 4V330C-08, 4V330E-08, 4V330P-08, 4V330C-10, 4V330E-10, 4V330P-10, 4V430C-15, 4V430E-15, 4V430P-15
3. 2/2 Way Pneumatic Solenoid Valve: 2V025-06, 2V025-08
Technical data of 4V100 Series Pneumatic Solenoid Valves:
|
Model No
|
4V110-06
4V120-06
|
4V130C-06
4V130E-06
4V130P-06
|
4V110-08
4V120-08
|
4V130C-08
4V130E-08
4V130P-08
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
|||
|
Action Type
|
Internal pilot or external pilot
|
|||
|
Port Size
|
In=Out=1/8''
|
In=Out=1/4''
|
||
|
Orifice Size
|
5.5 mm² (Cv=0.31)
|
5.0 mm² (Cv=0.28)
|
12.00 mm² (Cv=0.67)
|
9.00 mm² (Cv=0.50)
|
|
Valve Type
|
5 Port 2 Position
|
5 Port 3 Position
|
5 Port 2 Position
|
5 Port 3 Position
|
|
Working Pressure
|
0.15~0.8MPa (21~114psi)
|
|||
|
Proof Pressure
|
1.5MPa (215psi)
|
|||
|
Working Temperature
|
5-50℃
|
|||
|
Material of Body
|
Aluminum alloy
|
|||
|
Max. Frequency
|
5 cycle/sec
|
3 cycle/sec
|
5 cycle/sec
|
3 cycle/sec
|

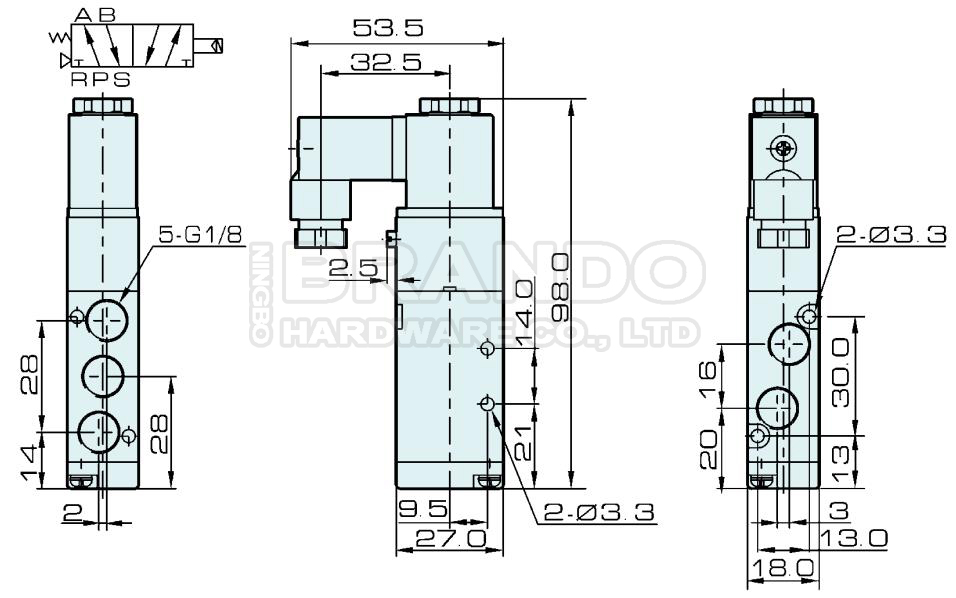

Overall dimension of 4V110-06 Pneumatic Solenoid Valve:

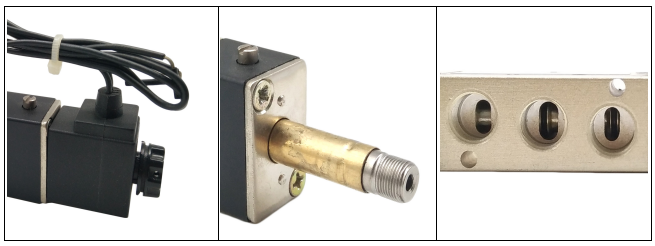

Details display of 4V110-06 Pneumatic Solenoid Valve:

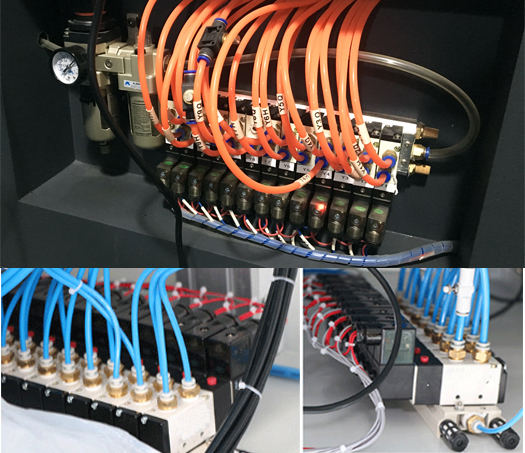

Application display of 5/2 Way Pneumatic Solenoid Valve:
Brando Pneumatic Solenoid Valves Production Process Video On YouTube:
More Pneumatic Solenoid Valves for you to choose:
*4V100 Pneumatic Valves *4V200 Pneumatic Valves *4V300 Pneumatic Valves *4V400 Pneumatic Valves
*5/2 Way Pneumatic Valves *5/3 Way Pneumatic Valves *2/2 Way Pneumatic Valves *Pneumatic Fast Fittings
