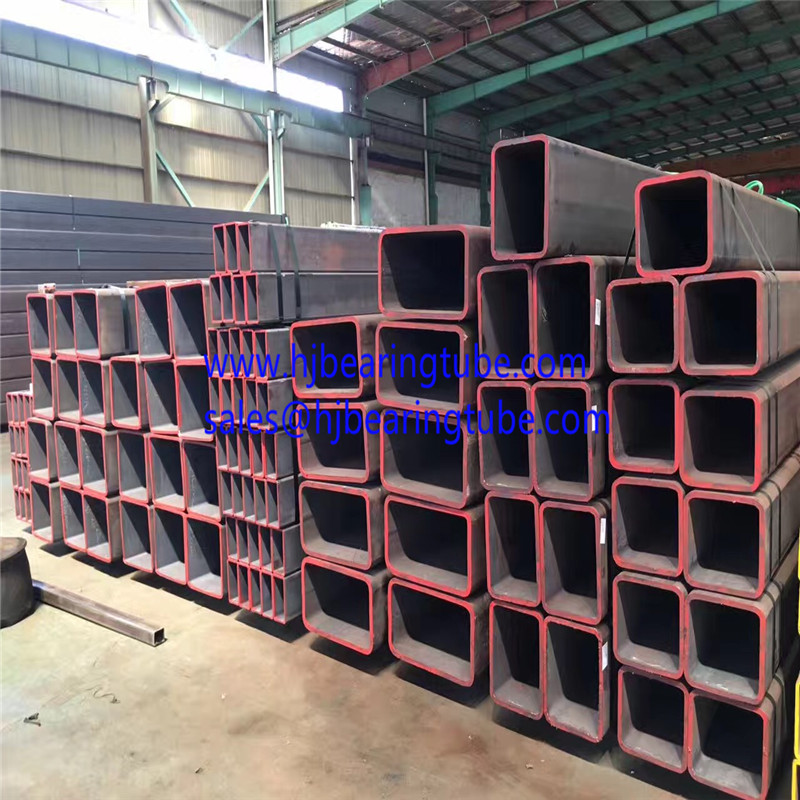

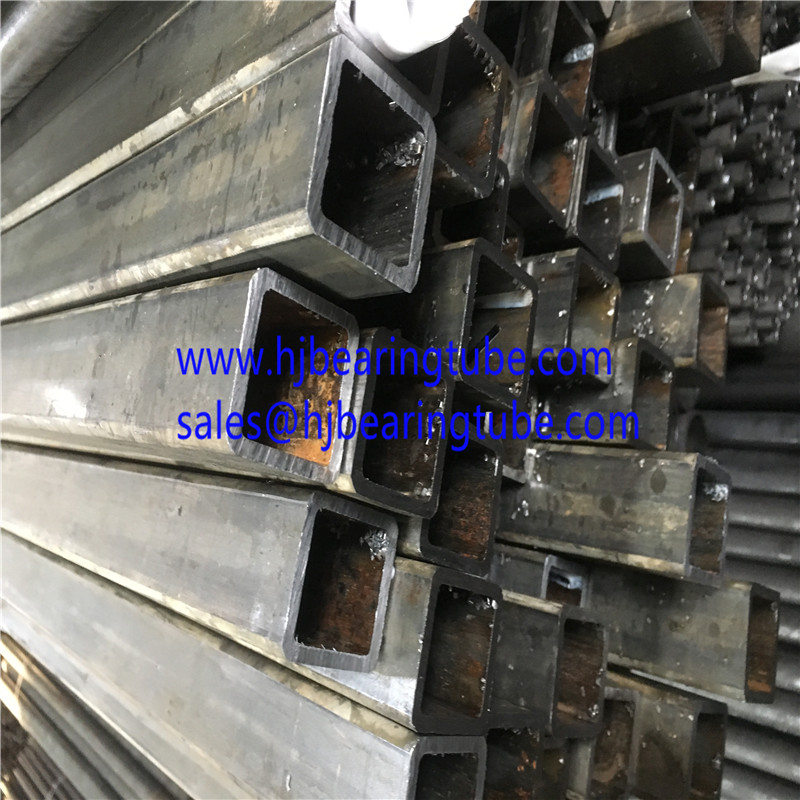

Square and Rectangle Hollow Section Seamless Steel Tube ASTM A500 for Structural Engineering
Standard: ASTM A500 Steel Rectangle Tubing,ASTM A500 square rectangle steel tubes
seamless Square tubing cold drawing square tubing
Cold-Formed Welded and Seamless Carbon Structural Tubes
Applications:railway construction,nuclear station construction.
for construction of bridges, and buildings, and for general strcutrual purposes
Size range:
O.D. :20 to 300 mm W.T.:1-30mm L:max12000mm
| Product Name | ASTM A500 Cold-Formed Welded and Seamless Carbon Structural Tubes |
| Material | Grade A, B, C, D |
| Standard | ASTM A500 |
| Application | for construction of bridges, and buildings, and for general strcutrual purposes |
| Certificate | ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Packing | Bundles or Wooden Boxes |
| Chemical Reuirement | ||||
| Element | GradeA, B and D | Grade C | ||
| Heat Analysis | Product Analysis | Heat Analysis | Product Analysis | |
| Carbon, max | 0.26 | 0.3 | 0.23 | 0.27 |
| Manganese,max | 1.35 | 1.40 | 1.35 | 1.4 |
| Phosphorus,max | 0.035 | 0.045 | 0.035 | 0.045 |
| Sulfur,max | 0.035 | 0.045 | 0.035 | 0.045 |
| Copper,min | 0.2 | 0.18 | 0.2 | 0.18 |
| Tensil requirements | ||||
| Round Structural Tubing | ||||
| GradeA | Grade B | Grade C | Grade D | |
| Tensil strengths,min,psi(Mpa) | 45 (310) | 58(400) | 62(425) | 58(400) |
| Yield strength,min,psi(Mpa) | 33(230) | 42(290) | 46(315) | 36(250) |
| Elongation in 2 in.(50mm) min,% | 25 | 23 | 21 | 23 |
| Shaped Structural Tubing | ||||
| GradeA | Grade B | Grade C | Grade D | |
| Tensil strengths,min,psi(Mpa) | 45 (310) | 58(400) | 62(425) | 58 |
| Yield strength,min,psi(Mpa) | 39(270) | 46(315) | 50(315) | 36(250) |
| Elongation in 2 in.(50mm) min,% | 25 | 23 | 21 |
23 |
