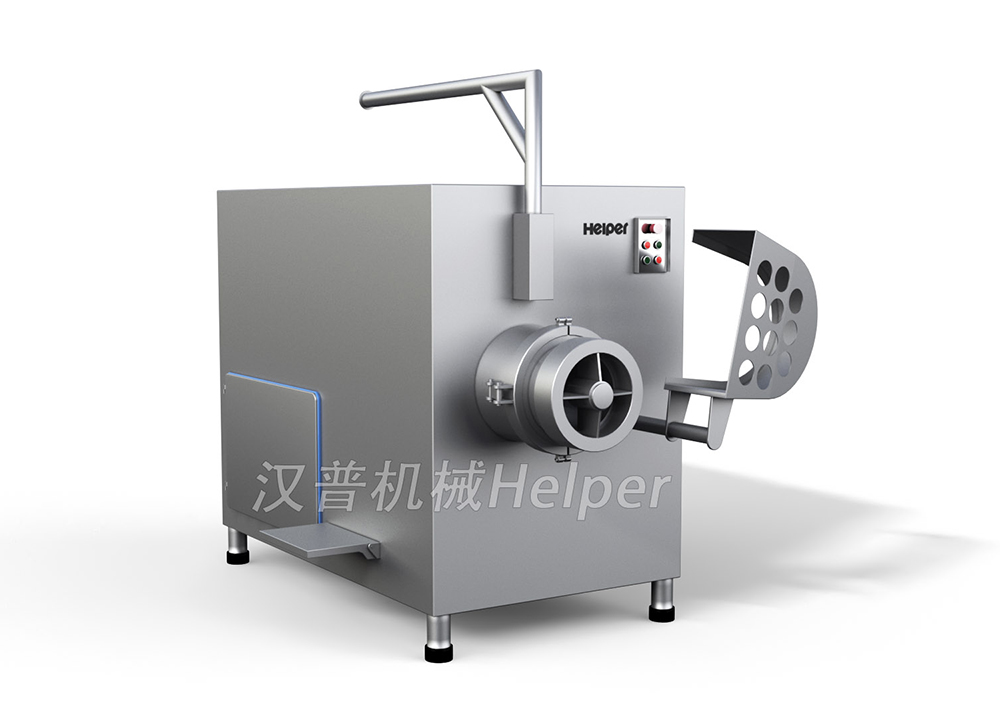

  Brife Introduction of Industrial Frozen Meat Grinder

JR300 is a large scale grinding machine among the whole grinder series. It can work well with whole big frozen meat block under minus 18 centigrade degree.  By integrating with converying belts, it can form an automatic production flow for grinding step. The strongest precision casting stainless steel worm ensure its high performance on grinding large frozen meat without any pretreatment.

  Features and characters

--- High capacity(5000 to 8000kg per hour) with neat structure.
--- Precision Casting Worm makes it high performance of grinding.
--- With an additional trolley to disassembly the worm and knife, pore plates, etc .
--- Special treatment knife and pore plates for cutting frozen meat without thawing.
--- Directly grinding for large meat bloks without pre-breaking.

--- Soft Starter to be equipped for special requirments of power supply

  Technical data

Capacity: 5000～8000  Kg/h

Power : 55kw

Worm Speed: 47 rpm

Hole-plate: Φ4.Φ6.Φ8.Φ10.Φ12.Φ16.Φ18.Φ20 Φ22 mm.  Or at customer demands.

Meat Temp: -5～-18  ℃

External dimension: 2600×1300×1800 mm

Installation dimension: 3000×2500×3000 mm

Weight: ≈2100 kg

Equipment Layout
