Manual laser welding machine

Hand Held Fiber Laser Welding Machine

Hand Held Fiber Laser Welding Machine Technology Introduction:

Zhouxiang hand-held laser welding machine replaces the previous fixed optical path with a hand-held welding torch, hand-held welding, flexible and convenient, longer welding distance, overcomes the limitation of workbench space, and cannot be automatically welded when the workpiece size is not uniform. Mainly for large workpieces, fixed positions such as inner right angle, outer right angle, plane weld welding, small heat affected area during welding, small deformation, large welding depth, and firm welding seam. It is a new and more flexible welding process for long-distance welding of large workpieces.

Hand Held Fiber Laser Welding Machine Main Features：

1. The hand-held welding torch replaces the previous fixed optical path, which is more flexible and convenient, realizes long-distance laser welding, and overcomes the limitation of the travel space of the workbench;

2. The hand-held welding head is light and flexible, easy to operate, and can meet the welding of various angles and positions;

3. The hand-held welding head is equipped with 10 meters of optical fiber, which is flexible and convenient to realize outdoor welding;

4. Infrared positioning is used for welding head position calibration and welding position verification, the welding position is more accurate, and the welding seam is more beautiful; the welding head welding seam width is adjustable, which can meet the welding of various workpieces.

5. The laser welding depth is large and the welding is firm;

6. It is not easy to deform, easy to polish and polish, which solves the problems of welding penetration, welding flash and welding quality caused by argon arc welding;

Hand Held Fiber Laser Welding Machine Application range:

1. Laser welding of sheet metal, chassis and water tank

2. All kinds of hardware lamp laser welding

3. Laser welding of door and window frames;

4. Laser sealing and welding of kitchen, bathroom and wash basin hardware;

5. Laser welding of billboards and advertising words

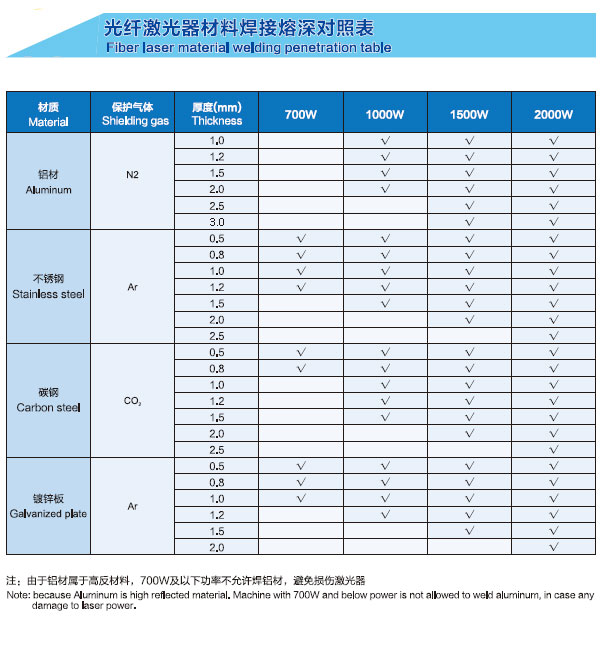

Hand Held Fiber Laser Welding Machine Technical parameters:

Hand Held Fiber Laser Welding Machine characteristics:

★No external chiller, size is small

★Flexible and convenient operation to realize outdoor welding

★Beam with good quality, fast speed, small thermal deformation, precision and high integration

★Welding seam is beautiful, flat and without air holes. No treatment or brief treatment is needed after welding.

★Handheld welding gun can weld workpiece at any angle. It is suitable for spot welding of complex seam and various devices.

Hand Held Fiber Laser Welding Machine Advantages:

1) Reduced requirements for operators

◆No need for professional training, ordinary employees are operable

◆Solving the problems of training, living and supporting people

◆One machine saves two welding technicians a year

2) Welding quality improved

◆Can complete welding tasks that cannot be completed by ordinary welding machine

◆The workpiece is not deformed, the weld is beautiful, there is no welding slag, and the weldable depth is large.

◆Can weld corner position for non-contact welding

3) Efficiency improved

◆Working efficiency is 5-10 times that of ordinary argon arc welding

◆Can connect tooling and robotic for automatic welding

4) Reduced Subsequent Cost

◆No need welding consumables, the grinding work of the welding bead is no need, greatly reducing the cost of use.

◆The life of the laser is 100,000 hours (40 years), which is much more greater than ordinary equipment.
