Pilot-Operated Diaphragm Brass Solenoid Valve 1'' 16 Bar
Features of F1 Series Solenoid Valve:
1. Working Medium: Air, Water, Gas, Oil, Liquid, etc
2. Working Pressure Range: 0.3 to 16 Bar
3. Seal Material: NBR, EPDM, FKM
4. Body Material: Brass
5. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
6. Orifice Size: 14mm, 25mm, 32mm, 40mm, 50mm
7. Operation: Diaphragm Pilot Operated
8. Function: 2 Way Normally Closed
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Technical Data of F1 Series Brass Solenoid Valve:
|
Model
|
Orifice Size
(mm)
|
Port Size
(Inch)
|
Kv
(m³/h)
|
Working Pressure
(bar)
|
Medium Temperature
(℃)
|

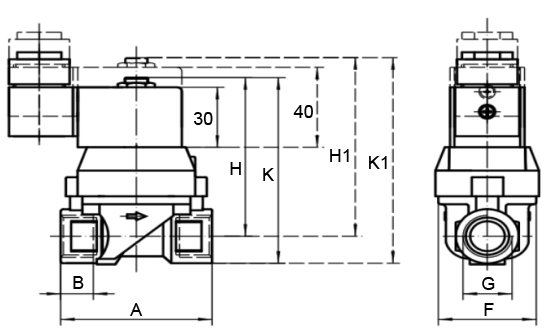

Dimension (mm)
|
||
|
A
|
F
|
K
|
||||||
|
2 Way Normally Closed, Diaphragm Pilot Operated
|
||||||||
|
F1-14-3/8''
|
14
|
3/8''
|
3
|
0.3 to 16
|
NBR: -10 ~ +80
EPDM: -30 ~ +120 FKM: -30 ~ +150 |
65
|
41
|
102
|
|
F1-14-1/2''
|
14
|
1/2''
|
3.8
|
65
|
41
|
102
|
||
|
F1-14-3/4''
|
14
|
3/4''
|
4.2
|
69
|
41
|
108
|
||
|
F1-25-3/4''
|
25
|
3/4''
|
9
|
92
|
60
|
122
|
||
|
F1-25-1''
|
25
|
1''
|
11
|
92
|
60
|
122
|
||
|
F1-25-1 1/4''
|
25
|
1 1/4''
|
18
|
114
|
80
|
135
|
||
|
F1-32-1 1/4''
|
32
|
1 1/4''
|
23
|
125
|
92
|
143
|
||
|
F1-32-1 1/2''
|
32
|
1 1/2''
|
18
|
114
|
80
|
135
|
||
|
F1-40-1 1/2''
|
40
|
1 1/2''
|
24
|
125
|
92
|
143
|
||
|
F1-40-2''
|
40
|
2''
|
28
|
129
|
92
|
155
|
||
|
F1-50-2''
|
50
|
2''
|
40
|
150
|
109
|
161
|
||
