Piloted Diaphragm Brass Solenoid Valve 3/4'' 16 Bar

Features of F2 Series Solenoid Valve:

1. Working Medium: Air, Water, Gas, Oil, Liquid, etc
2. Working Pressure Range: 0.3 to 16 Bar (See the parameter table below for details)
3. Seal Material: NBR, EPDM, FKM
4. Body Material: Brass, Stainless Steel
5. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
6. Orifice Size: 10mm, 14mm, 25mm, 32mm, 40mm, 50mm
7. Operation: Servo-Assisted Diaphragm
8. Function: 2 Way Normally Closed, 2 Way Normally Open (Optional)
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Technical Data of F2 Series Brass Solenoid Valve:

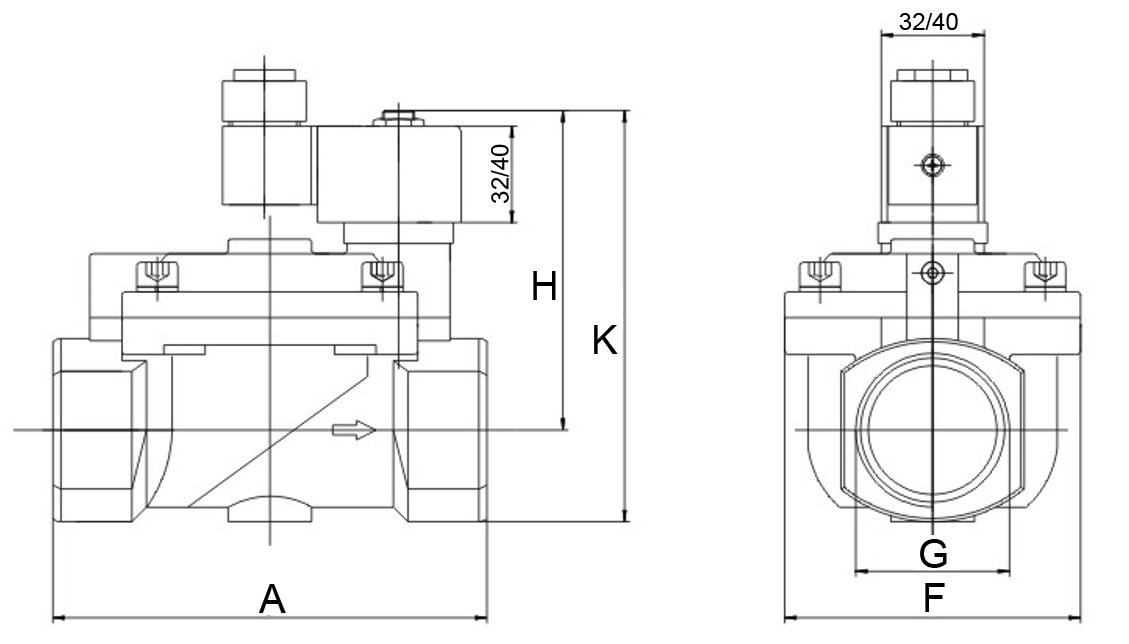

Model	Orifice Size (mm)	Port Size (Inch)	Kv (m³/h)	Working Pressure (bar)	Medium Temperature (℃)	Dimension (mm)
Model	Orifice Size (mm)	Port Size (Inch)	Kv (m³/h)	Working Pressure (bar)	Medium Temperature (℃)	A	F	K
2 Way Normally Closed, Diaphragm Pilot Operated
F2-10-1/4''	10	1/4''	1.3	0.3 to 16	NBR: -10 ~ +80 EPDM: -30 ~ +120 FKM: -30 ~ +150	55	32	99
F2-10-3/8''	10	3/8''	1.6			55	32	99
F2-14-3/8''	14	3/8''	3			65	41	102
F2-10-1/2''	10	1/2''	1.9			55	32	104
F2-14-1/2''	14	1/2''	3.8			65	41	102
F2-14-3/4''	14	3/4''	4.2			69	41	108
F2-25-3/4''	25	3/4''	9			92	60	122
F2-25-1''	25	1''	11			92	60	122
F2-25-1 1/4''	25	1 1/4''	18			114	80	135
F2-32-1 1/4''	32	1 1/4''	23			125	92	143
F2-32-1 1/2''	32	1 1/2''	18			114	80	135
F2-40-1 1/2''	40	1 1/2''	24			125	92	143
F2-40-2''	40	2''	28			129	92	155
F2-50-2''	50	2''	40			150	109	161
