Manifold Flat Mount Reverse Pulse Jet Valve CA89MM

The electromagnetic pulse valve is an important part of the bag filter, which can be said to be the core part. It is responsible for the dust removal effect of the entire bag filter. The electromagnetic pulse valve diaphragm divides the electromagnetic pulse valve into two front and rear air chambers. Compressed air enters the rear air chamber through the orifice. At this time, the pressure of the rear air chamber will bring the diaphragm close to the output port of the valve, and the electromagnetic pulse valve is in the "closed" state. The electrical signal of the pulse injection controller disappears, the armature of the electromagnetic pulse valve is reset, the vent hole of the rear air chamber is closed, and the pressure of the rear air chamber is raised to make the diaphragm close to the valve outlet, and the electromagnetic pulse valve is in the "closed" state.

Technical Data:

Details About CA89MM Electromagnetic Pulse Valve:

The electromagnetic pulse valve can be divided into three types:

a) Right-angle electromagnetic pulse valve: Diaphragm valve with valve body inlet and outlet at right angles, directly controlled by electrical signals;

b) Straight-through electromagnetic pulse valve: Diaphragm valve with valve body inlet and outlet at 180 degrees, directly controlled by electrical signals;

c) Submerged electromagnetic pulse valve: The diaphragm valve whose valve body air inlet is submerged in the air bag and is directly controlled by the electric signal.

In addition to the conventional three solenoid valves, there is a large-caliber ultra-low pressure electromagnetic pulse valve for rotary injection blowing.

The electromagnetic pulse valve is available in 3/4 '', 1 '', 1-1 / 2 '', 2 '', 2-1 / 2 '', 3 '', 4 ''. Bag dust collector is used.

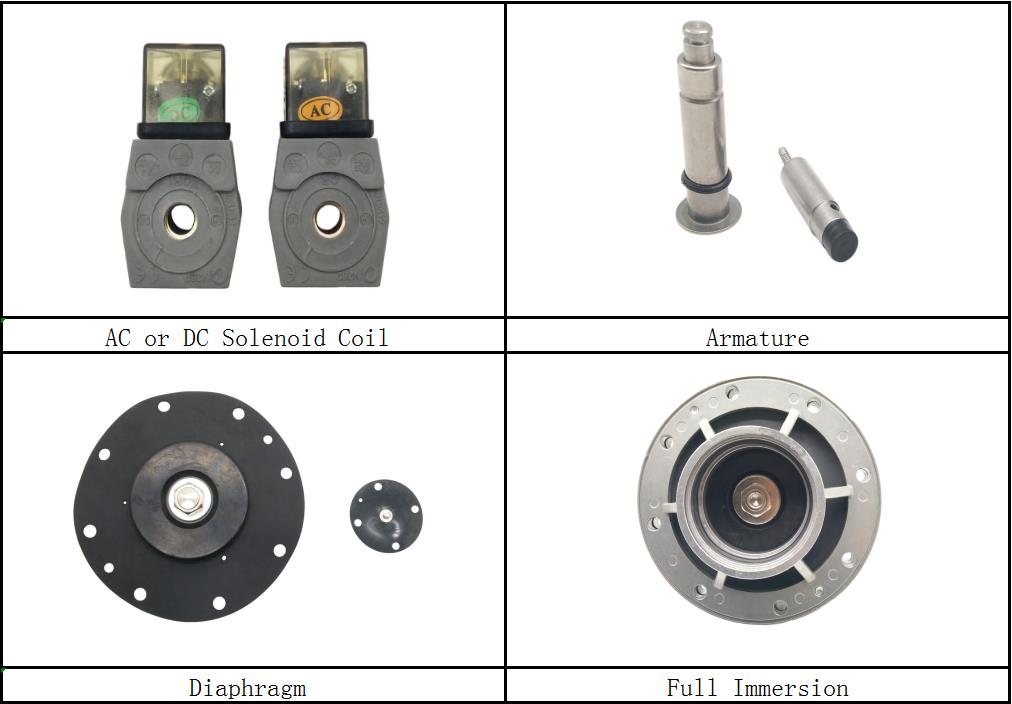

Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel
Outlet Pipe: Schedule 40 wrought steel zinc passivated
Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or FKM coated mild steel
