High Pressure Solenoid Valve SH-010-08-ES
4 year ago
1/4'' 300 bar High Pressure Solenoid Valve 220VAC
Specifications:
1. Working Medium: Air, Water, Gas, Liquid, etc
2. Max Working Pressure: 300 bar (See the parameter table below for details)
3. Seal Material: PTFE
4. Body Material: Stainless Steel 304
5. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1''
6. Orifice Size: 1mm to 25mm
7. Operation: Direct Acting (DN1 to 5), Piston Pilot Operated (DN10 to 25)
8. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

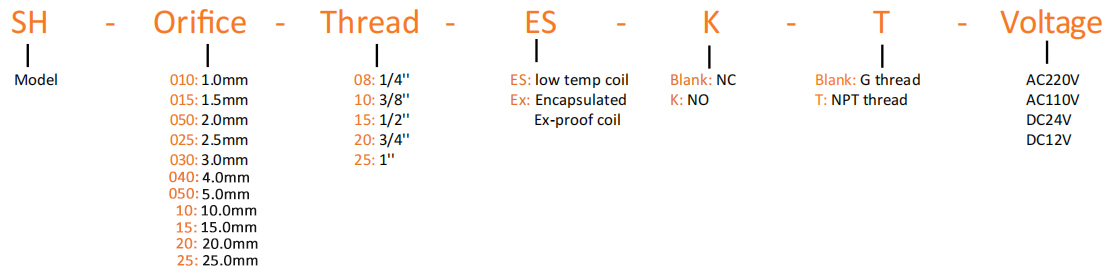

Ordering Code:
Technical Data:
|
Model No
|
Orifice Size
(mm)
|
Port Size
(inch)
|
CV
|
Working Pressure Range
(bar)
|

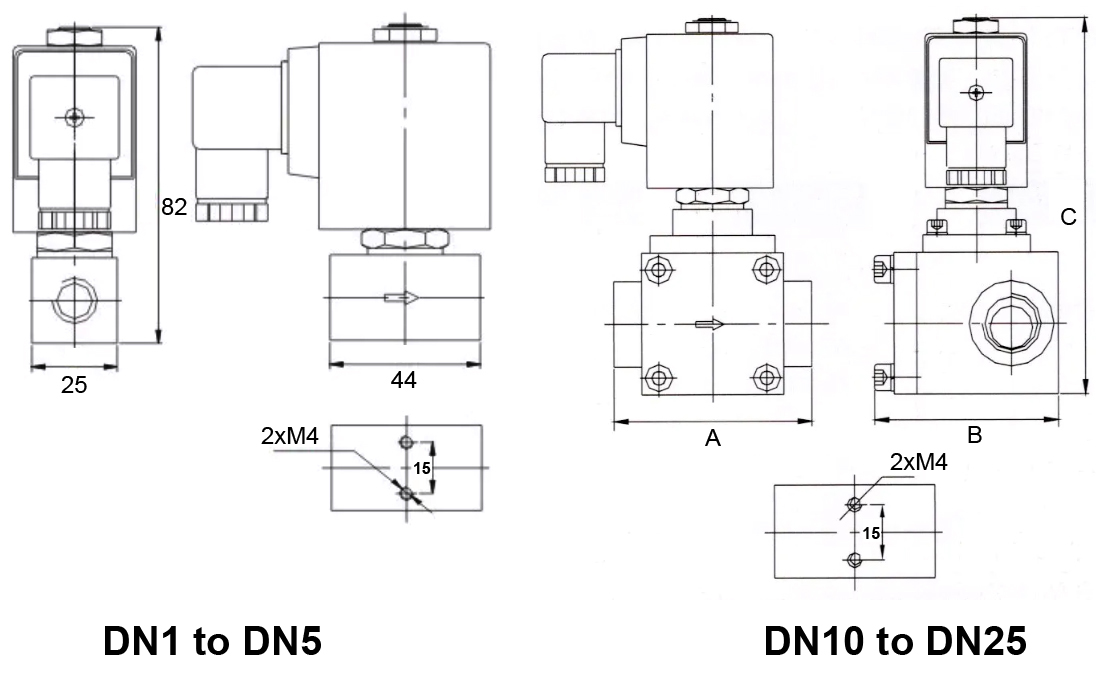

Dimension
|
||
|
Normally Closed
|
Normally Open
|
Normally Closed
|
|||||
|
220VAC
|
24VDC
|
AxBxC (mm)
|
|||||
|
SH-010ES
|
1
|
1/4'', 3/8''
|
0.04
|
0-300
|
0-150
|
0-150
|
44x25x80
|
|
SH-015ES
|
1.2
|
0.08
|
0-250
|
0-120
|
0-60
|
||
|
SH-020ES
|
2
|
0.15
|
0-180
|
0-70
|
0-35
|
||
|
SH-025ES
|
2.5
|
0.20
|
0-110
|
0-45
|
0-20
|
||
|
SH-030ES
|
3
|
0.25
|
0-80
|
0-40
|
0-15
|
||
|
SH-040ES
|
4
|
0.6
|
0-40
|
0-15
|
0-5
|
||
|
SH-050ES
|
5
|
0.9
|
0-25
|
0-8
|
-
|
||
|
SH-10ES
|
10
|
3/8''
|
3.5
|
6-160
|
6-120
|
6-50
|
60x55x109
|
|
SH-15ES
|
15
|
1/2''
|
4.7
|
70x65x119
|
|||
|
SH-20ES
|
20
|
3/4''
|
7
|
80x74x124
|
|||
|
SH-25ES
|
25
|
1''
|
11
|
90x87x134
|
|||

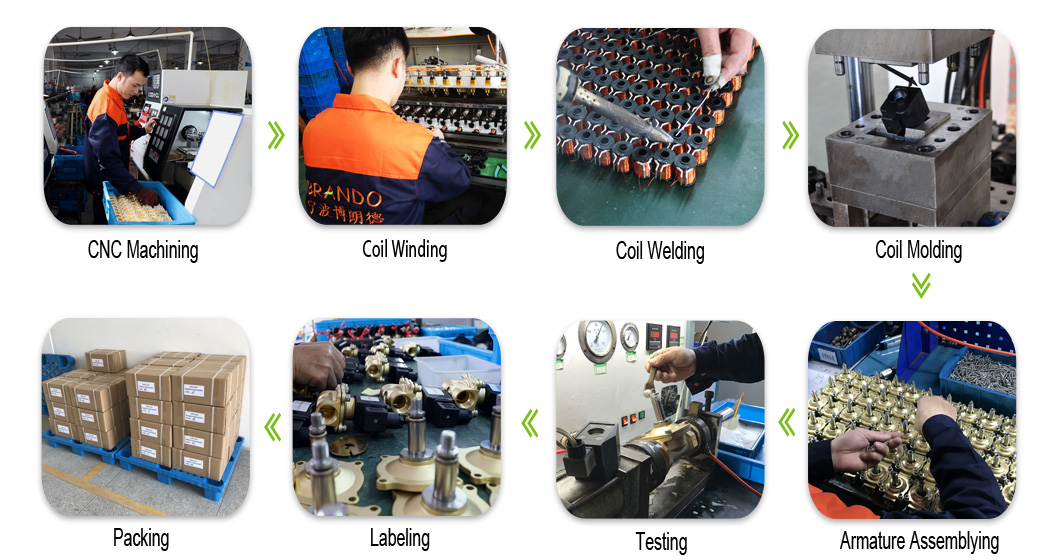

Production Show:
Production Video:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
