AEL Automatic Expansion Valve
5 year ago
AEL 2 Air Dryer Automatic Expansion Valve AEL-222212
Expansion Valves are devices used to control the refrigerant flow in a refrigeration system. They help to facilitate the change of higher pressure of liquid refrigerant in the condensing unit to lower pressure gas refrigerant in the evaporator.
Types of Expansion Valves:
* Automatic Expansion Valve
* Thermostatic Expansion Valve
* Electronic Expansion Valve
Ordering Code of AEL Automatic Expansion Valve:
|
Model
|
Inlet (ODF)
|
Outlet (ODF)
|
Orifice Size
|
Type
|
|
AEL0.5
|
6mm
|
10mm
|
0.7
|
AEL-222200
|
|
1/4''
|
3/8''
|
0.7
|
AEL-222210
|
|
|
AEL 1.0
|
6mm
|
10mm
|
1.0
|
AEL-222201
|
|
1/4''
|
3/8''
|
1.0
|
AEL-222211
|
|
|
AEL 2.0
|
6mm
|
10mm
|
2.0
|
AEL-222202
|
|
1/4''
|
3/8''
|
2.0
|
AEL-222212
|
|
|
AEL 3.0
|
6mm
|
10mm
|
3.0
|
AEL-222203
|
|
1/4''
|
3/8''
|
3.0
|
AEL-222213
|
|
|
AEL 4.0
|
6mm
|
10mm
|
3.5
|
AEL-222204
|
|
1/4''
|
3/8''
|
3.5
|
AEL-222214
|
|
|
AEL 5
|
3/8''
|
5/8''
|
4.75
|
AEL-222285
|
|
AEL 6
|
10mm
|
16mm
|
5
|
AEL-222205
|
|
3/8''
|
5/8''
|
5
|
AEL-222215
|

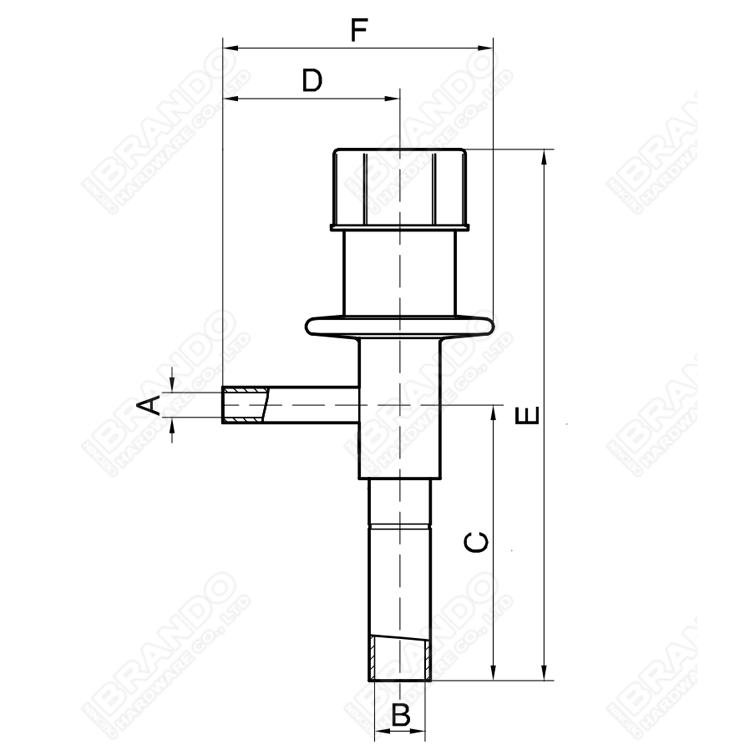

Main dimenison of AEL Automatic Expansion Valve:
|
Model
|
Valve Size
|
Connection
|
Dimension
|
||||
|
Inlet (A)
|
Outlet (B)
|
C
|
D
|
E
|
F
|
||
|
AEL
|
0.5
1.0
2.0
3.0
4.0
|
6mm ODF
|
10mm ODF
|
58
|
36
|
106
|
54
|
|
1/4'' ODF
|
3/8'' ODF
|
||||||
|
5.0
6.0
|
10mm ODF
|
16mm ODF
|
64
|
47
|
122
|
69
|
|
|
3/8'' ODF
|
5/8'' ODF
|
||||||
Technical data of AEL automatic expansion valve:
|
Type
|
Valve Size
|
Orifice Size
|
Nominal Capacity (kW)
|
|||
|
R22
|
R134a
|
R404A
|
R507A
|
|||
|
AEL
|
0.5
|
0.7
|
1.4
|
1.0
|
0.97
|
0.98
|
|
1.0
|
1.0
|
2.0
|
1.4
|
1.4
|
1.4
|
|
|
2.0
|
2.0
|
4.0
|
2.9
|
2.8
|
2.9
|
|
|
3.0
|
3.0
|
9.3
|
6.6
|
6.5
|
6.6
|
|
|
4.0
|
3.5
|
12.2
|
8.7
|
8.6
|
8.7
|
|
|
5.0
|
4.75
|
4.75
|
15.9
|
15.8
|
15.9
|
|
|
6.0
|
5.0
|
29.1
|
2.0.0
|
20.5
|
20.7
|
|
