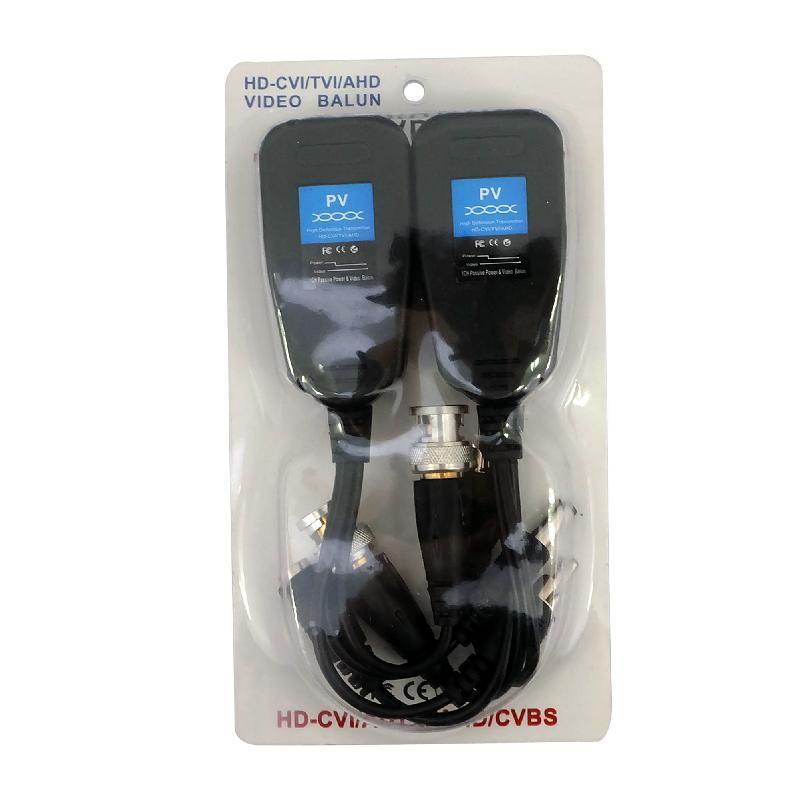

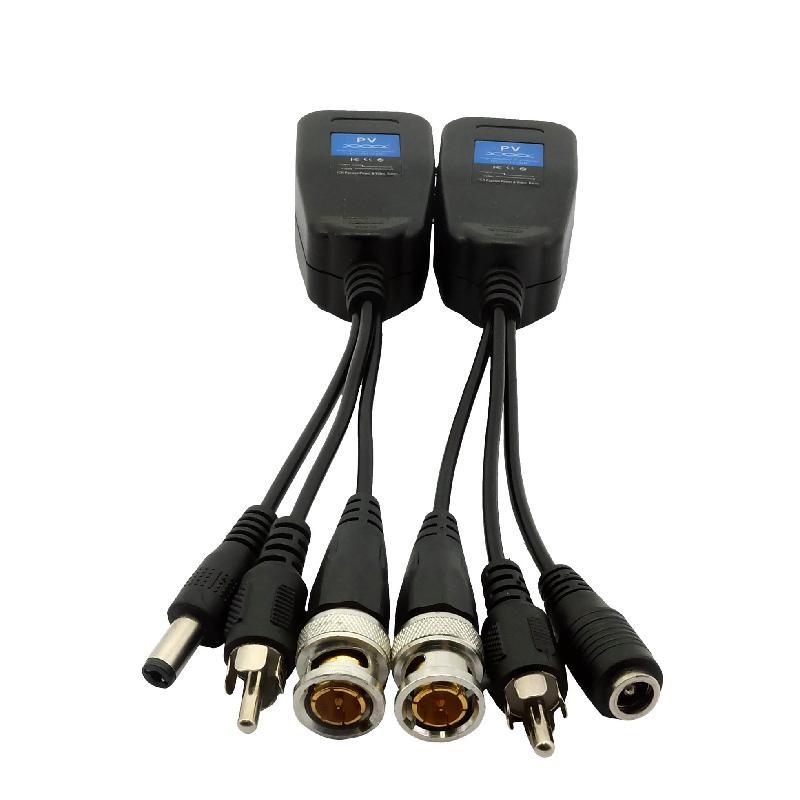

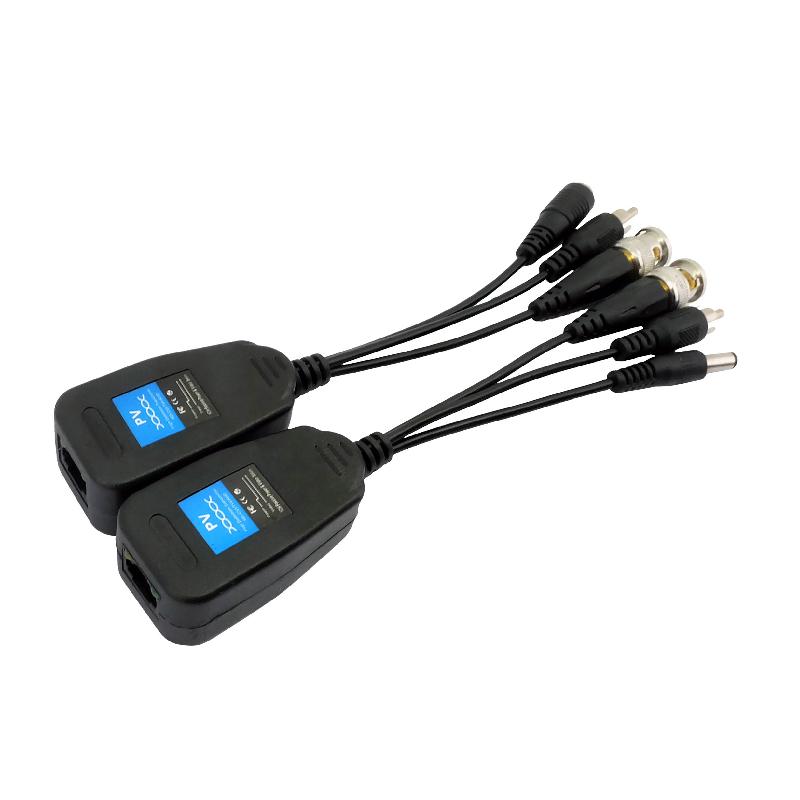

1ch Passive Video&Power&Audio Balun with Power
1ch Passive Video&Power&Audio Balun with Power
Features
Compatible with all HD-CVI, HD-TVI, HD-AHD Cameras and analog Cameras
Compatible with all HD-TVI, HD-CVI, AHD & CVBS analog cameras CVBS--- Color video max up to 400m,
HD-TVI, HD-CVI, AHD---
720P: Color video max up to 300m,
1080P:Color video max up to 200m,
3MP,4MP,5MP: Color video max up to 170m
|
Model |
PVA22H-1 |
|
|
Video Format |
HD-CVI/TVI/AHD, CVBS |
|
|
Frequency Response |
DC to 60MHz |
|
|
Attenuation |
0.5dB typ |
|
|
CMRR |
60 dB |
|
|
Surge Protection |
4KV |
|
|
ESD |
8KV |
|
|
Impedance |
Coax, Male BNC |
75 ohms |
|
Terminal Block |
100 ohms |
|
|
Working Environment |
Working Temperature |
-10℃ to +50℃ |
|
Storage Temperature |
-30℃ to +70℃ |
|
|
Humidity |
0 to 95% |
|
|
Transmission Distance |
720P, 960P, 1080P CVI/TVI/AHD Cameras |
Up to 200m |
|
720P, 960P, 1080P, 3M, 4M, 5M CVI/TVI/AHD Cameras |
/ |
|
|
Wire Type |
CAT5, CAT5E, CAT6 |
|
|
Power |
No power required |
|
|
Case |
ABS Plastic |
|
