Product details

HD-CVI/TVI/AHD Video Balun with Press-Fit terminal block(VB109PH-1)

Product Overview

1ch Utp Passive HD-CVI/TVI/AHD Video Baluns with Pigtail BNC To Rj45 Cat5e Transceiver for 5mp Cctv Cameras(VB109PH-1)

Product Description

HD-CVI/TVI/AHD Video Balun with Press-Fit terminal block(VB109PH-1)

Features
1.	Innovative connectable design
2.	Compact size and easy installation
3.	Built-in transient suppression protection
4.	Built-In Surge Protector
5.	60 dB cross talk and noise immunity
6.	A substitution of 4ch, 8ch, 16ch, and 32ch passive video balun
7.	Compatible with all HD-CVI, HD-TVI, HD-AHD cameras and analog cameras

Technical Specifications

Model		VB100WH-2	VB202EH-2 VB202PH-2	VB102PH-3A VB102PH-3 VB108PH-2	VB202PH-1	VB103PH-1 VB108PH-1 VB109PH-1	VB711PH	VB721PH
Video Format		HD-CVI/TVI/AHD, CVBS
Frequency Response		DC to 60MHz
Attenuation		0.5dB typ
CMRR		60 dB
Surge Protection		4KV
ESD		8KV
Impedance	Coax, Male BNC	75 ohms
	Terminal Block	100 ohms
Working Environment	Working Temperature	-10℃ to +50℃
	Storage Temperature	-30℃ to +70℃
	Humidity	0 to 95%
Transmission Distance (CVI/TVI/AHD Cameras)	CVBS Color video max	Up to 400m
	720P	Up to 300m					Up to 400m
	1080P	Up to 200m					Up to 400m
	3MP, 4MP, 5MP	/		/	Up to 170m	Up to 170m	Up to 250m
	8MP,4K	/					Up to 200m
UTP Connection		Water-proof Housing	Screw Terminal Blocks	"Press-Fit" Terminal Blocks	Screw Terminal Blocks	"Press-Fit" Terminal Blocks	Screw Terminal Blocks	"Press-Fit" Terminal Blocks
Wire Type		CAT5, CAT5E, CAT6
Power		No power required
Case		ABS Plastic

Package:

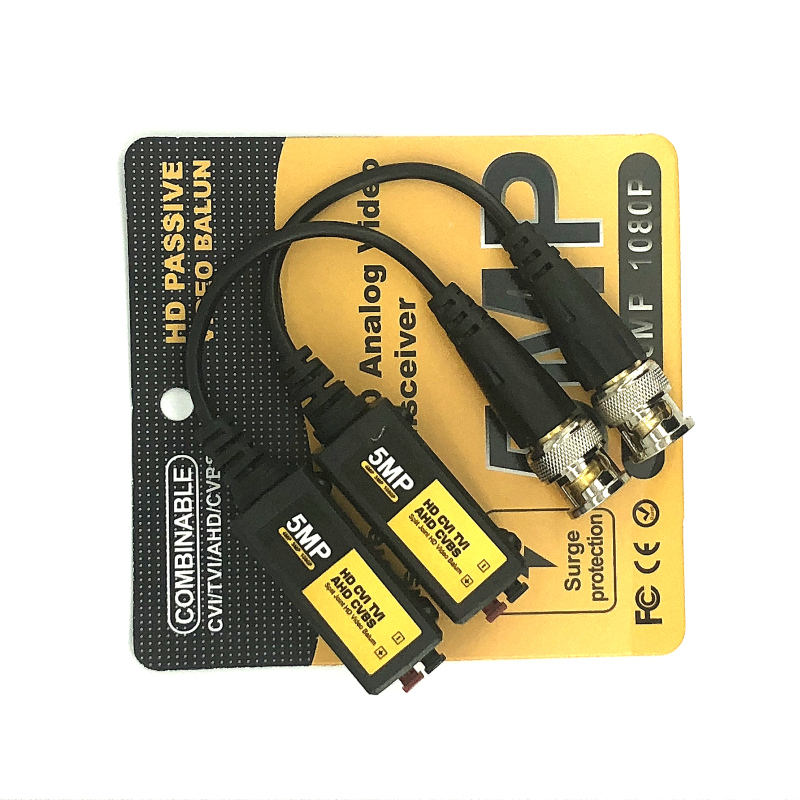

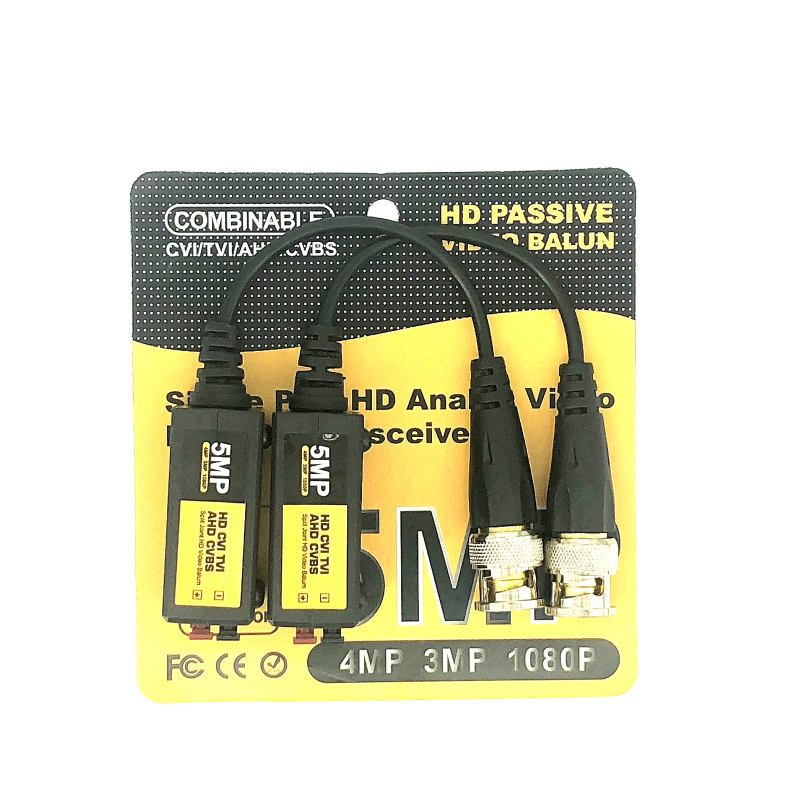

1ch Utp Passive HD-CVI/TVI/AHD Video Baluns with Pigtail BNC To Rj45 Cat5e Transceiver for 5mp Cctv Cameras(VB109PH-1)

11ch Utp Passive HD-CVI/TVI/AHD Video Baluns with Pigtail BNC To Rj45 Cat5e Transceiver for 5mp Cctv Cameras(VB109PH-1)

HD-CVI/TVI/AHD Video Balun with Press-Fit terminal block
