Automatic Insulating Glass Gas Filling Production Line
2000mm Automatic Insulating Glass Gas Filing Production Line is one machine to fill argon gas for the double glazing.

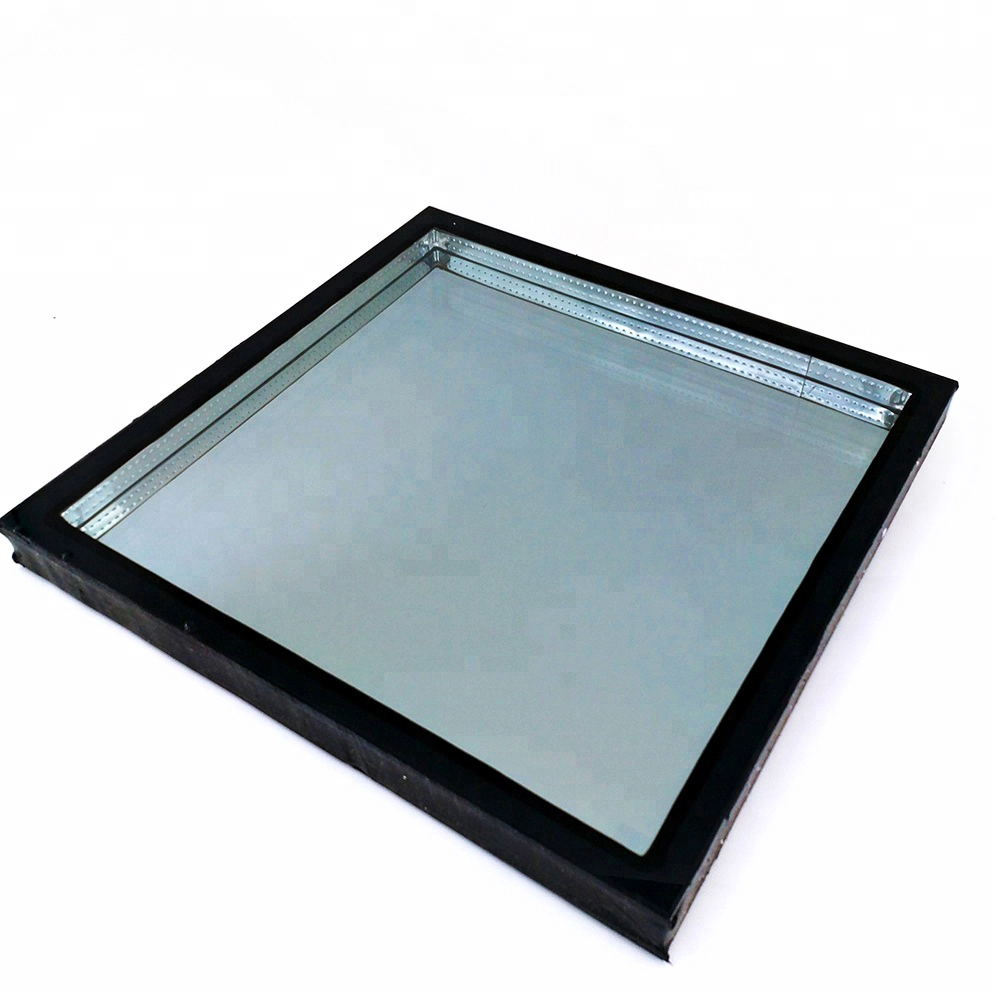

Now it is more popular to fill argon gas to the double glazing.Fill gas for the double glazing has many advantages:heat insulation and sound insulation ;Increase wind pressure resistance;improve the K value of the hollow glass, reduce the condensation of the indoor side glass.
Usage:
* LBW2000PC Vertical Automatic Insulating Glass Gas Filling Flat Press Production Line is a high-efficiency insulating glass processing equipment.
* This line can achieve the Europe standard and satisfy all aspects of customers’ demands with advanced technology, high production efficiency and complete functions.
*It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance.
* Entire machine uses the energy conservation interrupted type automatic operation system, when glass movement to the photoelectric sensor of the end of the input conveyor, the brush, the water *pump, the air blower will be start automatically, when the production is interrupted, the brush, the water pump, the air blower will automatically stop, the section of the equipment which was occupied moves in full speed, other parts which do not work are at the intelligence dormant state, so it is energy saving.
MAIN SPARE PARTS
|
PLC |
SCHNEIDER |
FRANCE |
|
color touch screen |
KINCO |
TAIWAN |
|
transducer/frequency changer |
SCHNEIDER |
France |
|
circuit breaker |
SCHNEIDER |
France |
|
contactor |
SCHNEIDER |
France |
|
relay |
SCHNEIDER |
Japan |
|
Motor |
DPG |
TAIWAN |
|
Optoelectronic switch |
AUTONICS |
KOREA |
|
solenoid valve |
AIRTAC |
Taiwan |
|
Second gear knob switch
|
SCHNEIDER |
France |
|
coating checking system |
KEYENCE |
Japan |
|
linear guide rail |
HIWIN |
TAIWAN |
|
bearing of washing section |
SKF |
Sweden |
|
cylinder |
AIRTAC |
Taiwan |
|
vacuum generator/sucker |
CHELIC |
Taiwan |
Technical Paramter:
|
Technical Parameter |
LBW2000PC-07Vertical insulating glass automatic gas filling press production line |
LBW2200PC-07Vertical insulating glass automatic gas filling press production line |
LBW2500PC-07 Vertical insulating glass automatic gas filling press production line |
|
Min glass size |
280*450mm |
280*450mm |
400*280mm |
|
Max glass size |
2000*2500 |
2200*3000 |
2500*3000 |
|
Washing glass speed |
0-8m/min
|
2-12m/min
|
2-12m/min
|
|
Power supply |
380V/50HZ 19KW |
380V/50HZ 28KW |
380V/50HZ 38KW |
|
Insulating max glass thickness |
40 mm
|
40 mm
|
40 mm
|
|
Transmission glass speed |
45 m/min
|
45 m/min
|
45 m/min
|
|
Air pressure |
1Mpa |
1Mpa |
1Mpa |

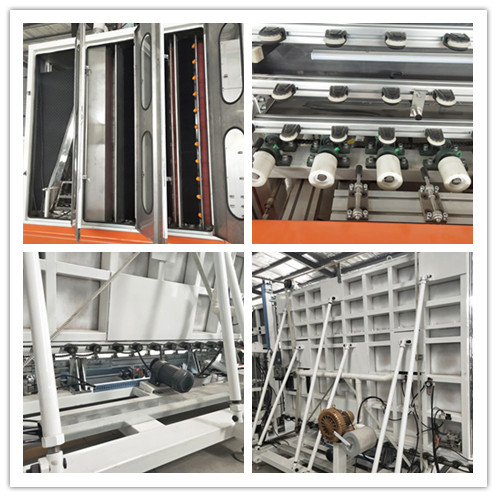

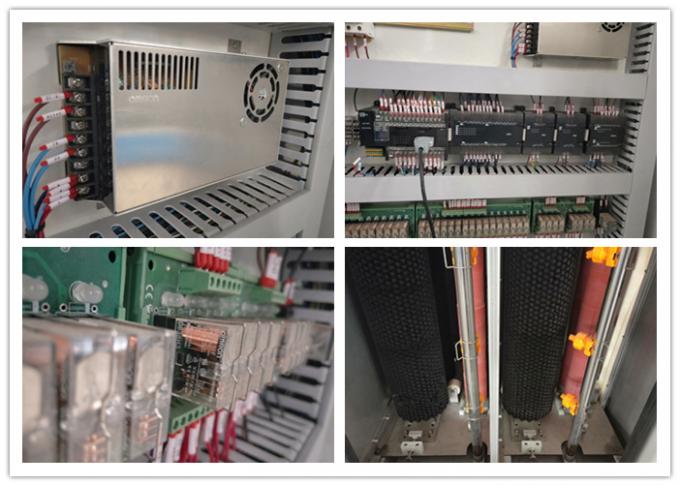

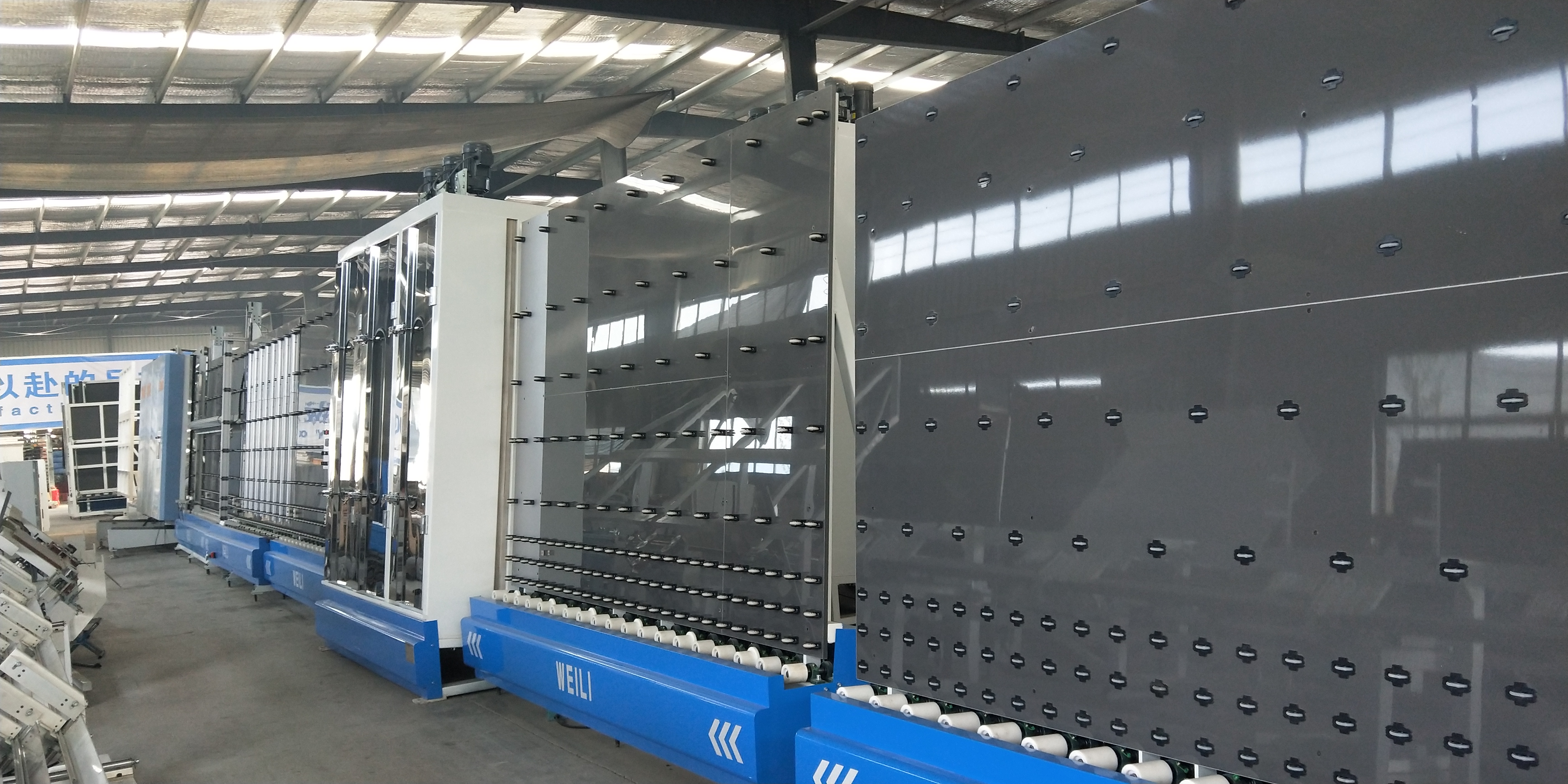

Machine photos:

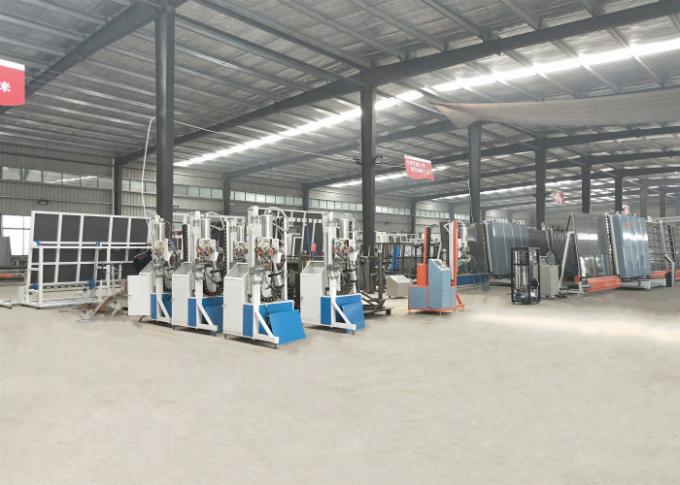

Company information:
other Items of our company:
1 Insulating Glass Sealing Robot
2 Aluminum Spacer Bar Bending Machine
3 Desiccant Filling Machine
4 Hot Melt Butyl Extruder Machine
5 CNC Vertical Glass Drilling and Milling Machine
6 Two Component Sealant Extruder
