321H36

1/2'' 321H35 Parker Type High Pressure Solenoid Valve

Product Features:
1. Model No: 321H35, 321H36 (Normally Closed); 322H35, 322H36 (Normally Open)
2. Port Size: 1/2'', 3/4''
3. Orifice Size: 15mm
4. Working Medium: Air, Water, Gas, etc
5. Working Pressure: 1.5 to 50 bar
6. Body Material: Brass
7. Operation: Diaphragm Pilot Operated
8. Function: 2 Way Normally Closed, 2 Way Normally Open
9. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
10. Application examples: bottle blowing machines, air compressors, etc

Technical Data of High Pressure Brass Solenoid Valve:

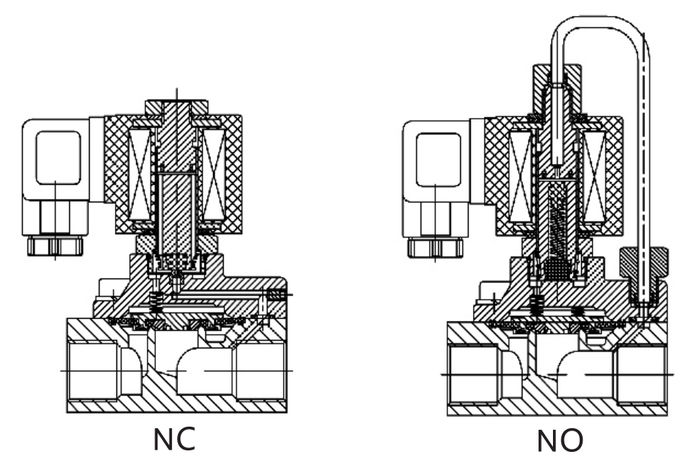

Dimension of High Pressure Brass Solenoid Valve:

BRANDO Factory Production Video of Solenoid Valves:

More High Pressure Solenoid Valves for you to choose:

Brass Solenoid Valves
MAX 50 bar	MAX 50 bar	MAX 50 bar	MAX 50 bar
MAX 50 bar	MAX 70 bar	MAX 120 bar	MAX 200 bar

Stainless Steel Solenoid Valves
MAX 50 bar	MAX 50 bar	MAX 50 bar	MAX 100 bar
MAX 120 bar	MAX 160 bar	MAX 200 bar	MAX 300 bar
