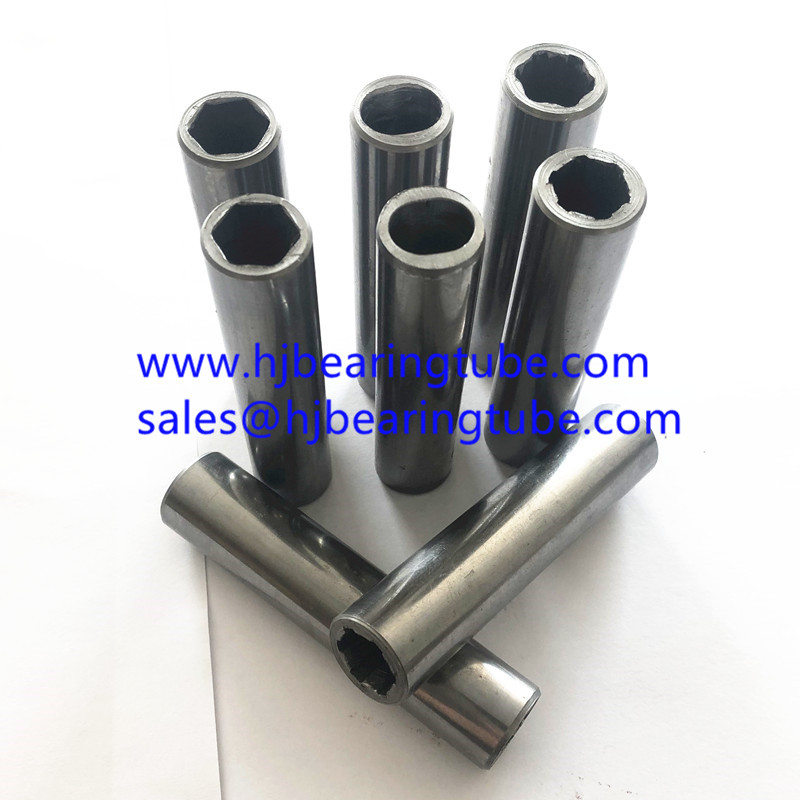

Mild Steel Cold Drawn hexagonal Oval Shaped Tube

Applications: for mechinery, mechanical engineer

Size range: O.D.:6-168mm W.T.:1-15mm L:max12000mm

We can producing shaped tube according to customer's special requirements or drawing.

Steel Grade As ASTM A519/A513 or others,Chemical compisition:

Steel	C	Mn	P	S	Si	Cr	Mo
Grade	max		max	max	max	min
1008	0.10	0.30-0.50	0.040	0.050
1010	0.08-0.13	0.30-0.60	0.040	0.050
1018	0.15-0.20	0.60-0.90	0.040	0.050
1020	0.18-0.23	0.30-0.60	0.040	0.050
1026	0.22-0.28	0.60-0.90	0.040	0.050
1035	0.32-0.38	0.60-0.90	0.040	0.050
1045	0.43-0.50	0.60-0.90	0.040	0.050
4130	0.28-0.33	0.40-0.60	0.040	0.040	0.15-0.35	0.80-1.10	0.15-0.25
4140	0.38-0.43	0.75-1.00	0.040	0.040	0.15-0.35	0.80-1.10	0.15-0.25

Mechanical properties:

Grade	condition	Ultimat	Yield	Elongation	Rockwell
		Strength	Strength		Hardness
		ksi Mpa	ksi Mpa	%	B Scale
1020	HR	50 345	32 221	25	55
	CW	70 483	60 414	5	75
	SR	65 448	50 345	10	72
	A	48 331	28 193	30	50
	N	55 379	34 234	22	60
1025	HR	55 379	35 241	25	60
	CW	75 517	65 448	5	80
	SR	70 483	55 379	8	75
	A	53 365	30 207	25	57
	N	55 379	36 248	22	60
1035	HR	65 448	40 276	20	72
	CW	85 586	75 517	5	88
	SR	75 517	65 448	8	80
	A	60 414	33 228	25	67
	N	65 448	40 276	20	72
1045	HR	75 517	45 310	15	80
	CW	90 621	80 552	5	90
	SR	80 552	70 483	8	85
	A	65 448	35 241	20	72
	N	75 517	48 331	15	80
4130	HR	90 621	70 483	20	89
	SR	105 724	85 586	10	95
	A	75 517	55 379	30	81
	N	90 621	60 414	20	89
4140	HR	120 855	90 310	15	100
	SR	120 855	100 689	10	100
	A	80 552	60 414	25	85
	N	120 855	90 621	20	100
HR-Hot Rolled
CW-Cold Worked
SR-Stress Relieved
A-Annealed
N-Normalized
