NSE Plastic Flow Control Pneumatic Fitting
Port mounted flow controls are ideal for adjusting the speed of extension and retraction for virtually any cylinder. Most double acting applications are best served with meter-out style flow controls which control the flow of exhaust as it leaves the cylinder. By reducing the exhaust air flow rate, the flow control reduces the speed of the cylinder rod travel. The finely threaded stem allows the gradual adjustment of controlled flow to match system requirements.
Features:
1. Compact size
2. Lightweight plastic body
3. Meter out functionality
4. Free flow in opposite direction
5. Knurled knob or screwdriver slot adjustment.
Technical data of Pneumatic Hose Fittings:
|
Material
|
Plastic / Brass
|
|
Threaded Connection
|
BSP
|
|
BSPP
|
|
|
Metric Thread
|
|
|
NPT
|
|
|
Working Pressure
|
0 to 0.8MPa
|
|
Connecting Tube
|
PA
|
|
PU
|
|
|
Connecting Diameter Tube
|
3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm (Outer Diameter)
|
|
Medium
|
Compressed Air
|
|
Working Temperature
|
~60℃
|

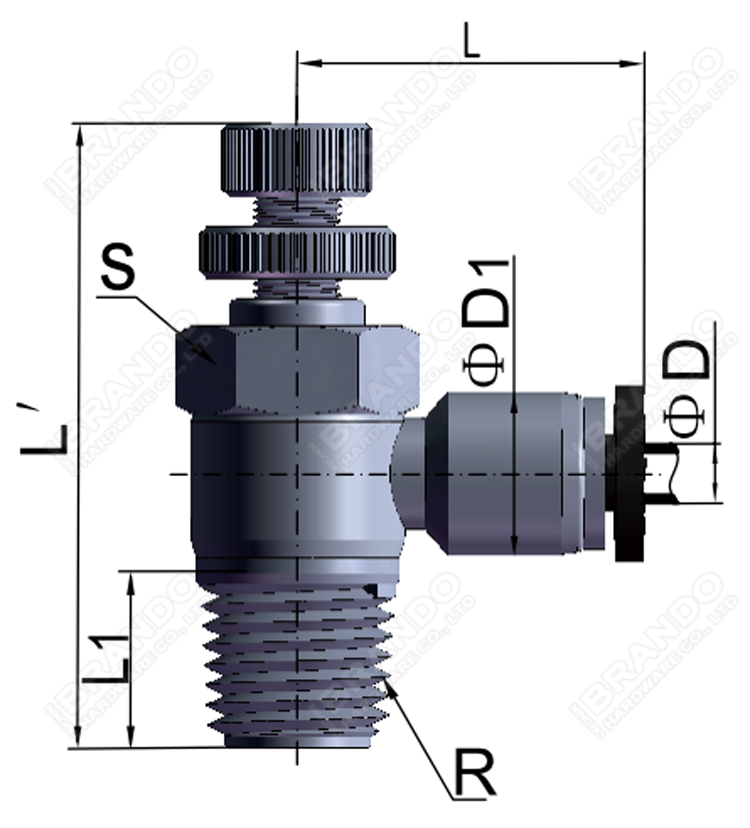

Specifications of NSE Pneumatic Flow Control Fittings:
|
Model No
|
R
|
φD
|
φD1
|
L1
|
L
|
L'
|
S
|
|
NSE4
|
M5X0.8
|
4
|
11
|
4
|
21
|
29
|
8
|
|
M6X1
|
4
|
21
|
29
|
8
|
|||
|
R1/8''
|
8
|
23
|
35
|
12
|
|||
|
R1/4''
|
10
|
26
|
42
|
15
|
|||
|
NSE6
|
M5X0.8
|
6
|
13
|
4
|
22
|
29
|
8
|
|
M6X1
|
4
|
22
|
29
|
8
|
|||
|
R1/8''
|
8
|
24
|
35
|
12
|
|||
|
R1/4''
|
10
|
26
|
42
|
15
|
|||
|
R3/8''
|
12
|
28
|
46
|
19
|
|||
|
NSE8
|
R1/8''
|
8
|
14
|
8
|
26
|
35
|
12
|
|
R1/4''
|
10
|
29
|
42
|
15
|
|||
|
R3/8''
|
12
|
30
|
46
|
19
|
|||
|
R1/2''
|
13
|
33
|
52
|
24
|
|||
|
NSE10
|
R1/8''
|
10
|
18
|
8
|
30
|
35
|
12
|
|
R1/4''
|
10
|
32
|
42
|
15
|
|||
|
R3/8''
|
12
|
33
|
46
|
19
|
|||
|
R1/2''
|
13
|
36
|
52
|
24
|
|||
|
NSE12
|
R1/4''
|
12
|
21
|
10
|
33
|
42
|
15
|
|
R3/8''
|
12
|
35
|
46
|
19
|
|||
|
R1/2''
|
13
|
37
|
52
|
24
|
