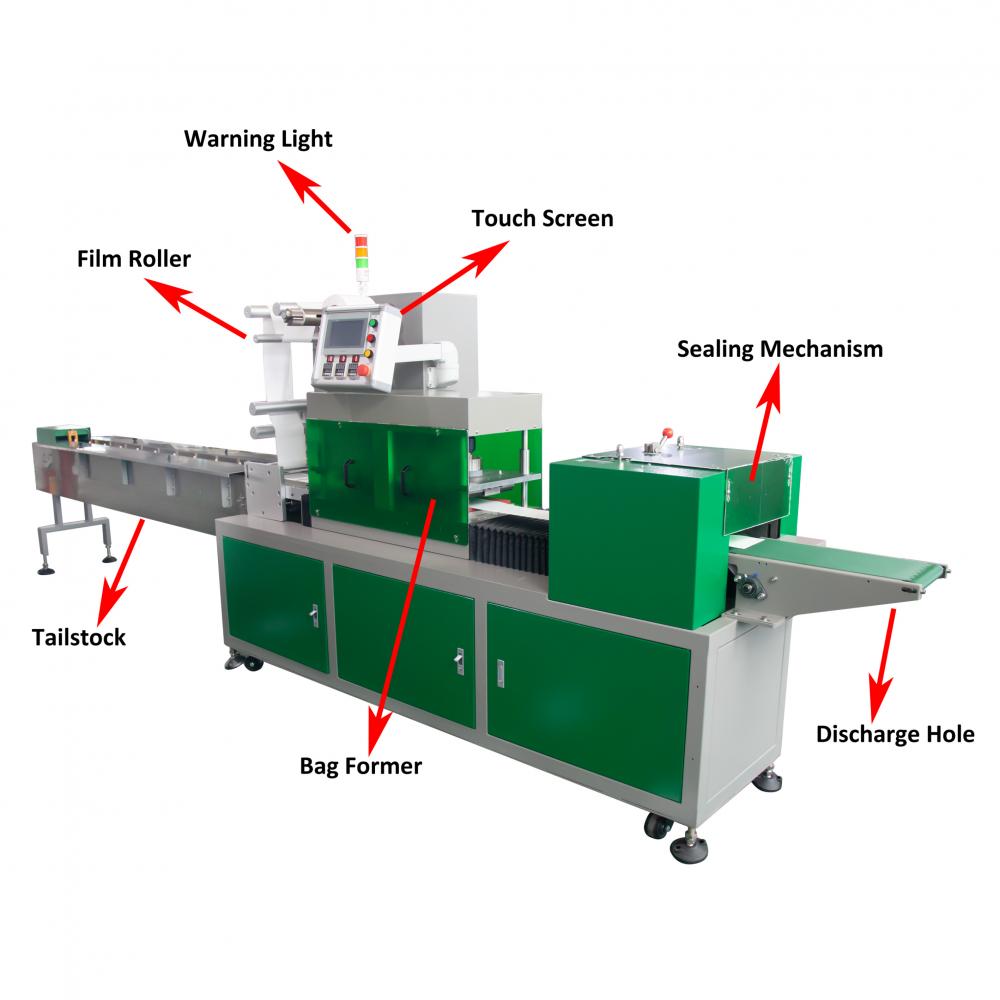

Four-side Sealing Packing Machine
△ Programmable control, using PLC programmable control and servo motor drive to program the entire machine operation.
△ Touch screen display, the host speed, set bag length, cutter, heat sealing and feeding time, and output will all be displayed on the screen, making it clear at a glance.
△ Graphic and text matching: High-precision photoelectric eye tracking color mark, accurate graphic and text matching.
△ Automatic temperature control, the heat sealing part adopts two sets of temperature controllers to automatically control the temperature to improve the sealing quality.
|
Model
|
SBF-250
|
|
Package length
|
100-200mm(can be customized)
|
|
Package width
|
100-250mm(can be customized)
|
|
Package thickness
|
1-10mm(can be customized)
|
|
Packing speed
|
50-150bags/min(related to products' size)
|
|
Compressed air
|
0.3m³/mi
|
|
Air pressure
|
0.5~0.7Mpa
|
|
Film width
|
250mm
|
|
Power
|
220V,50Hz, 9.3KW
|
|
Machine size
|
5148*876*1552mm
|
|
Machine weight
|
1200Kg
|
Dongguan Chanfer Intelligent Packing Technology Co., Ltd.
was founded in 2009 ,located in Dongguan City ,Guangdong province , We dedicate ourselves to production of servo Horizontal Packing Machine, automatic bagging machine, Automatic Card Friction Feeder machine, Heat Shrink Machine, Carton Sealer, Banding Machine and Packing Processing service for over 10 years. We certificated with C E is for the high end to basic needs with high quality service and continuously innovation as for be the leading brand of Packaging Machinery !
