ASME SA209 Alloy Steel Boiler Pipe
ASME SA209 Alloy Steel Boiler Pipe conforming to ASME SA209 standard is the core alloy pipe for high-end Boiler systems. As a perfect combination of professional Alloy Steel Pipe and Boiler Pipe, through precise alloy ratio, it has excellent high-temperature creep resistance and oxidation corrosion resistance, and can operate stably for a long time under extreme working conditions of high-voltage power station boilers and large industrial high-temperature boilers, ensuring efficient heat energy transmission.
Compared with the conventional Carbon Steel Pipe, it has better strength and durability in high-temperature and high-pressure environments and is suitable for boiler systems with higher parameters. For the low-temperature preheating section of the boiler, it can be used in combination with Low Temperature Steel Pipe to form a full-condition adaptation solution. Meanwhile, it belongs to the category of High Temperature Steel Pipe itself and can directly withstand the high-temperature shock in the core area of the boiler. It also has the precise size control of Precision Steel Pipe, the smooth inner wall reduces heat energy loss, the high interface fit effectively eliminates the risk of leakage, strictly meets the strict requirements of ASME standards for high-end boiler pipe materials, and provides safe and reliable support for high-parameter boiler projects.
ASME SA209 Alloy Steel Boiler Pipe conforming to ASME SA209 standard is the core alloy pipe for high-end Boiler systems. As a perfect combination of professional Alloy Steel Pipe and Boiler Pipe, through precise alloy ratio, it has excellent high-temperature creep resistance and oxidation corrosion resistance, and can operate stably for a long time under extreme working conditions of high-voltage power station boilers and large industrial high-temperature boilers, ensuring efficient heat energy transmission.
Compared with the conventional Carbon Steel Pipe, it has better strength and durability in high-temperature and high-pressure environments and is suitable for boiler systems with higher parameters. For the low-temperature preheating section of the boiler, it can be used in combination with Low Temperature Steel Pipe to form a full-condition adaptation solution. Meanwhile, it belongs to the category of High Temperature Steel Pipe itself and can directly withstand the high-temperature shock in the core area of the boiler. It also has the precise size control of Precision Steel Pipe, the smooth inner wall reduces heat energy loss, the high interface fit effectively eliminates the risk of leakage, strictly meets the strict requirements of ASME standards for high-end boiler pipe materials, and provides safe and reliable support for high-parameter boiler projects.
Details of ASME SA209 boiler tubes are as follows:
Manufacturing Process
Steel Refining: Made of killed steel.
Tube Fabrication: Made by seamless tube process, can be hot-finished or cold-finished tubes, as specified.
Dimensions
Outer Diameter: Generally 1/2 inch to 5 inches (12.7 mm to 127 mm).
Wall Thickness: Minimum wall thickness is 0.035 inches to 0.500 inches (0.9 mm to 12.7 mm).
Length: Usually 6 meters or specific lengths as required, also available in single random lengths or double random lengths, etc., up to 25 meters.
Heat Treatment
Hot-finished tubes: should be heat treated at 1200°F (650°C) or higher.
Cold Finished Pipe: After final cold working, the pipe shall be heat treated at 1200°F (650°C) or higher, or it may be supplied in the fully annealed, isothermally annealed, or normalized and tempered condition.
Testing
Tensile Tests: Tensile tests shall be conducted on one specimen for each lot not exceeding 50 and on specimens from two tubes for each lot exceeding 50.
Flattening Tests: Flattening tests shall be conducted on one specimen at each end of each finished tube.
Expansion Tests: Expanding tests shall be conducted on one specimen at each end of each finished tube.
Hardness Tests: Brinell or Rockwell hardness tests shall be conducted on specimens from two tubes in each lot.
Product Identification
In addition to the markings specified in Specification A1016/A1016M, the markings shall include whether the tube is hot finished or cold finished.
Packaging and Transportation

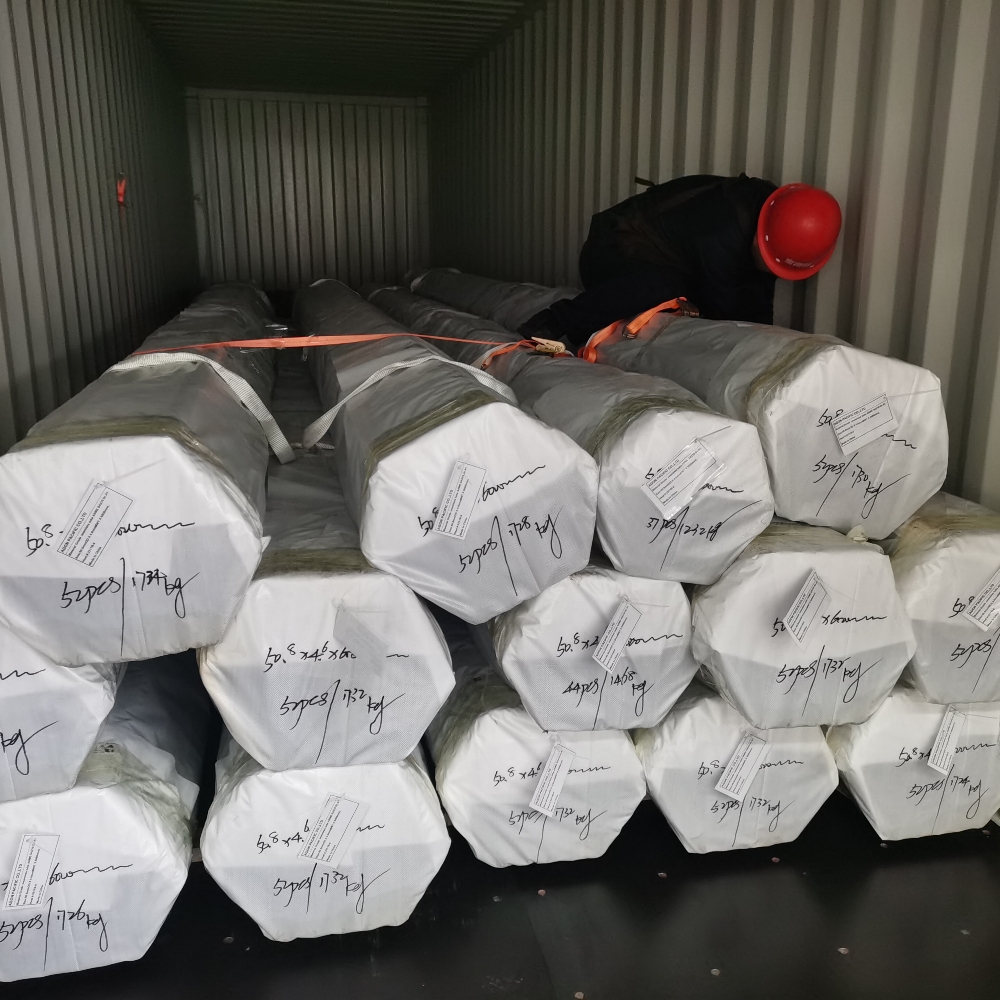

Packaging: usually in bundles (hexagonal), wooden boxes, crates (steel/wood), etc., and can also be packaged as required.
Transportation requirements: During transportation, care should be taken to prevent the steel pipe from collision, scratches and corrosion. When storing, the steel pipe should be stored in a dry, well-ventilated place to avoid moisture and rust
Baodely Huaian Metal Technology Co., Ltd. is a company specializing in the production and sale of precision seamless steel pipes, producing a variety of steel pipes such as Carbon Steel Pipe, Low-Temperature Steel Pipe, Boiler Pipe, Alloy Steel Pipe and Precision Steel Pipe.
Our quality and price are very advantageous among peers. If you have any needs, please contact us.
