Terminal Blocks: The Hidden Heroes of Electrical Systems

10 month ago

26 0 

Jiangmen Krealux Electrical Appliances Co.,Ltd.

6 year

Product details

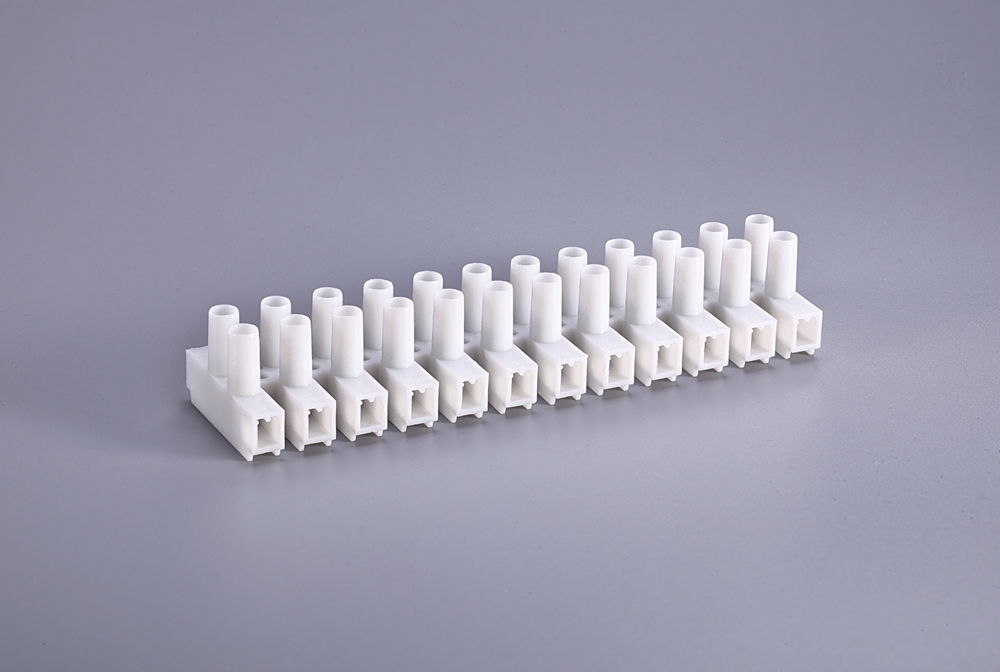

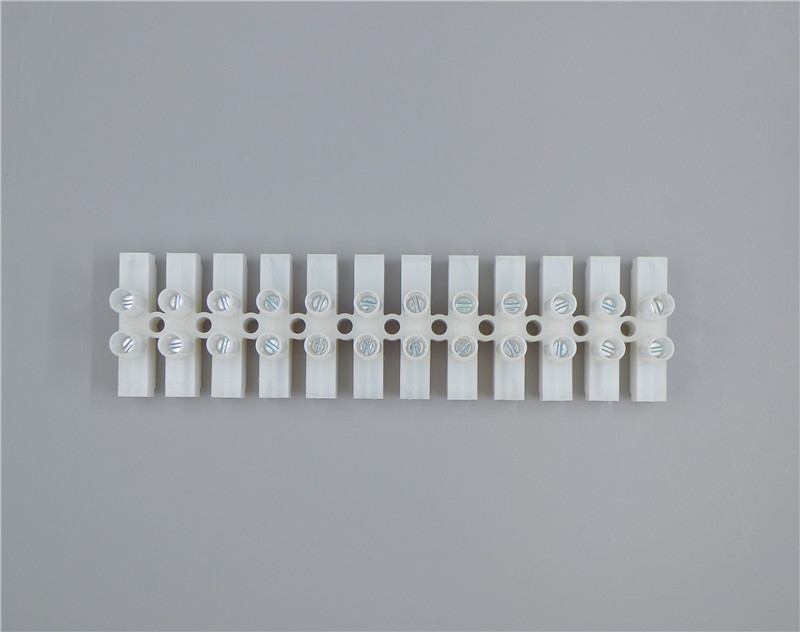

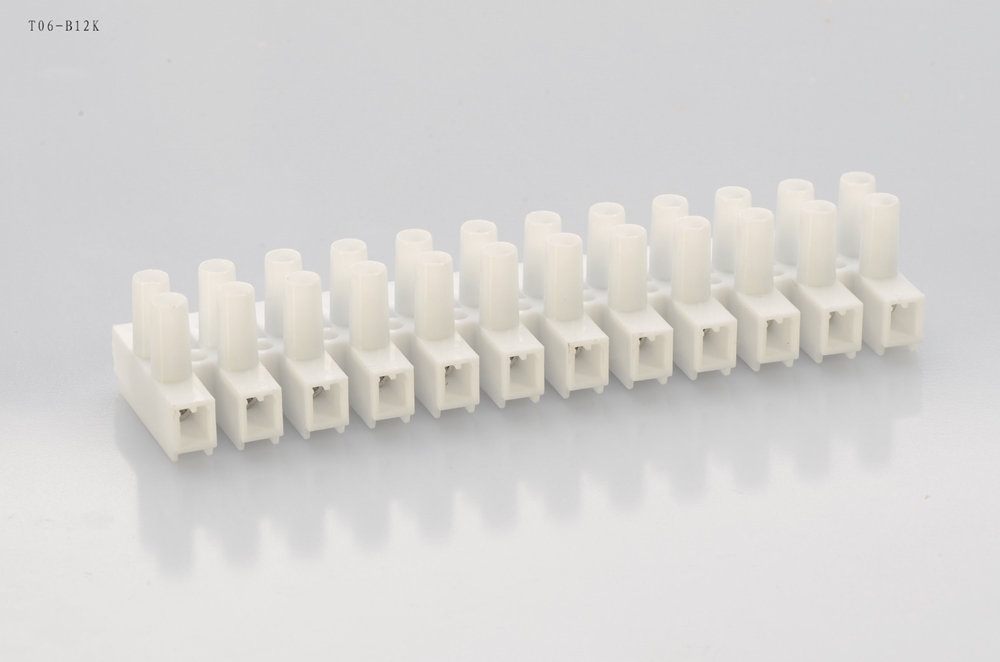

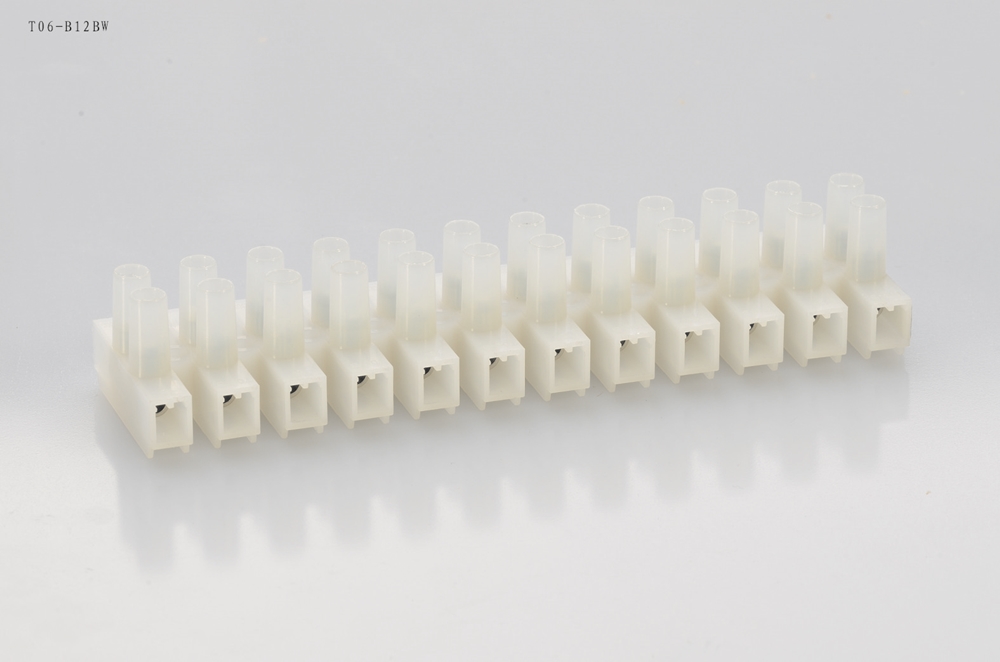

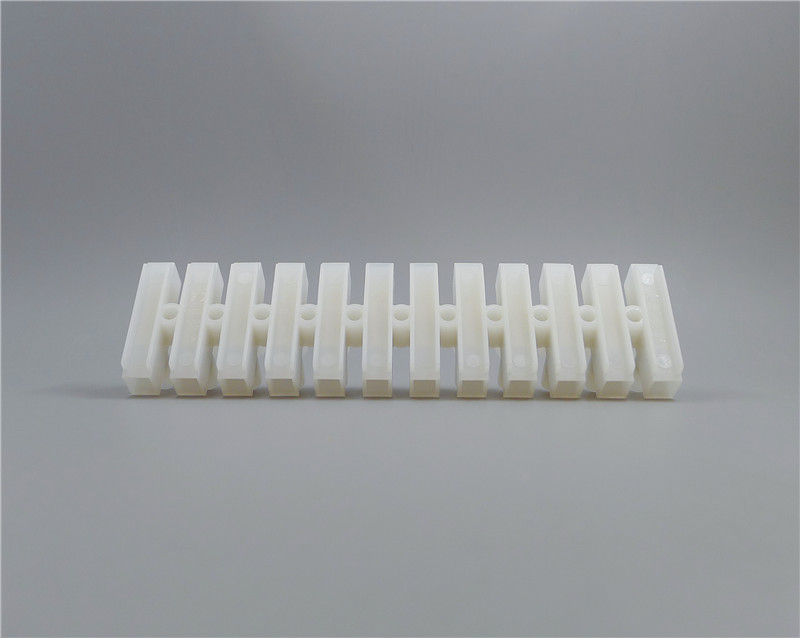

BELEKS Polyamide66 terminal blocks, renowned for their robust durability and excellent electrical insulation properties, are designed with a focus on enhanced safety. The incorporation of longer creepage distances within these terminal blocks significantly boosts their resistance to electrical arcs and leakage currents, making them ideal for high-voltage or challenging environmental applications. The Polyamide 66 material ensures long-term stability and resistance to chemicals, temperature fluctuations, and mechanical stress. This combination of features makes T06 Series terminal blocks a reliable choice for safeguarding electrical connections and ensuring uninterrupted power flow in various industries.

Specifications

Item No.		T06-B12
Electrical Data
		IEC/EN
Rated Voltage (V)		750
Rated Current (A)		32
Ambient Temperature	Polypropylene	T85
	Polyamide 66	T110
Connection Data
		IEC/EN
Cross Section	Solid conductor	1.0-4.0mm²
	Stranded conductor	1.0-4.0mm²
	Flexible conductor	1.0-4.0mm²
Strip length (mm)		7
Means of connection		screw fixed
Screw		M3
Rewirable		√
Number of terminals		multiway
Number of connection points		1-12
Means of Fixing
screw fixed
Materials
Insulation Materials	Designation	Polyamide 66, Polypropylene
	Flammability class	UL 94V-2
Clamping Unit		brass
Packing Quantity (pcs/carton)
500

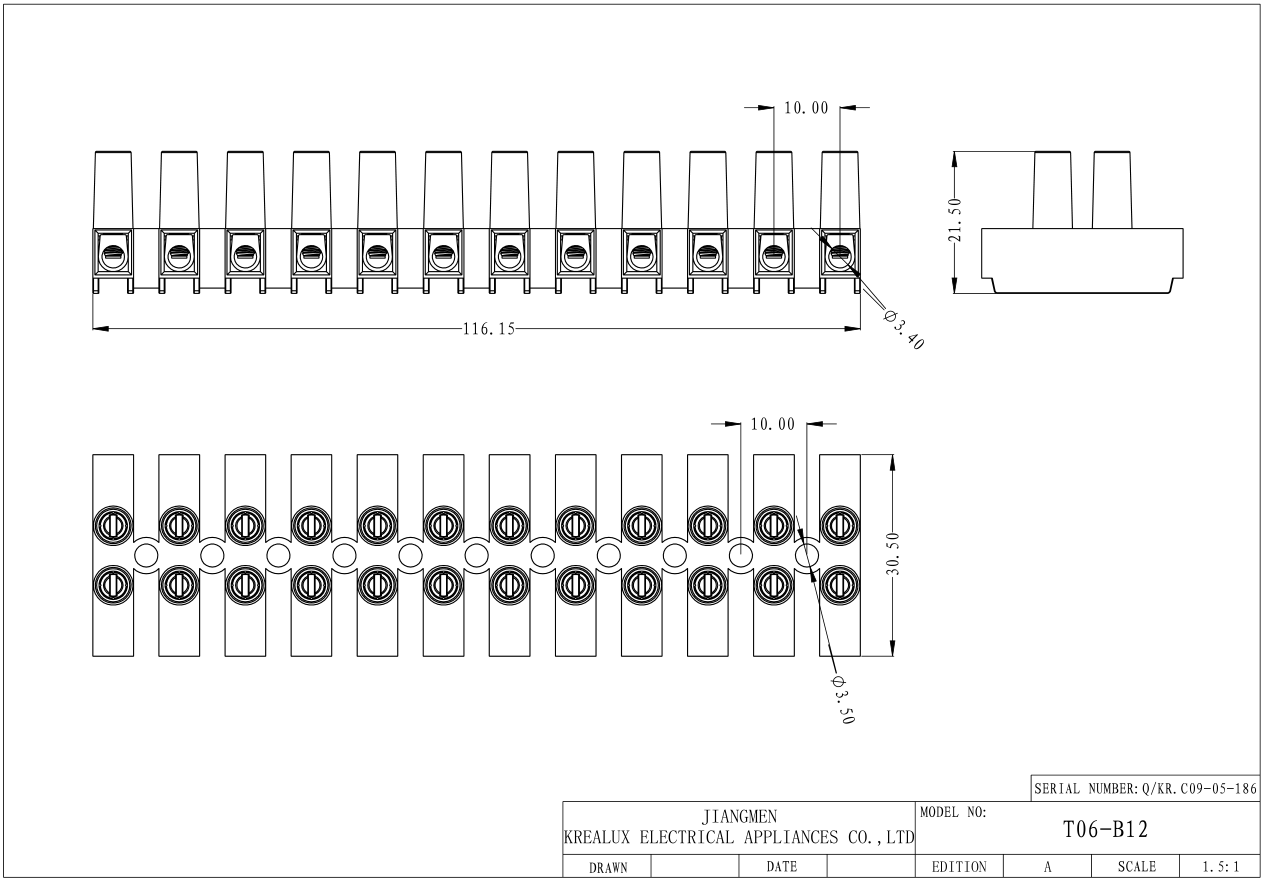

Drawing T06-B12-DRAWING
