Product details

Diameter Range (mm): 400 450 500 560 630 710 800mm  wall thickness by request

Main Extruder Motor Power: 110kw

Line Space Occupation: 36mx4mx3m

Capacity: 700-800kg/h

Pvc Big Diameter Pipe Line


PVC Pipe Application:
Water Supply Pipe&Drainage pipe&Sewage Pipe

Production Flow:
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → (Spray Cooling Tank) →Printer → Haul-off Unit →cutter →stacker

Equipment Features:
PVC Pipe Diameter Range:φ500mm-φ800mm
The Vacuum Calibration Tank will be equipped with different quantity and power of water pump and vacuum pump for different pipe diameter
For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
6 Caterpillar Hauloff unit with individual motor drive
Planetary cutter can be choosed according to different diameter pipe.

Equip with special mould and other device,it can produce inner wall sprial pipe and Inner wall hollow pipe and three layer pipe.
Easy Operation,Reliable performance,High Extrusion Efficiency,Easy Maintenance


EXTRUSION PROCESS



Pvc Pipe With Chamfering

Details Images

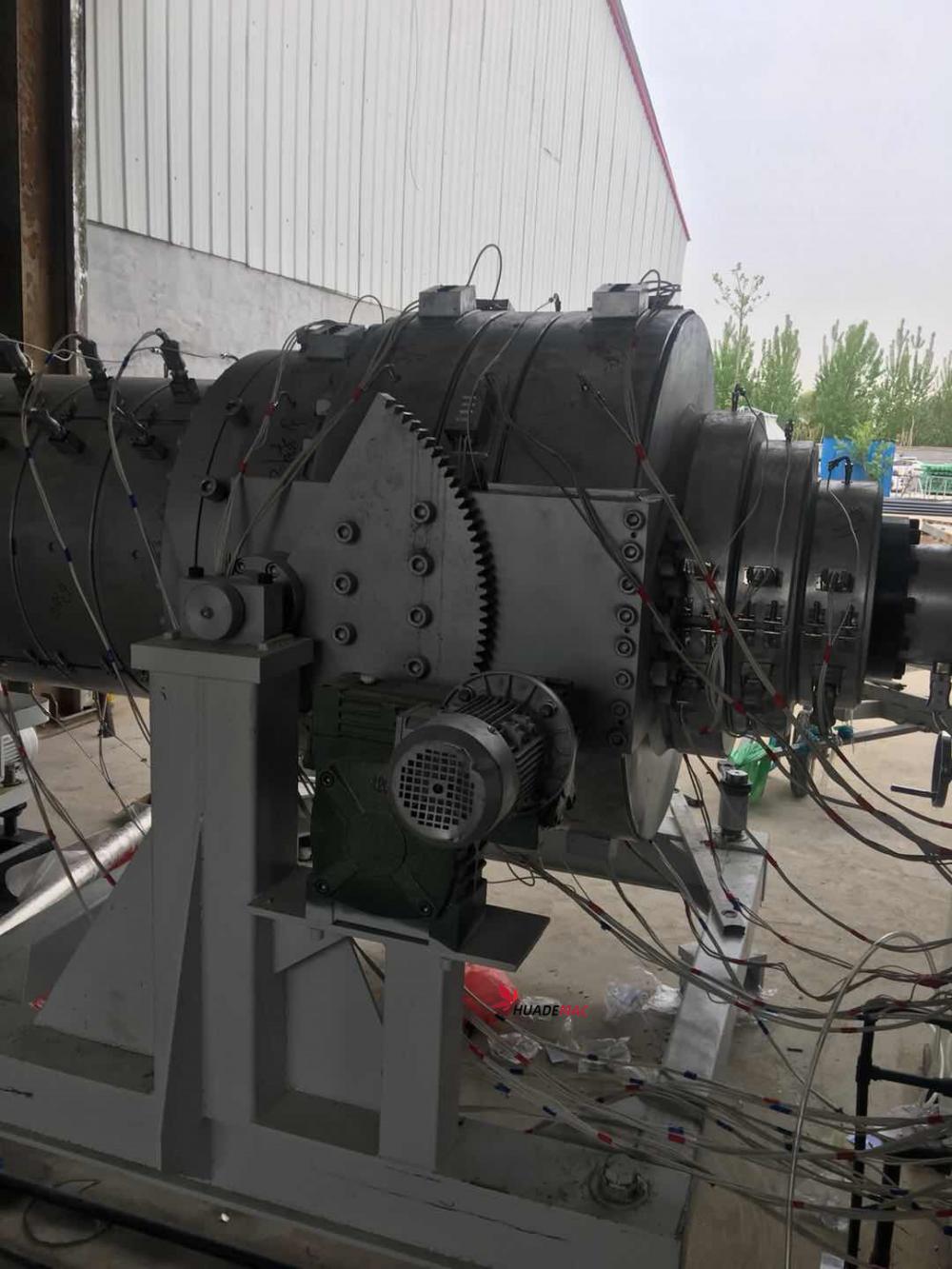

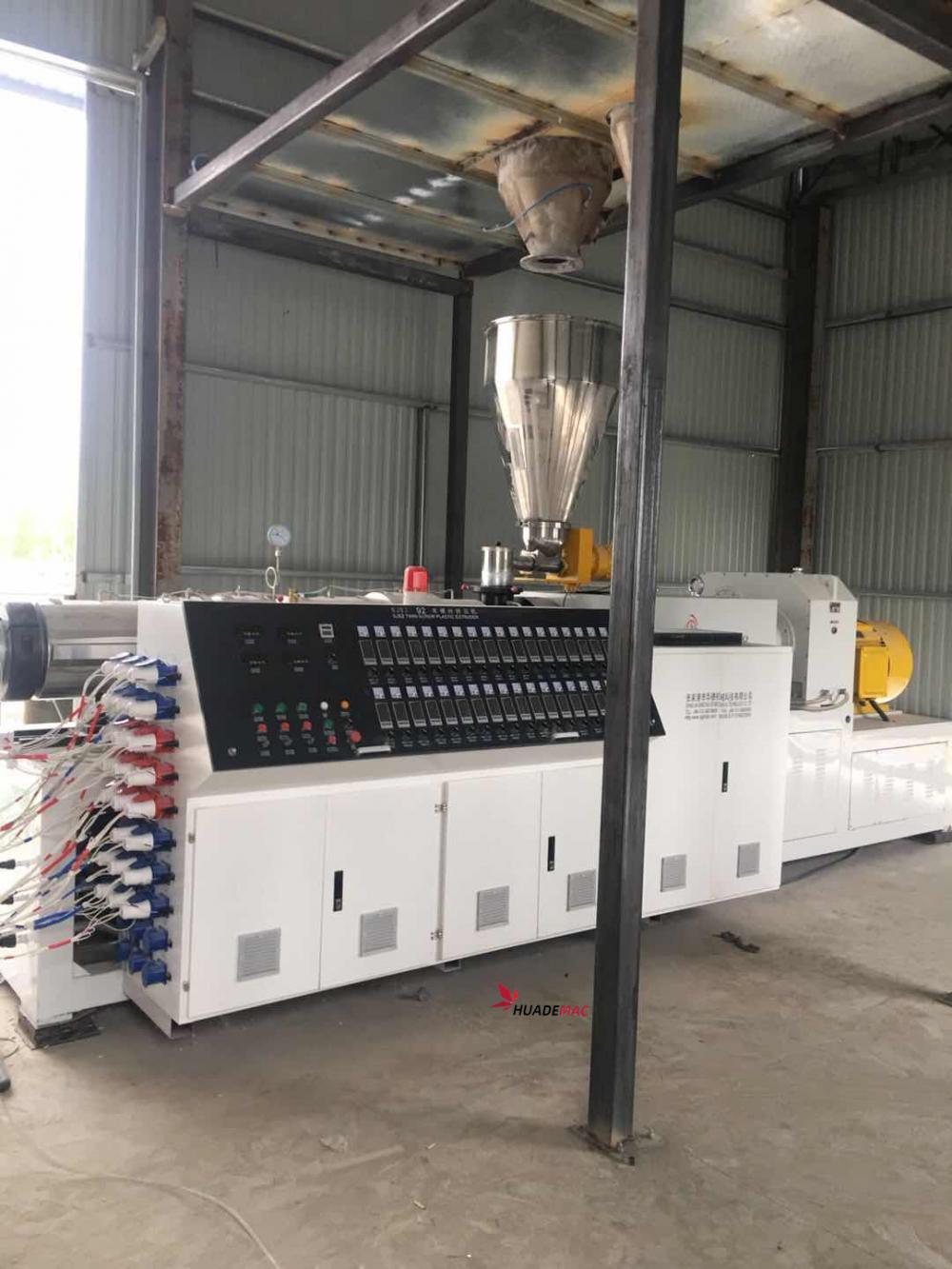

SJZ92/188 twin screw extruder

Pvc 630 03

Conical twin screw extruder or parallel twin screw extruder can be applied to produce PVC pipe.With latest technology, to lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing effect and high capacity.


Motor power: 110KW

World famous brand electrical component such as Siemens, Schneider, ABB etc;

High torque gearbox with adopts NSK/SKF bearing;

Siemens original motor achieved global after service;

Bimetallic screw and barrel;





Extrusion die head apply bracket structure, each material flow channel is placed evenly.

Each channel after heat treatment, mirror polishing and chroming to ensure material flow smoothly.

Die head is modular design,easy for changing pipe sizes, assembling, dismantle and maintenance.

Pvc 630 11

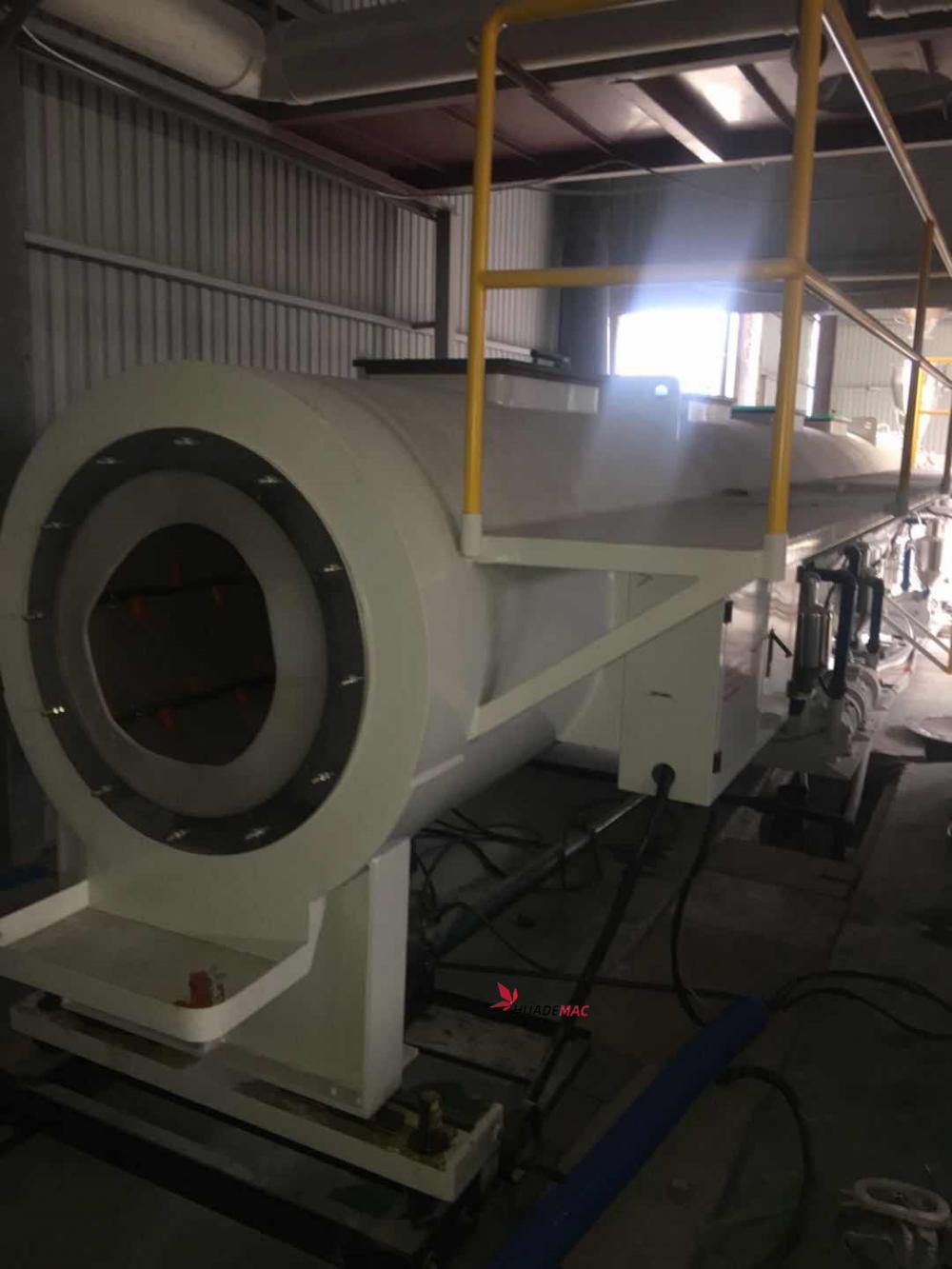

Vacuum calibration tank is used to shape and cool pipe, so as to reach standard pipe size.

We use double-chamberstructure.First chamber in short length, to ensure very strong cooling and vacuum function.

As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better forming and coolingof pipe.

Pvc 630 10


6 Caterpillar Haul off unit provides sufficient traction force to pull pipe stably.

According to different pipe sizes and thickness,our company will customize traction speed, number of claws, effective traction length.

To ensure matchpipe extrusion speed and forming speed, also avoid deformation of pipe during traction.

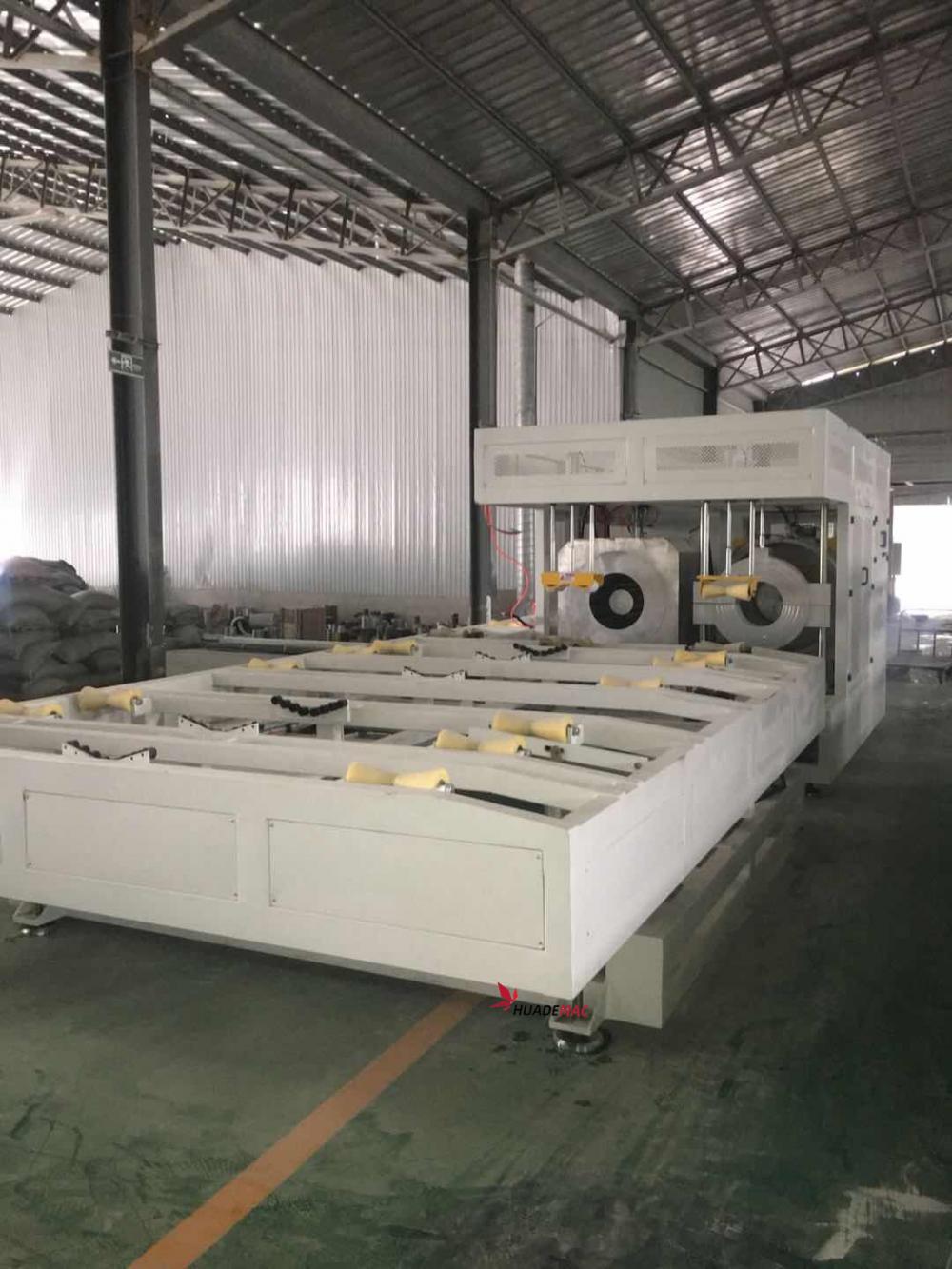

Pvc 630 06

Free Cutter 201911301606265


Chamfering 20191

Planetary  Cutter controlled by Siemens PLC, working together with haul off unit to have precise cutting.

Customer can set the length of pipe they want to cut.Multi-feed-in actions for the accomplishment of one cutting process

(protect blades and saws, prevent from blade and saws stuck for thick pipe and cut face of pipe is smooth).


Pvc 630 08

PVC on-line belling  machine to make socket at pipe end which is easy for pipe connection.

There are three types of belling type: U type, R type and Square type.

We provide belling machine which can finish belling of pipe on

line fully automatic.From min size 16mm to max size 800mm, can with multi heating oven and belling station.

Pvc Pipe Auxiliary
