Diameter Range (mm): 63 75 90 110 140 160 200   wall thickness by request

Main Extruder Motor Power: 37kw

Line Space Occupation: 28mx4mx3m

Capacity: 150-3250kg/h



Product Description



Application of PVC,UPVC Wall Pipe extrusion production line / UPVC pipe making machine:

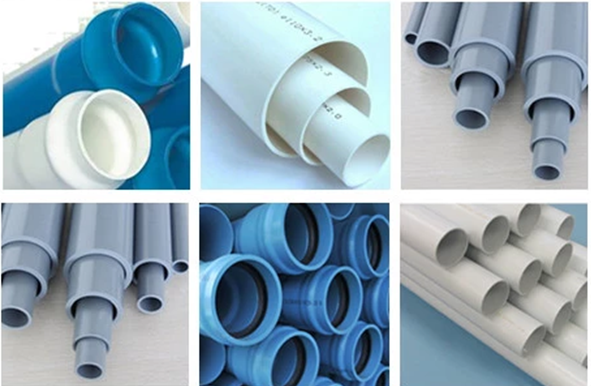

Applied for manufacture of caliber PVC,UPVC water supply and drain pipes,electric conduit pipe, etc



Working flow of PVC,UPVC Wall Pipe extrusion production line / UPVC pipe making machine

EXTRUSION PROCESS

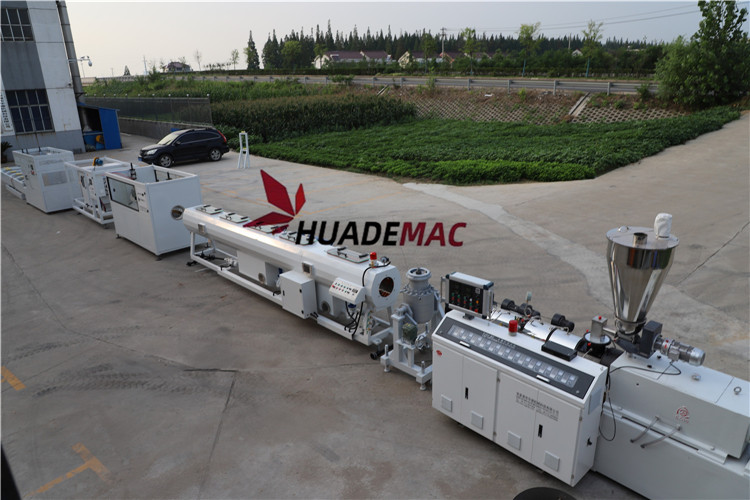

PVC pipe 1_20200720144621



Img Pvc 75 250 Line

Pipe or Profile extrusion is extrusion of a shaped product that can be a variety of configurations but does not include sheet or
film products. Profile extrusion can include solid forms as well as hollow forms. Products ranging from tubing to window frames to
vehicle door seals are manufactured this way and considered profile extrusion.

To process hollow shapes a pin or mandrel is utilized inside the die to form the hollow sections. Multiple hollow sections require
multiple pins. To create these hollows a source of air is required to allow the center of the product to maintain shape and not
collapse in a vacuum. Usually an air source will be utilized to keep the correct airflow in the cavity.


Details Images

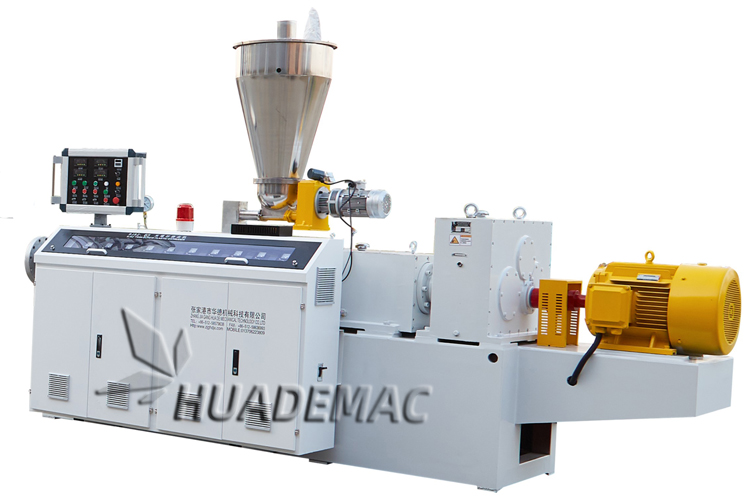

SJZ65/132 twin screw extruder

750 65 Extruder 1


750 65 Extruder 2


Conical twin screw extruder or parallel twin screw extruder can be applied to produce PVC pipe.With latest technology, to lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing effect and high capacity.



Diehead 750 250 0165


 Extrusion die head apply bracket structure, each material flow channel is placed evenly.

Each channel after heat treatment, mirror polishing and chroming to ensure material flow smoothly.

Die head is modular design,easy for changing pipe sizes, assembling, dismantle and maintenance.

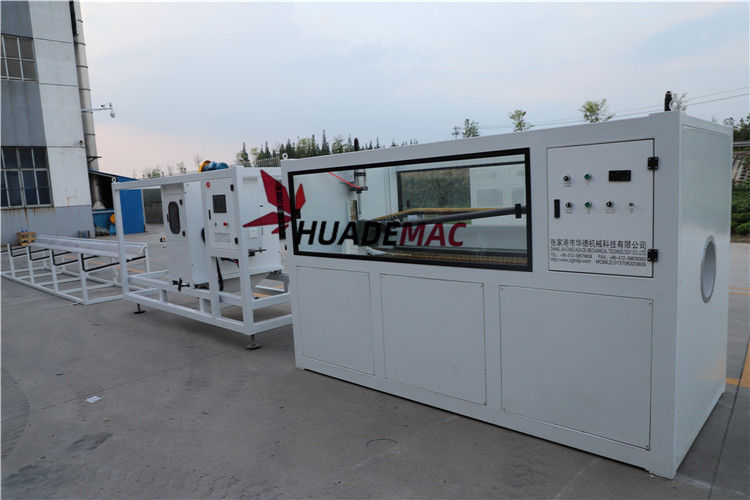

Img 0168

Vacuum calibration tank is used to shape and cool pipe, so as to reach standard pipe size.

We use double-chamberstructure.First chamber in short length, to ensure very strong cooling and vacuum function.

As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better

forming and coolingof pipe.

Img 0170


3 Caterpillar Haul off unit provides sufficient traction force to pull pipe stably.

According to different pipe sizes and thickness,our company will customize traction speed, number of claws, effective traction length.

To ensure matchpipe extrusion speed and forming speed, also avoid deformation of pipe during traction.

Planetary Cutter 0149

Planetary  Cutter controlled by Siemens PLC, working together with haul off unit to have precise cutting.

Customer can set the length of pipe they want to cut.Multi-feed-in actions for the accomplishment of one cutting process

(protect blades and saws, prevent from blade and saws stuck for thick pipe and cut face of pipe is smooth).

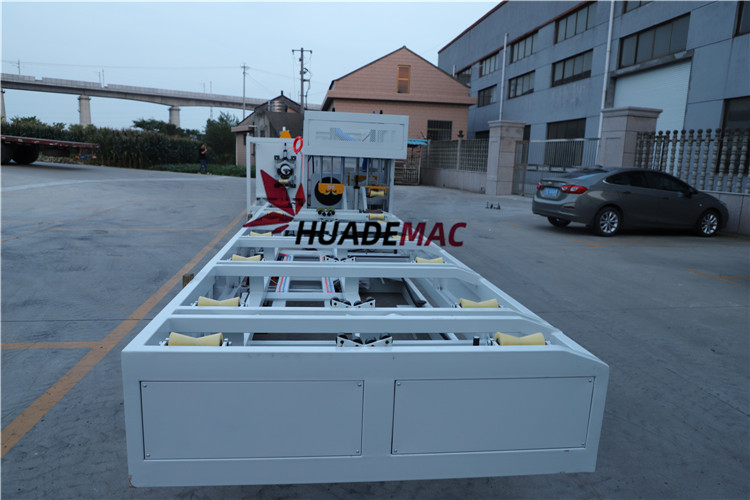

Img 0193

PVC on-line belling  machine to make socket at pipe end which is easy for pipe connection.

There are three types of belling type: U type, R type and Square type.

We provide belling machine which can finish belling of pipe on

line fully automatic.From min size 16mm to max size 800mm, can with multi heating oven and belling station.
