Cashew vacuum packing machine

2 year ago
355 0
Product details

Vertical roll film type vacuum packaging machine for 10-25kg

Brief Introduction:

ZD1500 vffs vacuum packing machine is suitable for the pillow or gusset bag vacuum sealing packing for all kinds of granule products, for example rice, beans, seeds, coffee, pe granule, vergetables, fruits, etc. The packaging machine can be equipped with single head linear weigher and horizontal sealing system with a vacuum system for vacuum bag package.

This unit is composed of one weighing machine, one vertical filling packaging machine, one platform and one high inclination-angle elevator. It integrates the functions of vacuum, feeding, metering, bag-making, packaging, sealing, printing, punching and countering, has automatic film position control function, both the horizontal sealing and film pull mechanisms adopt servo motor for transmission so as to guarantee high efficiency of the machine. It could be ideally combined with the other machines, such as auto bagging machine.

The machine can pack two type of bag, gusset bag and pillow bag. It can second time film pulling function and do Max bag length is 920MM.

Features:

High speed: Around 8~15 bags/min(according to different weight).

Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.

Easy to adjust: only about 10 minutes to change different pouches.

Frequency control: speed can be adjusted by frequency conversion within the range.

High Automation: unmanned in weighing and packing process, machine alarm automatically when failure.

Safety and Hygiene:

No film, machine will alarm.

Machine alarm and stop when the inadequate air pressure.

Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.

Hygienic construction, the product contact parts are adopted sus304 stainless steel.

APPLICATION:

This vacuum packing machine is suitable for granule products, Such as grains, rice, dried fruits, beans, nuts, salt, sugar, tea, seeds, detergent powder, etc. So this machine can also be customized as Rice Packing Machine and beans packaging machine, etc.

Sample bag type

vacuum bags for pillows

vertical vacuum packing machine5kg rice packing machine

Detailed description

vacuum sealer bags for pillows

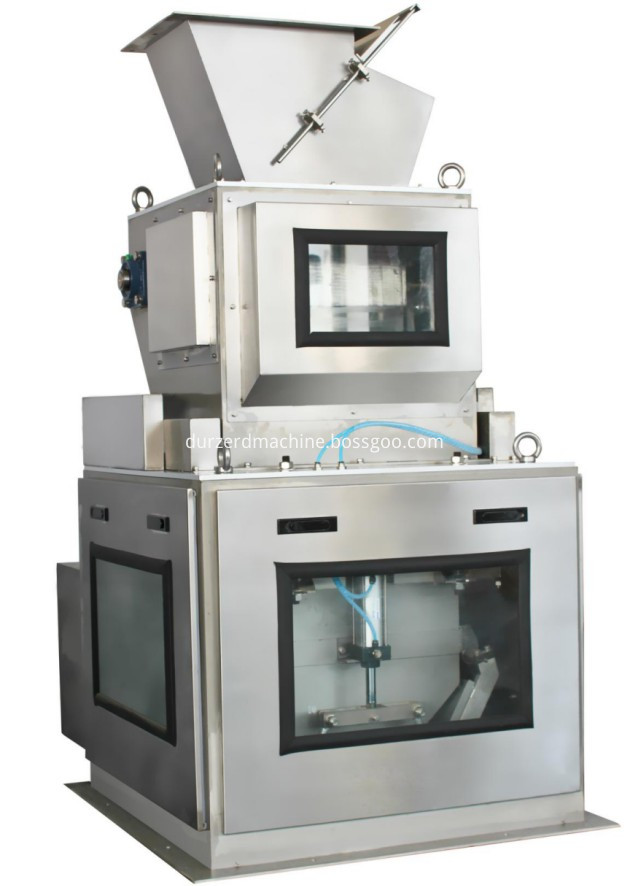

Single head weigher

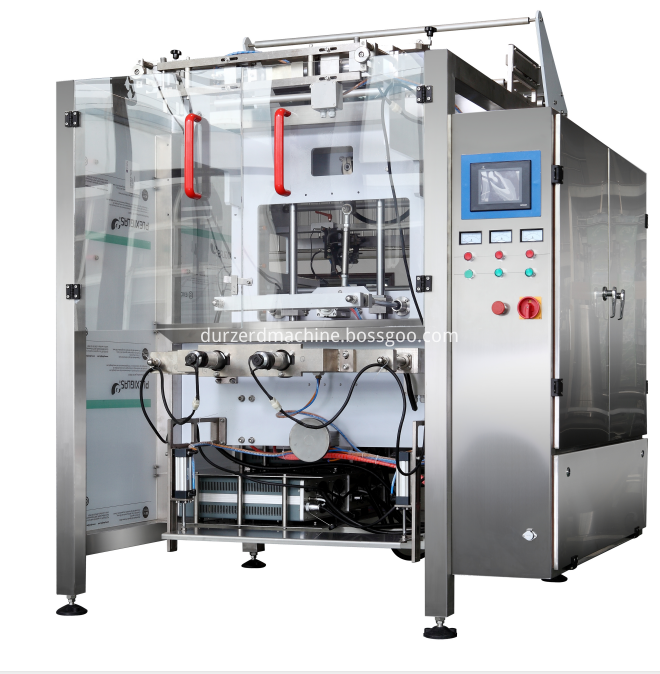

vffs packaging machine

Technical Parameters



Model:

ZD1500

Bag type

Pillow bag, Gusset bag(Option)

Capacity

10~25kg

Speed

8-15 (times/min) dependant on products characteristics and weighting range

Bag length

50-950mm

Bag width

80-730mm

Reel Film Width:

≤1500mm

Reel Outer Dia.

600mm

Reel Inner Dia.

75mm

Electrical

220V/50Hz, 1phase or per customer specification

Power

5.0KW

Air Pressure & Consumption

0.6 MPa 0.6 M3/min ( 87 Psi, 12.7cfm)

Footprint

(W x D x H)

1635 x 2155 X 2640 mm;

(5'4'' x 7'7'' x 8'8'')

Machine Weight

1200kgs


All Verical Models Technicial information form :

Model(Roll film width)

320

420

540

730

920

1100

1500

Bag Length(mm)

80-180

80-300

80-400

100-400

150~600

200~900

200-1000

Bag Width(mm)

45-150

50-200

80-250

180-350

150~450

150~530

200~730

Max Width of Roll(mm)

320

420

520

720

920

1100

1500

Packing Speed(bags/min)

20-55

20-80

20-100

20-100

10~90

10-80

5-50

Air Consumption(Mpa)

0.65

0.65

0.65

0.65

0.65

0.65

0.65

Gas Consumption(m3/min)

0.3

0.3

0.4

0.4

0.5

0.5

0.5

Power Voltage (v)

220v/380v

220V/380v

220v/380v

220v/380v

220v/380v

220v/380v

220v/380v

Power (kw)

3kw

2.2KW

4kw

5kw

5kw

6kw

6kw

Weight(kg)

 350

540

600

900

1000

1100

1200

10kg rice beans vacuum packing machine

Bag formers:

Packing and Delivery:




OUR SERVICE:

Pre-sale Service

1. Equipment model selection;
2. According to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.

5. Acceptance of the product;
6. Assist the client in drafting the construction plan;

Medium-sales Services
 Durzerd have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After-sales Service

1.One Year Warranty,As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement,Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
3.Engineer Asssignment,Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
4.Online Instruction,We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one trou-bleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
