Granule packing machine for 4 side sealing bag

2 year ago
340 0
Product details

Brief Introduction:

Multilane granule packing machine is suitable for the 4 sides sealing packing of granule materials. It can be expanded to 12 lanes at most. For granular materials of different shapes, different weighing machine need to be selected. There are generally three types, Linear Weigher Machine, measuring cup and combination weigher. The material conveying mechanism is generally Bucket Elevator Conveyor.

Automatically measuring volume, making bags, filling, sealing, cutting, printing the lot number and cutting easy tearing notches, making continuous sachet , finished product conveying.

Features:

1. PLC control system, wide vision touch screen with English/Chinese interface;

2. State-of-art but simple design, easy to operate and maintain;

3. Automatically measuring, bags making, filling ,sealing, cutting, printing lot number and cutting easy tearing notches;

4. Continuous bag/bag across, easy cutting, hole ponching (if needed);

5. Suitable for film like

Paper/polyethylene,cellophane/polyethylene,plated aluminum/polyethylene,BOPP/polyethylene,nylon/polyethylene

APPLICATION:

Multilane granule packing machine is suitable for granule products, Such as granule puffed chips, grains, dried fruits, beans, nuts, salt, sugar, tea, seeds, pepper,spice, etc.

 Multi lane coffee stick bag packing machine

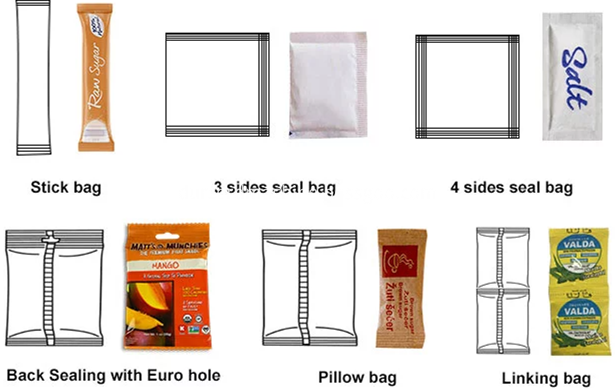

Sample bag type

Multi lane salt stick bag packing machine

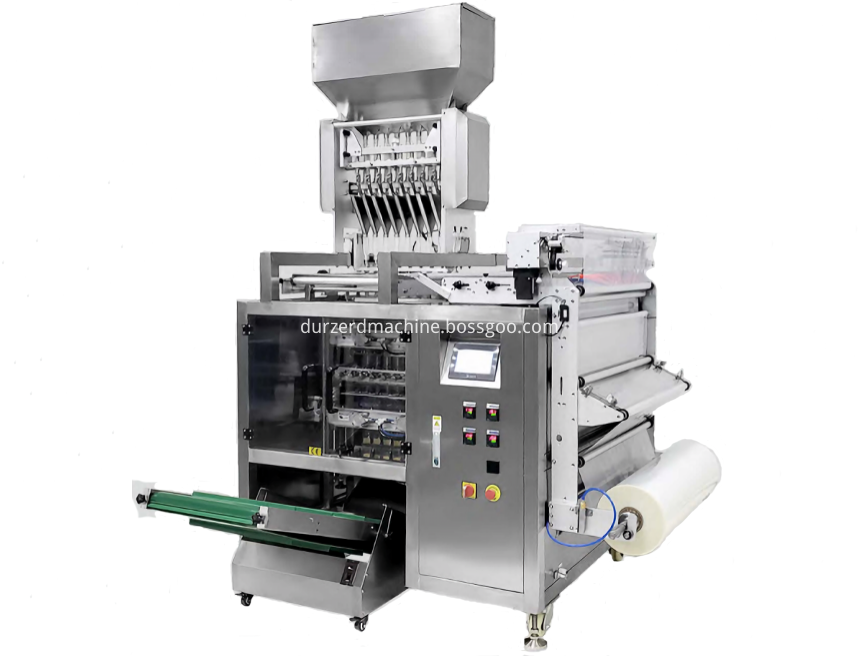

Multilane Granule Sachets Packing Machine description

Multi lane sugar stick bag packing machine


Technical Parameters

Model

ZD480K

ZD720K

ZD960K

Filling type

Granule

Granule

Granule

Capacity

Max 50 cycle/min

Lane number

2-6 Lane

3-8 Lane

4-12 Lane

Measuring method

Volumetric Cup / Weigher

Bags size

Length: 45--120mm

Width:40--120mm

Length: 45--120mm

Width:40--120mm

Length: 45--120mm

Width:40--120mm

Film width

Max.480 mm

Max.720 mm

Max.960 mm

Film thickness

0.07--0.10mm

Sealing type

4 sides sealing

Cutting type

Straight/Zig zag/Round/ Continuous cutting

Air consumption

0.8 MPA 0.8m3/min

Power source

2.8KW

4.1KW

5.5KW

Dimension

L950 x W1654x H1750mm

L1153 x W1654x H1750mm

L1415 x W1686x H2130mm

Weight

300kg

400kg

500kg
