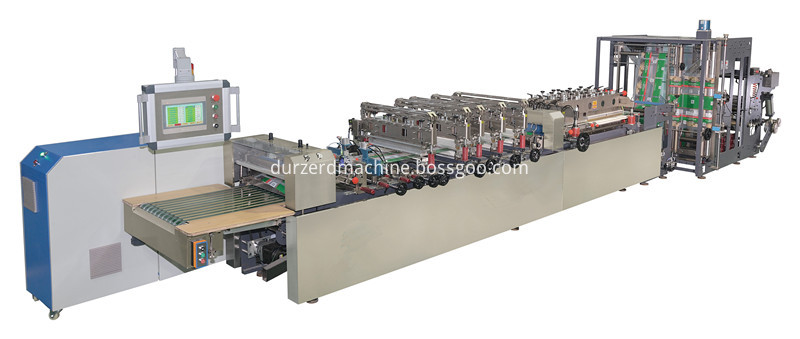

Stand up zipper bag making machine

2 year ago
331 0
Product details

Brief Introduction:

Pouch making machine is a new type of multifunctional composite bag making machine, which can produce 3-side sealing bags, 3-side zipper sealing bags, 4-side sealing bags, middle-sealing bags, and single-film stand-up bags. It is easy to operate and can quickly replace different types of bag making devices. The finished bags are suitable for packaging industry, such as Rotary Premade Bag Packing Machine and Doypack Pouch Machine.

Feature:

1. Advanced machine structure, perfect outlooking and high precision manufacturing.

2. High quality parts.

3. The whole process is controlled by industrial computer with high precision.

4. Main and minor traction can be set length, adopt AC servo motor and drive

5. Transverse position sets position, adopt Italy TL46-W sensor with high precision.

6. Heating board and sealing knife are made of AL magnesium alloy with high strength and high quality sealing.

7. The machine which is with times sending function can produce super longer packaging bag.

8. All electric parts and pneumatic parts adopt imported brand and oversea cooperation brand.

Suitable bag type:

Suitable for three side sealing with Sachets Packing Machine

 non woven bag machine

Plastic Bag Making Machine Detailed description

pouch making machine

 Detail Pictures

3 side seal pouch

Technical Parameters

Size Of Bag

75-600mm Three Side Sealing Bag Width

Second Time Sealing 340

(Pass 340mm By Using Time Sending)

Size Of Winging

Width 650mm-1240mm, Diameter  800mm

Capacity

Machine Speed:80-280 Cuts/Min

Bag Capacity:80-240 Cuts/Min

Feed Speed

46m/min

Main Motor Power

3KW

Heating Power

36.5KW

Size Of Machine (mm)

8500x1680x1760

Weight

3200kg
