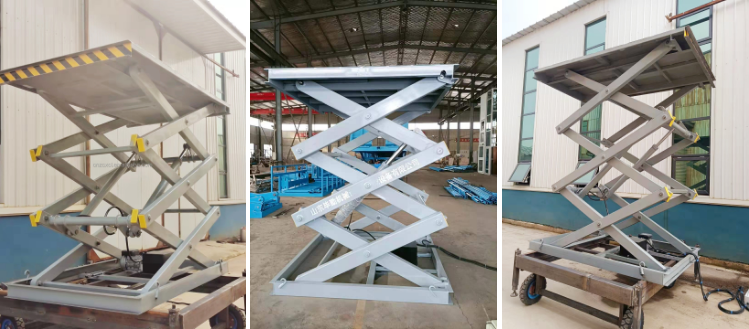

Stationary Scissor Lift
Zhongcan stationary scissor lift(fixed scissor elevate table) is fabricated the usage of highgrade of raw material for its shape and adopts overload protection tool inside the hydraulic gadget, owning advantages of strong shape, high load ability,and easy lifting.
|
Model |
Platform size
(mm)
|
Load weight
(kg)
|
Lift height
(m)
|
Dimension (m) |
Platform extension(mm) |
Self wight
(kg)
|
|
ZCEZD-6 |
2260*1130 |
230 |
6 |
2.47*1.17*2.29 |
900 |
1900 |
|
ZCEZD-8 |
2260*1130 |
230 |
8 |
2.47*1.17*2.31 |
900 |
2060 |
|
ZCEZD-10A |
2260*1130 |
230 |
10 |
2.47*1.17*2.43 |
900 |
2300 |
|
ZCEZD-10B |
2260*1130 |
320 |
10 |
2.47*1.17*2.43 |
900 |
2730 |
|
ZCEZD-12A |
2260*1130 |
230 |
12 |
2.47*1.17*2.55 |
900 |
2460 |
|
ZCEZD-12B |
2260*1130 |
320 |
12 |
2.47*1.17*2.55 |
900 |
2860 |
|
ZCEZD-3 |
1150*700 |
240 |
3 |
2.47*1.17*2.55 |
550 |
600 |
|
ZCEZD-4 |
1290*700 |
240 |
4 |
1.3*0.76*1.98 |
550 |
800 |
|
ZCYZD-6 |
2260*810 |
380 |
6 |
1.3*0.76*1.98 |
900 |
1860 |
Scissor lift tables are used for lifting and lowering goods at required heights in safe conditions for the operator. Main components are the top platform, the lower frame, the scissor system activated by one or more cylinders and hydraulic motor.Scissor lift tables have become a commonly used type of equipment in many different industries. In many cases, they represent the best solution for the manual load handling, in full observance of the safety standards with regards to functioning, cost-saving,safety and health of operators during work.
Zhongcan Machinery Co., Ltd. is a modern technology-based manufacturing enterprise specializing in the design, research and development, production, sales and after-sales service of lifting equipment. There are six series of more than fifty varieties. The main products are wheelchair lifts, home lifts, self-propelled lifts, mobile lifts, fixed docking lamps, mobile docking lamps, fixed scissor lifts, rail hydraulic lift platforms, aluminum alloy lifts, car lifts, crank arm lifts, etc.
FAQ
Q:Are you trading company or factory? We are the integration of factory and trading, we have our own sale-production-quality test-documentation-delivery-after-sale system.
*The general specification of the product is about 14 days after receiving the advance payment.
