Aluminum alloy mast hydraulic lift tables

3 year ago

174 0 

3 year

Product details

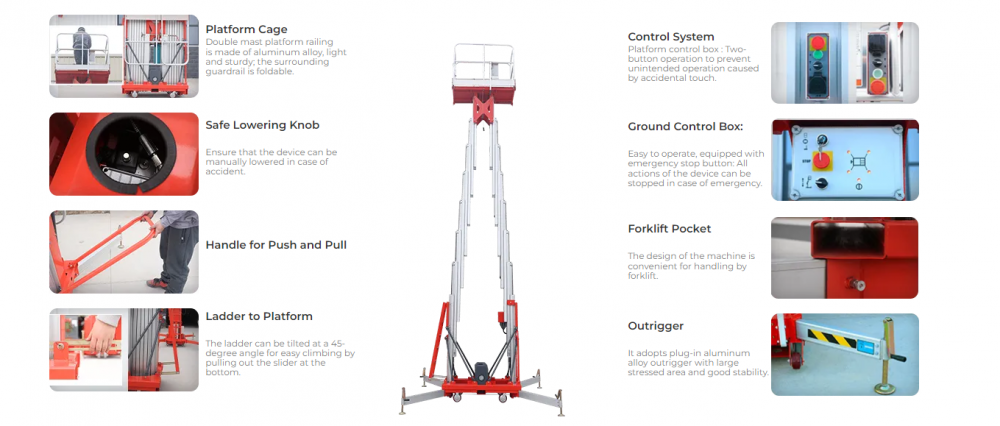

Double Mast Lift

Compared with Single Mast Lift, Hydraulic Double Mast Lift has a large load potential and a greater lifting height. This Vertical Double Mast Lift points brilliant stability, bendy operation and is handy to move.Aluminum Double Mast Lift are broadly used in factories, hotels, buildings, buying malls, stations, airports and stadiums for the set up and protection of electricity lines, lighting fixtures appliances, overhead pipelines, as nicely as cleansing at heights.

Vertical Mast Lift Price01102158

MODEL	PLATFORM HEIGHT (m)	LOAD (kg)	PLATFORM SIZE (mm)	VOLTAGE (V)	WEIGHT (AC) (kg)	WEIGHT (DC) (kg)	DIMENSION (mm)
ZCAM0.2-6	6	250	1,450*700	380/220/110	610	660	1,4508101,990
ZCAM0.2-8	8	250	1,450*700	380/220/110	645	695	1,4508101,990
ZCAM0.2-10	10.4	250	1,450*700	380/220/110	715	765	1,4508101,990
ZCAM0.2-12	12	200	1,450*700	380/220/110	750	800	1,4508101,990
ZCAM0.2-14	14	200	1,800*700	380/220/110	892	942	1,8808102,680
ZCAM0.2-16	16	150	1,800*700	380/220/110	996	1,046	1,8808102,680

1. Table top material: The table top adopts 3mm flat plate, 40*20*2.5 /50*30*3 rectangular tube

2. Material main beam: high-strength aluminum alloy

3. The base adopts a 50*100/80*60 square tube, the bottom plate is a 4mm flat flange, and the legs are combined with a 40*80/50*100 rectangular square tube (Shanghai Baosteel)

4. Electrical box: remote control, electronic integrated circuit board integrated box

5. Up and down buttons: external (Chint)

6. Rising travel switch: external (Chint)

7. Oil pump motor: power 1.1/1.5/2.2kw placed in the equipment

8. Oil cylinder: 50/60mm outer diameter and 40/50mm inner diameter, which are driven by an electric hydraulic pump to adjust the lift up (Hebei)

9. Sealing ring: imported Taiwan Dingji and O-ring

10. Metal high-pressure hose: double-layer high-pressure steel mesh rubber hose

11. Hydraulic unit: Ningbo Tiandi hydraulic power unit is adopted

12.Hydraulic oil: use No. 32 anti-wear hydraulic oil in winter and No. 46 anti-wear hydraulic oil in summer (Sinopec Great Wall)

13.Tires: anti-wear polyester wheels (4) 14. Chain: plate chain LH0834 15. Wire: 2*2.5 wire
