Aluminum powder press machine
3 month ago
Product details
Mill Scale Iron Compactor Compressor Hydraulic Press
Working Principle:
Through the way of high pressure direct cold pressing, the cast iron, steel, copper, aluminum and other metal raw materials and high-quality mineral powder, without adding any additives, pressed into cylinder or other shapes of briquettes with different weight.
Component Composition:
1. Main machine: composed of frame, main hydraulic cylinder, push hydraulic cylinder, bottom hydraulic cylinder, supporting mold frame and die, press and so on. The frame is composed of upper and lower beams and columns, which are all made of monolithic steel castings and connected by four columns with internal and external nuts to withstand working tension.Oxide Scale Press
2. Hydraulic station: composed of motor, hydraulic pump, pump protection device, professional control valve block and pipe system connecting block press, reasonable design, stable quality, equipped with cooling system, avoid equipment due to oil temperature overheating and can not work continuously.
3. Console: composed of electrical system and PLC control system, equipped with adjustable text display, action sequence and each action time are completely controlled by PLC system, and can be adjusted by the operator at any time, convenient, easy to understand.Forge Scale Press

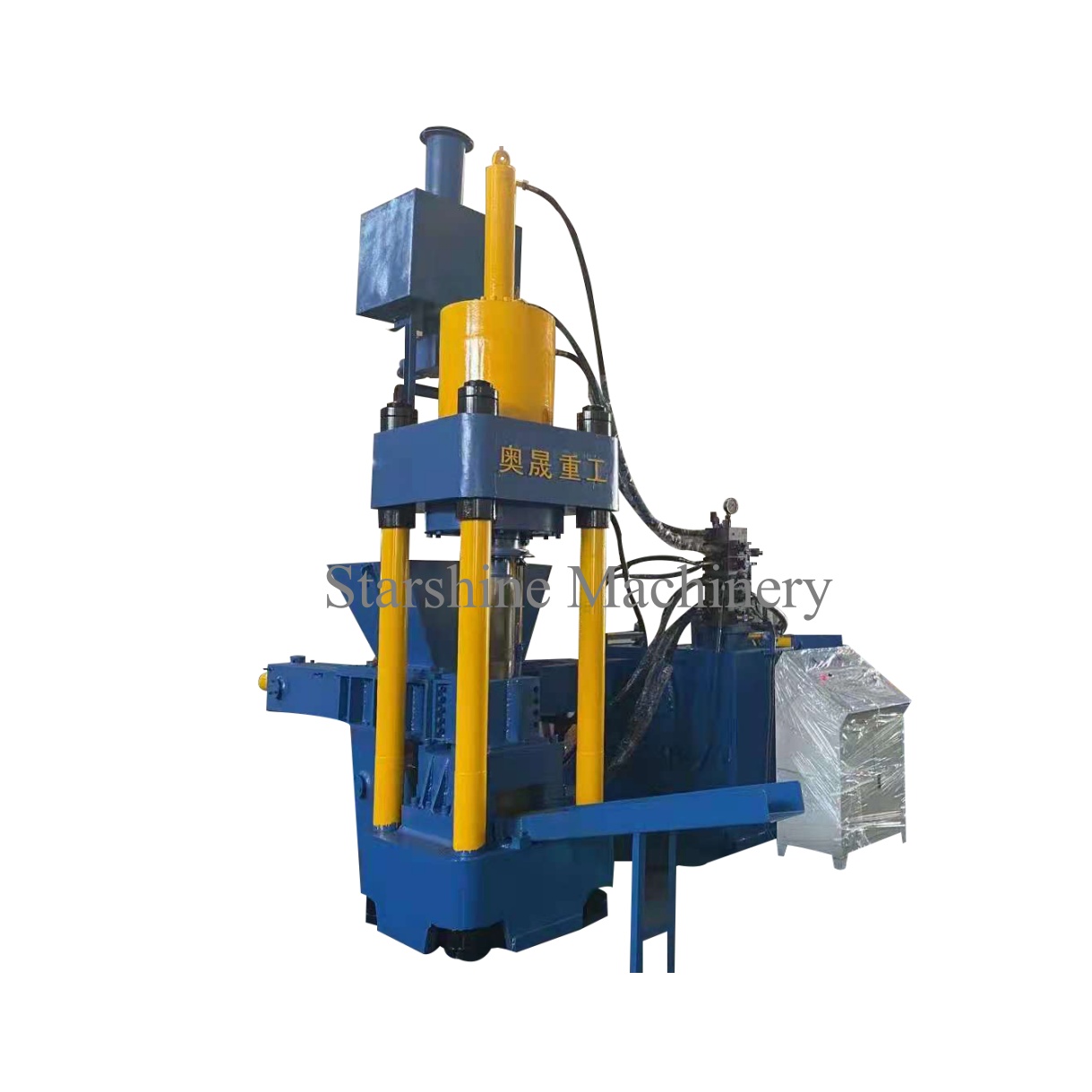

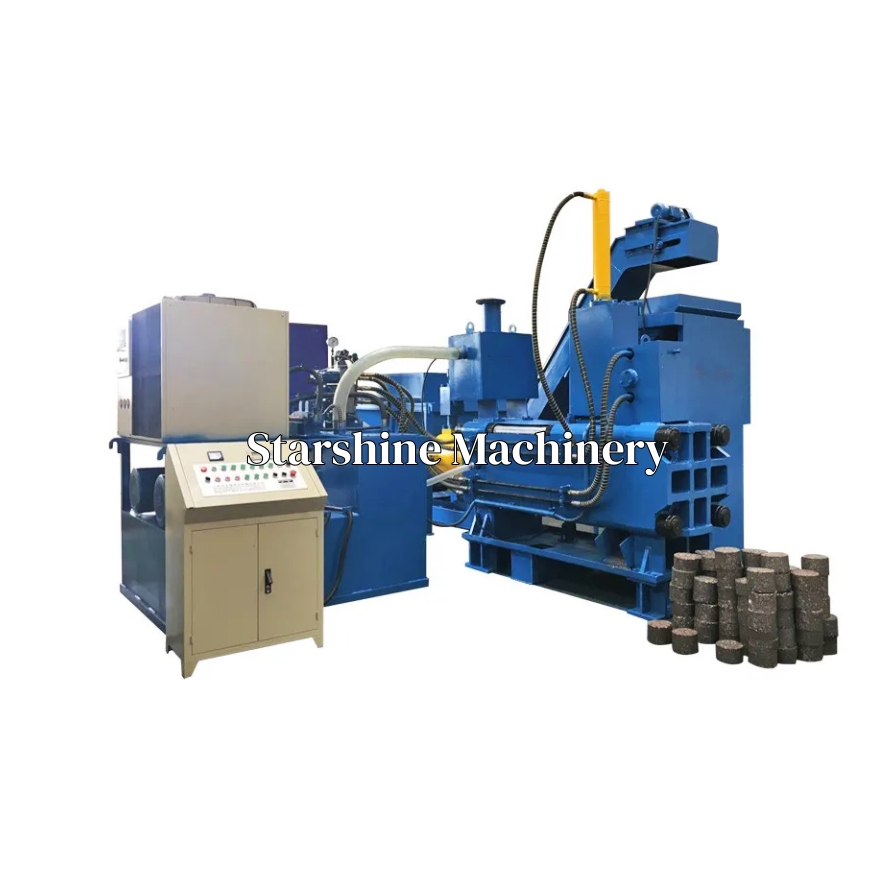

4. Model classification: divided into vertical model and horizontal model two forms. Vertical models have a relatively small footprint, but may be slightly less convenient in feeding and discharging; Horizontal models are more advantageous in handling large volumes of metal chips and are easy to install and maintain.
Product Features:
1. Reasonable structure design: the body adopts the whole steel structure, high strength, good stability, no need to install anchor screws. The frame part adopts integral cast steel parts, which improves the reliable stability and service life of the equipment.Metal Briquetting Press
2. Advanced hydraulic system: hydraulic transmission, highly professional integral valve block, large flow path, so that the system pressure loss is less, eliminate leakage disadvantages. The use of cartridge valve, electro-hydraulic proportional valve and unique oil circuit design enable the hydraulic system to operate stably even under long-term heavy load.
3. High degree of automation: the electrical part adopts imported PLC automatic control system, strong anti-interference ability and low failure rate. Equipped with adjustable text display, action sequence and each action time can be adjusted by the operator at any time, easy to operate.
4. High production efficiency: The cylinder adopts series type cylinder, which improves the speed of movement and production efficiency. Some equipment can also be equipped with spiral automatic feeder, chain automatic feeder, etc., to reduce the labor intensity of workers.
Application:
Widely used in metal smelting, waste recycling, waste reuse, metal processing and other industries. All kinds of metal chips can be compressed into high-density blocks, direct furnace smelting, greatly reducing the cost, but also contribute to the recycling of resources, reduce the demand for primary metal mining.
| Model | Inner dia.of main cylinder | Briquette size (mm) | Briquette density (T/m3) | Briquettes/min | Production (T/shift) | Power(kw) | Operational mode |
| Y83-2000 | 280 | φ80×(60-80) | ≥5 | 4~5 | 3~5.5 | 18.5 | PLC automatically |
| Y83-2500 | 320 | φ90×(60-80) | ≥5 | 4~5 | 5~8 | 30 | |
| Y83-3150 | 360 | (φ90~φ110)×(70-100) | ≥5.5 | 4~5 | 5~8 | 30 | |
| Y83-3600 | 400 | (φ100~φ120)×(70-100) | ≥5 | 4~5 | 8~12 | 30 | |
| Y83-5000 | 450 | (φ110-φ140)×(70-100) | ≥5 | 4~5 | 10~14 | 37 | |
| Y83-6300 | 520 | (φ130-φ160)×(70-100) | ≥5 | 4~5 | 16~20 | 45 |
