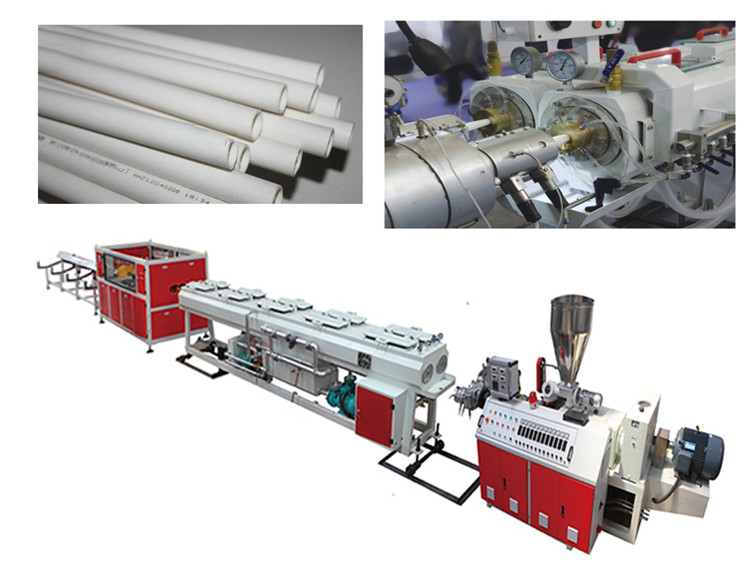

Twice The Throughput With Double-Strand Extrusion
Higher extruder performance will increase your profit margins as long as other costs are carefully controlled.
The initial capital investment for a modern high-performance extruder line is higher, but spacerequirements and labour costs are unaltered.
Pipe throughput is often constrained by the die pressure, the calibration system or the haul-off speed.
Double strand extrusion doubles the extruder’s throughput of small-diameter pipe.
Adjusting the haul-off speed and the cutter function separately for each strand cuts material consumption to an all-time low, because differences in material flow can be allowed for and wall-thickness kept within tight tolerances.
Main Technical Parameters:
|
Pipe Range |
16-40mm |
20-63mm |
75-160mm |
|
Extruder |
SJZ51/105 |
SJZ65/132 |
SJZ80/188 |
|
Power |
18.5kw |
37kw |
110kw |
|
Capacity |
120kg/h |
250kg/h |
450kg/h |
|
Line Speed |
12m/min |
10m/min |
6m/min |
