Top Type Hammer Product Description
STB/WYB Hydraulic Breaker Features:
• Available for 0.8 - 55 Ton any brand excavators.
• Simplicity in construction, easy to use and maintain
• Most advanced processing equipment and technology
• One to two-year warranty
• Long service life
• 24 hours online after-sales service
• Application
Mining------------Mining,Second-time breaking
Metallurgy-------Clearing slag,Demolition of furnace and foundation
Road------------- Repairing,Breaking,Foundation work(asphalt road)
Railway----------Tunneling,Demolition of bridge
Construction----Demolition of building and reinforced concrete
Ship repairing--Clearing clam and rust from the hull
Others----------- Breaking frozen mud
Hydraulic Rock Breaker Types:
Generally,we have 3 types of hydraulic breaker, side type installation rock breakers, top type installation hydraulic rock breaker and silent type rock breaker.Please choose the type you like, we'll try to meet all of your requirements.
How To Choose Suitable Chisel:
What is the difference among side type,box type and top type rock breakers?
For Side type, the installation pins are on the side of the breaker.
For Top type , the installation pins are on the top of the rock breaker.
And for box type, the rock breaker bracket is full sealed like a box,and it equiped with rubber cushion inside of the bracket to keep lower noise. So it is also called silence type rock breaker.The installation pins are also on the top for silent type rock breaker, same as top type installation way on the excavtors. Both side type and top type breakers are with opening bracket, which is easy for maintenance and parts exchanging. But for box type rock breaker, it has to open the box and move out the main body to do maintenance job.
How is the quality?
We are offering OEM service for some famous brands from Italy, Germany,Turkey .South Korea etc.who are selling our hydraulic breakers with their brands all over the world.
How is the price?
Factory direct price, Not the lowest,but reasonable and acceptable,so we are manufacturing and selling and shipping in a very large quantity .

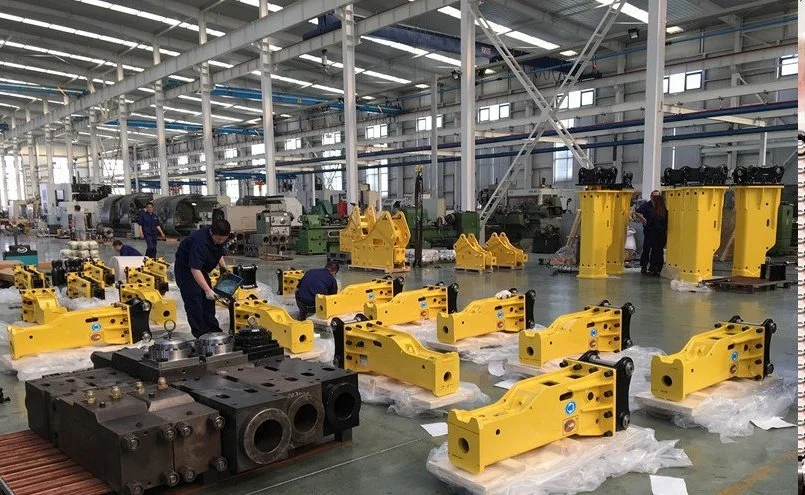

You are welcome to visit our grand factory.
Technology Parameters:
1)WYB series hydraulic hammers
|
Decription/Model |
WYB40 |
WYB45 |
WYB53 |
WYB68 |
WYB75 |
WYB85 |
WYB100 |
WYB125 |
WYB135 |
WYB140 |
WYB150 |
WYB155 |
WYB165 |
WYB175 |
||
|
Operating Weight |
Side Type |
kg |
101 |
113 |
175 |
267 |
368 |
505 |
776 |
1,364 |
1,487 |
1,737 |
2,150 |
2,503 |
3,096 |
3,735 |
|
Top Type |
96 |
110 |
223 |
296 |
404 |
647 |
865 |
1,447 |
1,575 |
1,920 |
2,478 |
2,544 |
2,728 |
4,015 |
||
|
Box Type |
129 |
148 |
206 |
337 |
425 |
697 |
865 |
1,239 |
1,497 |
1,756 |
1,960 |
2,350 |
2,780 |
3,685 |
||
|
Operating Pressure |
bar/psi |
90-120 |
90-120 |
90-120 |
110-140 |
120-150 |
130-160 |
150-170 |
150-170 |
160-180 |
160-180 |
160-180 |
160-180 |
160-180 |
160-190 |
|
|
Setting Pressure |
bar/psi |
150 |
150 |
150 |
170 |
180 |
190 |
210 |
210 |
210 |
220 |
230 |
230 |
230 |
230 |
|
|
Required oil flow |
l/min |
15-30 |
20-40 |
20-50 |
40-70 |
50-90 |
60-100 |
80-110 |
90-120 |
100-150 |
120-180 |
130-190 |
180-240 |
200-260 |
210-290 |
|
|
Working Tool |
Diameter |
mm |
40 |
45 |
53 |
68 |
75 |
85 |
100 |
125 |
135 |
140 |
150 |
155 |
165 |
175 |
|
Weight |
kg |
7 |
8 |
9 |
16 |
21 |
30 |
55 |
103 |
127 |
134 |
170 |
183 |
220 |
260 |
|
|
Impact Rate |
bpm |
800-1100 |
700-1200 |
600-1100 |
500-900 |
400-800 |
400-800 |
350-700 |
350-650 |
350-600 |
350-500 |
300-450 |
350-450 |
250-400 |
200-350 |
|
|
Hydraulic Hose |
inch |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
3/4 |
3/4 |
1 |
1 |
1 |
1 1/4 |
1 1/4 |
1 1/4 |
1 1/4 |
|
|
Suitable Excavator |
tons |
0.8~2.5 |
1.2~3 |
2.5~4.5 |
4 ~ 7 |
6 ~ 9 |
7~14 |
11 ~ 15 |
15-18 |
18 ~ 21 |
20 ~ 26 |
25 ~ 28 |
28 ~ 35 |
30 ~ 40 |
40 ~ 55 |
|
2)Furukawa HB series hydraulic hammers
| Model No. | Chisel diameter | Weight(kg) | Working flow(l/min) | Impact rate(bmp) | Hose diameter(inch) | Tons | Applicabel excavator |
| HB20G | 135mm | 2000 | 1250-150 | 400-800 | 1 | 18-25 | any brand |
| HB30G | 150mm | 2800 | 150-190 | 300-750 | 1 | 25-30 | any brand |
| HB40G | 160mm | 3500 | 190-250 | 250-500 | 5/4 | 35-45 | any brand |
PICTURES

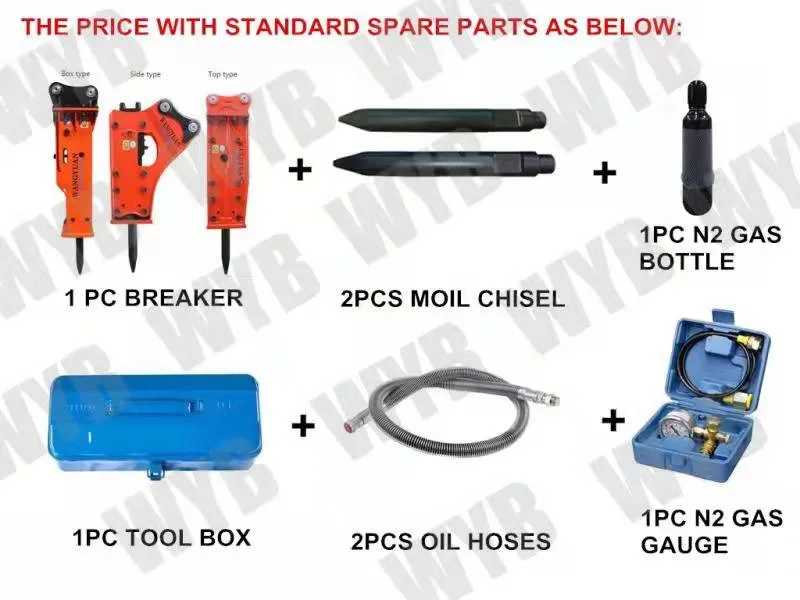

What accessories come together with the hydraulic breaker?
1). 2 pcs in/out hydraulic hoses
2). 2 pcs moil type chisel tools.(Using 42crmo good material, 2-3 times longer life than normal)
3). 1 pc nitrogen gas bottle.
4). 1 sets nitrogen charge guage kits.
5). 1 set tool box.(including the maintenance tool)
6). 1 set product brochure,hydraulic breaker manual book and parts book
ALL THE PRICE WITH SPARE PARTS ABOVE
Packing and delivery time

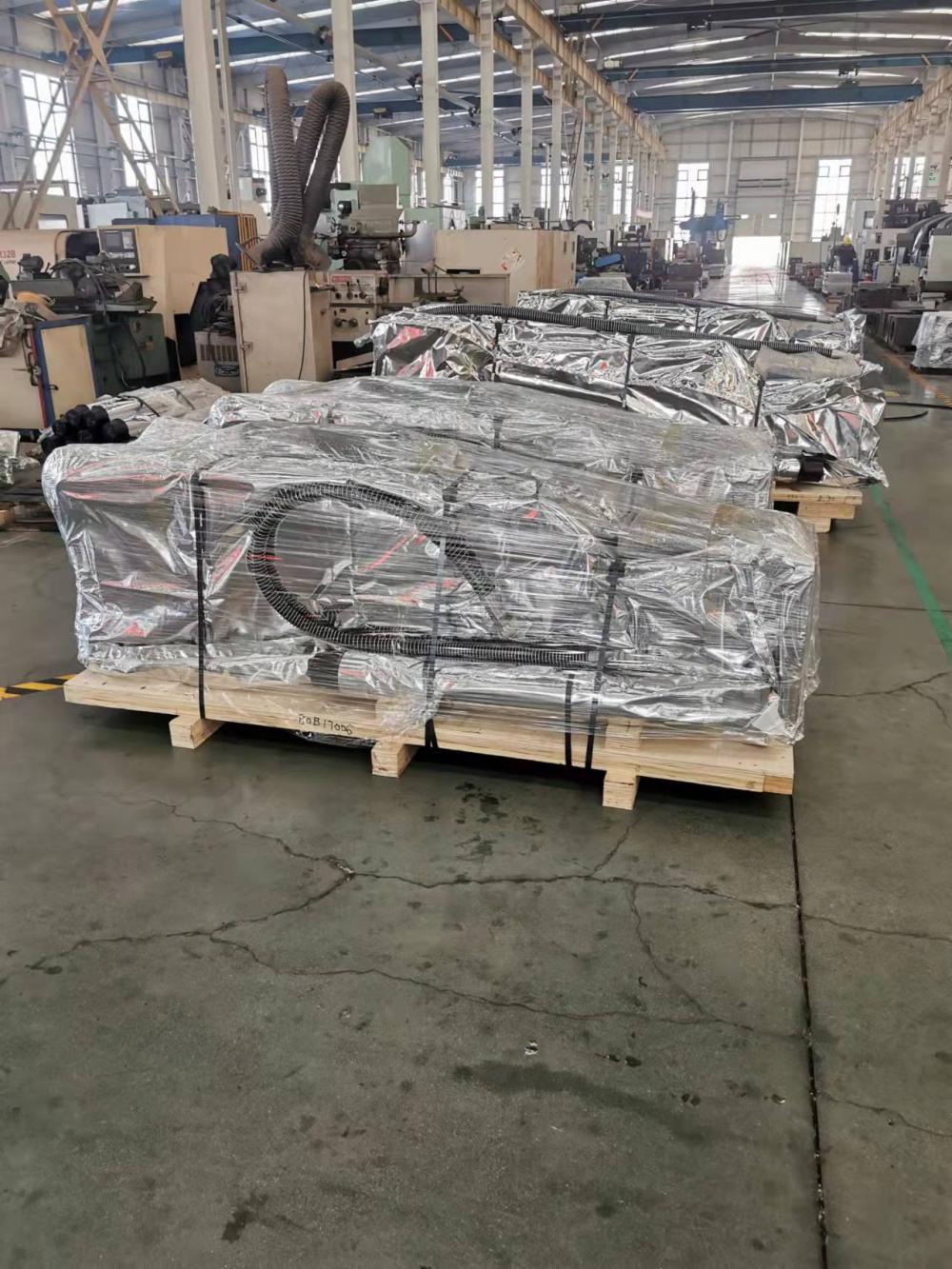

1)Inner is stretch film or breaker coat, outside is export wooden case or pallets as customer's request
2).Delivery time:Usually 3-7days (1-5sets) after down payment and drawing confirmation.
3).We can arrange ocean or air transportation according to your request from any port of China.
