Factory Price Side Type Hydraulic Breaker1

3 year ago

3 0 

Yantai Tianbing Construction Machinery Co., Ltd

3 year

Product details

Advantage

Available for 0.8 – 75 Ton machines
Simplicity in construction, easy to use and maintain
Most advanced processing equipment and technology
One to two-year warranty
Long service life
24 hours online after-sales service

Product Parameters

LIGHT DUTY BREAKER

Decription/Model		WYB400D	WYB450D	WYB530D	WYB680D	WYB750D	WYB1000D	WYB1250D
Total Weight	kg	110	122	195	280	350	850	1,475
Operating Pressure	( bar / psi )	90-120	90-120	90-120	110-140	120-150	150-170	150-170
Required Oil Flow	( l / min )	15-25	20-30	20-50	40-70	50-90	80-110	90-120
Tool Diameter	mm	40	45	53	68	75	100	125
Impact Rate	( bpm )	800-1400	700-1200	500-1000	500-900	400-800	350-700	350-650
Hydraulic Hose	inch	1/2”	1/2”	1/2”	1/2”	1/2”	3/4”	1”
Carrier Weight	tons	0.8-2.5	1.2-3	1.0-3.5	4 ~ 7	6 ~ 9	11 ~ 15	15-18

MEDIUM DUTY BREAKER

Decription/Model		WYB1350D	WYB1400D	WYB1400AD	WYB1500D
Total Weight	kg	1,630	1,873	1,905	2,320
Operating Pressure	( bar / psi )	160-180	160-180	160-180	160-180
Required Oil Flow	( l / min )	100-150	120-180	120-180	130-190
Tool Diameter	mm	135	140	140	150
Impact Rate	( bpm )	350-600	350-500	350-500	300-450
Hydraulic Hose	inch	1”	1”	1”	1 1/4”
Carrier Weight	tons	18 ~ 21	20 ~ 26	20 ~ 26	25 ~ 28

HEAVY DUTY BREAKER

Decription/Model		WYB1550D	WYB1650D	WYB1750D	WYB1850D	WYB1900D	WYB1950D	WYB2000D
Total Weight	kg	2,730	3,500	4,200	4,630	4,930	5,200	5,400
Operating Pressure	( bar / psi )	160-180	160-180	160-190	190-220	190-220	190-220	200-230
Required Oil Flow	( l / min )	180-240	200-260	210-290	220-260	220-260	280-320	280-360
Tool Diameter	mm	155	165	175	185	190	195	200
Impact Rate	( bpm )	350-450	250-400	200-350	180-350	180-350	180-350	150-300
Hydraulic Hose	inch	1 1/4”	1 1/4”	1 1/4”	1 1/4”	1 1/2”	1 1/2”	1 1/2”
Carrier Weight	tons	28 ~ 35	30 ~ 40	40 ~ 55	45-55	45-55	55-65	65-75

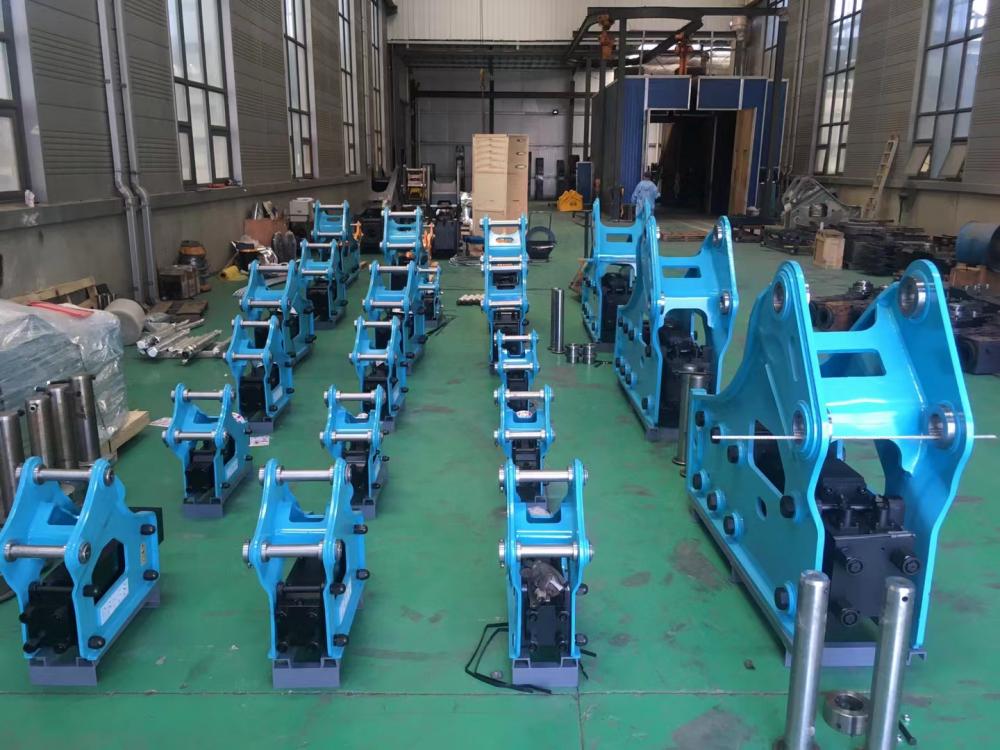

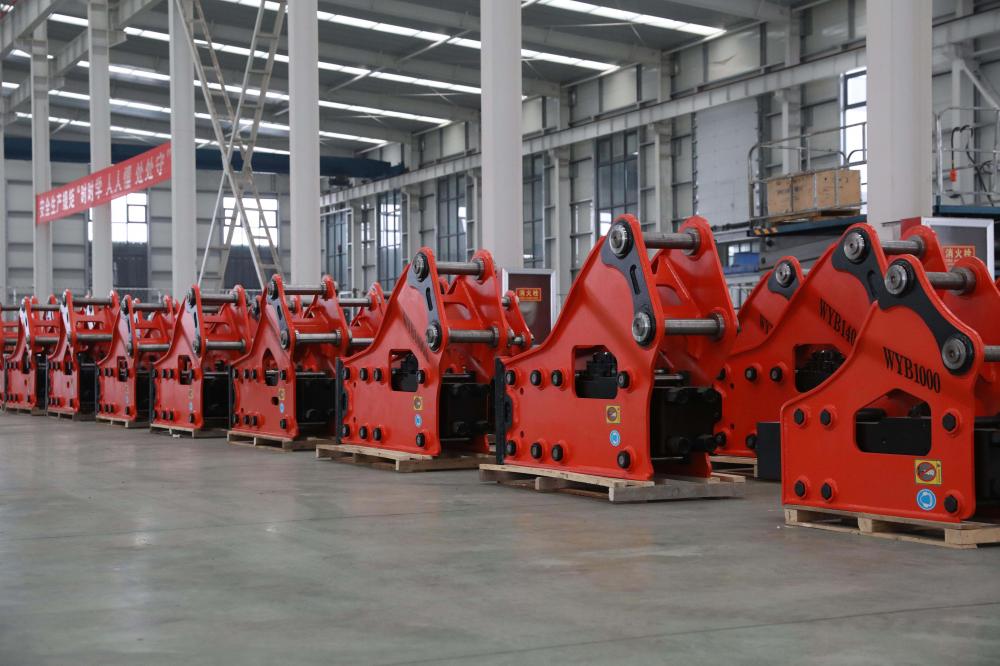

Hydraulic breaker pictures

Wyb Side Type Breaker Wyb Hydraulic Breaker Assembly Site Red Hydraulic Breaker Side Type Hydraulic Hammer
