Box Type Hammer Product Description
Hydraulic Rock Breaker Types:
Generally,we have 3 types of hydraulic breaker, side type installation rock breakers, top type installation hydraulic rock breaker and silent type rock breaker.Please choose the type you like, we'll try to meet all of your requirements.
Side Type Breaker
2.More easier to handle
the breaking objects
3. low maintenance.
Top Type Breaker
2.Without side weight, reducing the rate of chisel breakage
3.longer total-length and heavier total-weight.

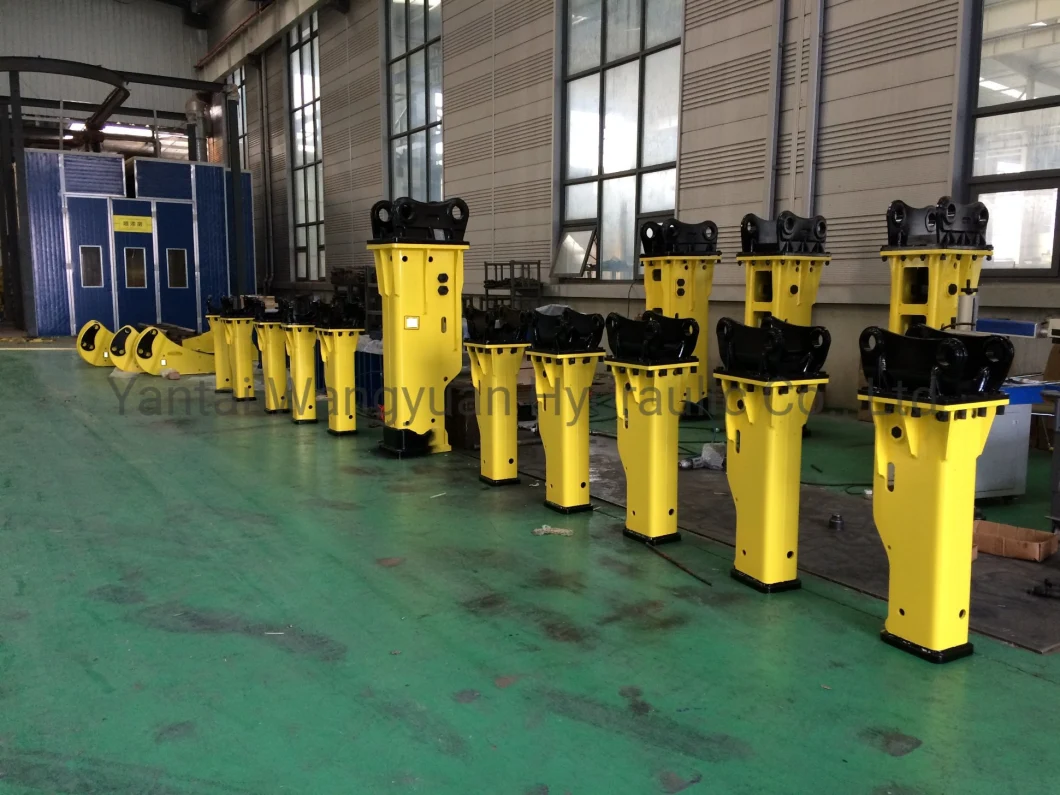

Silence Box Type Breaker
2.Full-closed bracket protects
main body from damage.
Our breaker can be customized to fit varisized excavators, pls contact us for the more information.

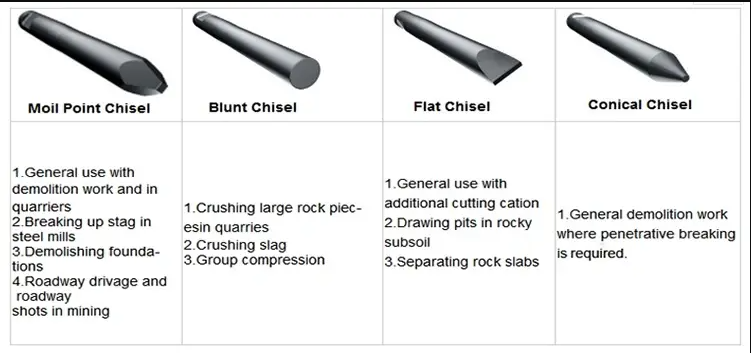

How To Choose Suitable Chisel:
What is the difference among side type,box type and top type rock breakers?
For Side type, the installation pins are on the side of the breaker.
For Top type , the installation pins are on the top of the rock breaker.
And for box type, the rock breaker bracket is full sealed like a box,and it equiped with rubber cushion inside of the bracket to keep lower noise. So it is also called silence type rock breaker.The installation pins are also on the top for silent type rock breaker, same as top type installation way on the excavtors. Both side type and top type breakers are with opening bracket, which is easy for maintenance and parts exchanging. But for box type rock breaker, it has to open the box and move out the main body to do maintenance job.
How is the quality?
We are offering OEM service for some famous brands from Italy, Germany,Turkey .South Korea etc.who are selling our hydraulic breakers with their brands all over the world.
How is the price?
Factory direct price, Not the lowest,but reasonable and acceptable,so we are manufacturing and selling and shipping in a very large quantity .
You are welcome to visit our grand factory.
Technology Parameters:
1) SB series hydraulic hammers
|
Decription/Model |
STB40 |
STB45 |
STB53 |
STB68 |
STB75 |
STB85 |
STB100 |
STB125 |
STB135 |
STB140 |
STB150 |
STB155 |
STB165 |
STB175 |
||
|
Operating Weight |
Side Type |
kg |
101 |
113 |
175 |
267 |
368 |
505 |
776 |
1,364 |
1,487 |
1,737 |
2,150 |
2,503 |
3,096 |
3,735 |
|
Top Type |
96 |
110 |
223 |
296 |
404 |
647 |
865 |
1,447 |
1,575 |
1,920 |
2,478 |
2,544 |
2,728 |
4,015 |
||
|
Box Type |
129 |
148 |
206 |
337 |
425 |
697 |
865 |
1,239 |
1,497 |
1,756 |
1,960 |
2,350 |
2,780 |
3,685 |
||
|
Operating Pressure |
bar/psi |
90-120 |
90-120 |
90-120 |
110-140 |
120-150 |
130-160 |
150-170 |
150-170 |
160-180 |
160-180 |
160-180 |
160-180 |
160-180 |
160-190 |
|
|
Setting Pressure |
bar/psi |
150 |
150 |
150 |
170 |
180 |
190 |
210 |
210 |
210 |
220 |
230 |
230 |
230 |
230 |
|
|
Required oil flow |
l/min |
15-30 |
20-40 |
20-50 |
40-70 |
50-90 |
60-100 |
80-110 |
90-120 |
100-150 |
120-180 |
130-190 |
180-240 |
200-260 |
210-290 |
|
|
Working Tool |
Diameter |
mm |
40 |
45 |
53 |
68 |
75 |
85 |
100 |
125 |
135 |
140 |
150 |
155 |
165 |
175 |
|
Weight |
kg |
7 |
8 |
9 |
16 |
21 |
30 |
55 |
103 |
127 |
134 |
170 |
183 |
220 |
260 |
|
|
Impact Rate |
bpm |
800-1100 |
700-1200 |
600-1100 |
500-900 |
400-800 |
400-800 |
350-700 |
350-650 |
350-600 |
350-500 |
300-450 |
350-450 |
250-400 |
200-350 |
|
|
Hydraulic Hose |
inch |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
3/4 |
3/4 |
1 |
1 |
1 |
1 1/4 |
1 1/4 |
1 1/4 |
1 1/4 |
|
|
Suitable Excavator |
tons |
0.8~2.5 |
1.2~3 |
2.5~4.5 |
4 ~ 7 |
6 ~ 9 |
7~14 |
11 ~ 15 |
15-18 |
18 ~ 21 |
20 ~ 26 |
25 ~ 28 |
28 ~ 35 |
30 ~ 40 |
40 ~ 55 |
|
2)Furukawa HB series hydraulic hammers
| Model No. | Chisel diameter | Weight(kg) | Working flow(l/min) | Impact rate(bmp) | Hose diameter(inch) | Tons | Applicabel excavator |
| HB20G | 135mm | 2000 | 1250-150 | 400-800 | 1 | 18-25 | any brand |
| HB30G | 150mm | 2800 | 150-190 | 300-750 | 1 | 25-30 | any brand |
| HB40G | 160mm | 3500 | 190-250 | 250-500 | 5/4 | 35-45 | any brand |
PICTURES

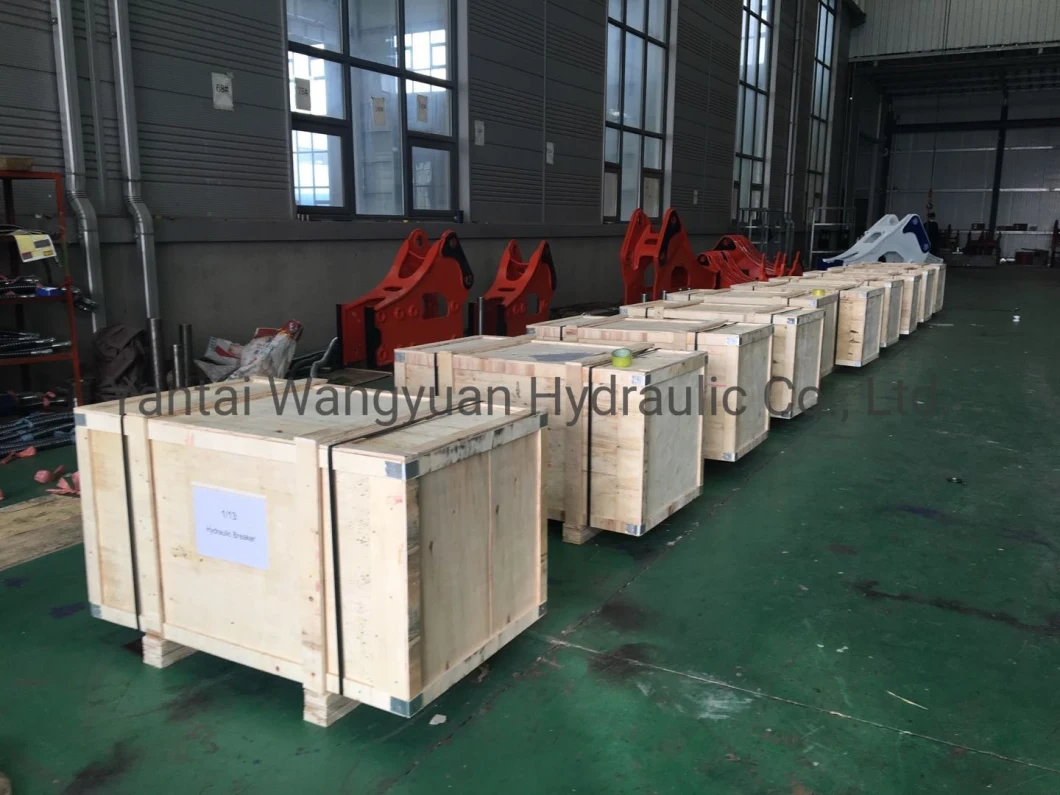

Packing and delivery time

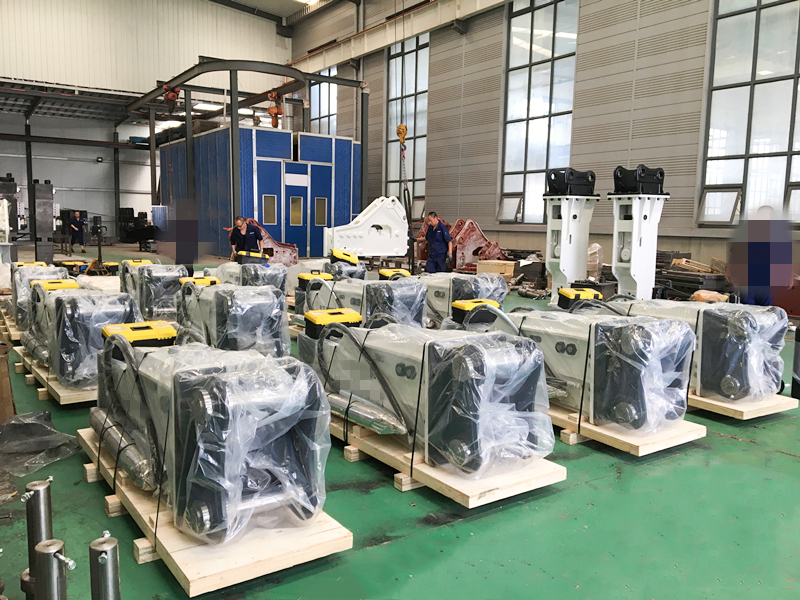

1)Inner is stretch film or breaker coat, outside is export wooden case or pallets as customer's request
2).Delivery time:Usually 3-7days (1-5sets) after down payment and drawing confirmation.
3).We can arrange ocean or air transportation according to your request from any port of China.
HOW TO CHOOSE OUR BREAKER ?
1. PLEASE LET US KNOW YOUR EXCAVATOR MODEL NUMBER OR WEIGHT OF MACHINE.
2.PLEASE LET US KNOW WHAT COLOR DO YOU NEED FOR BREAKER .
3.PLEASE CHECK THE" A B C D E "SIZE AS FOLLOWING FOR US:ARM EAR WIDTH ,PIN DIAMETER AND PIN CENTER TO PIN CENTER SIZE .
