H PP PE water ring pelletizing.mp4
5 year ago

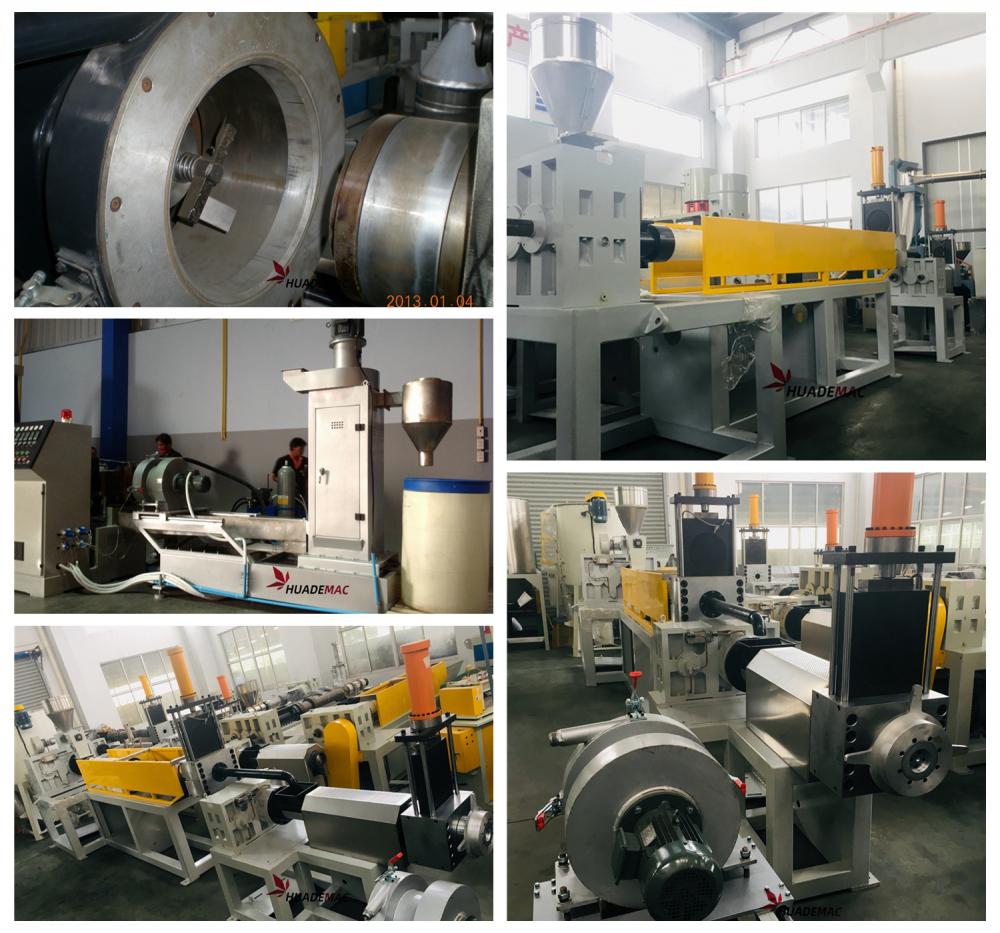

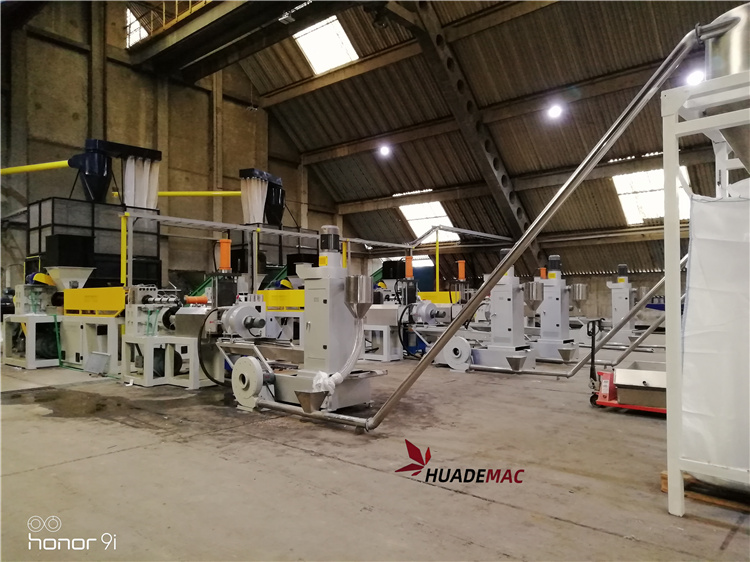

This production line is ideal equipment for recycled plastic pelletizing, e.g. PE, PP film scrap, HDPE, PP industrial flakes. This line is of new design, reasonable configuration, steady operation, low noise, low consumption and high output.
Feature:
1. High-efficient force-feeder ensures high capacity feeding, low energy consumption
2. Single screw extruder, equipped with specially designed screw & barrel, venting system, has a very good output capacity.

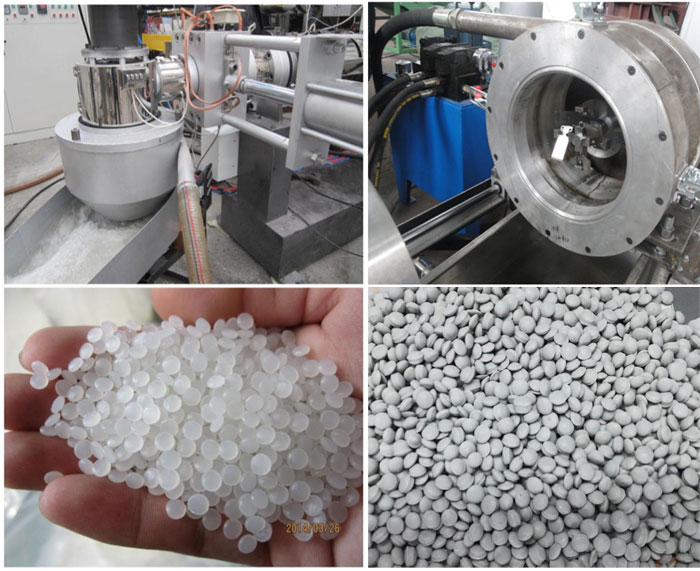

3. Pelletizing style: water-ring cutting with extrusion mould, even cutting ensures good shape.
4. Auxiliary machine: pellets cooling & classifying
Technical data:
|
Extruder |
SJ120 |
SJ150 |
SJ180 |
|
Main Motor Power |
132kw |
160kw |
185kw |
|
Production capacity |
150-250kg/h |
300-400kg/h |
450-550kg/h |
1.Conveyor belt
2.Semi automatic metal detector
3.Compactor force feeder
4.The first stage extruder
5.Without Wire mesh filter hydraulic changer or hydraulic screen change+ vacuum degassing head
6.the second stage extruder

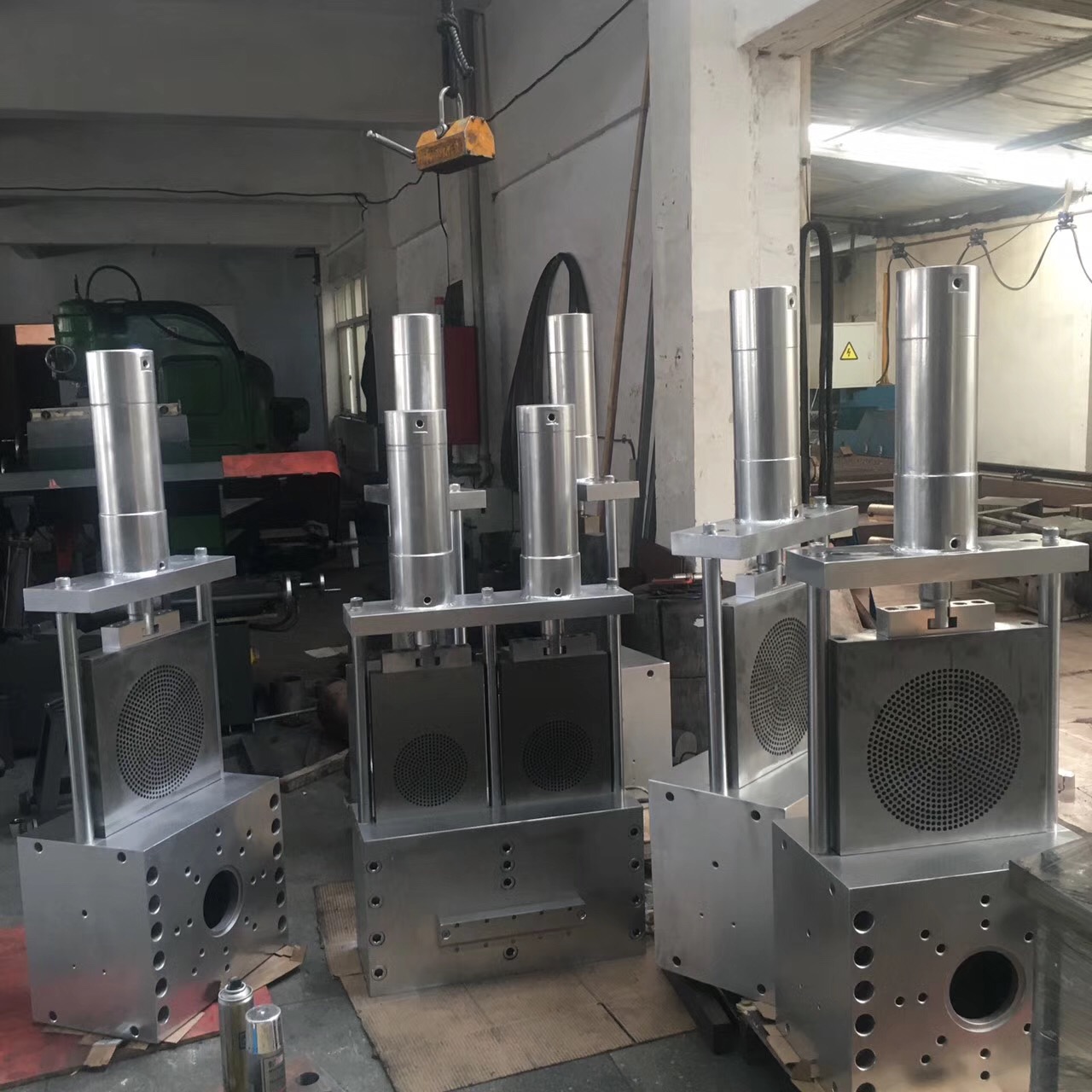

7.Standard hydraulic changer
8.Die face cutting system(vertical or horizontal)
9.Water cooling tank
10.Centrifugal dewatering machine

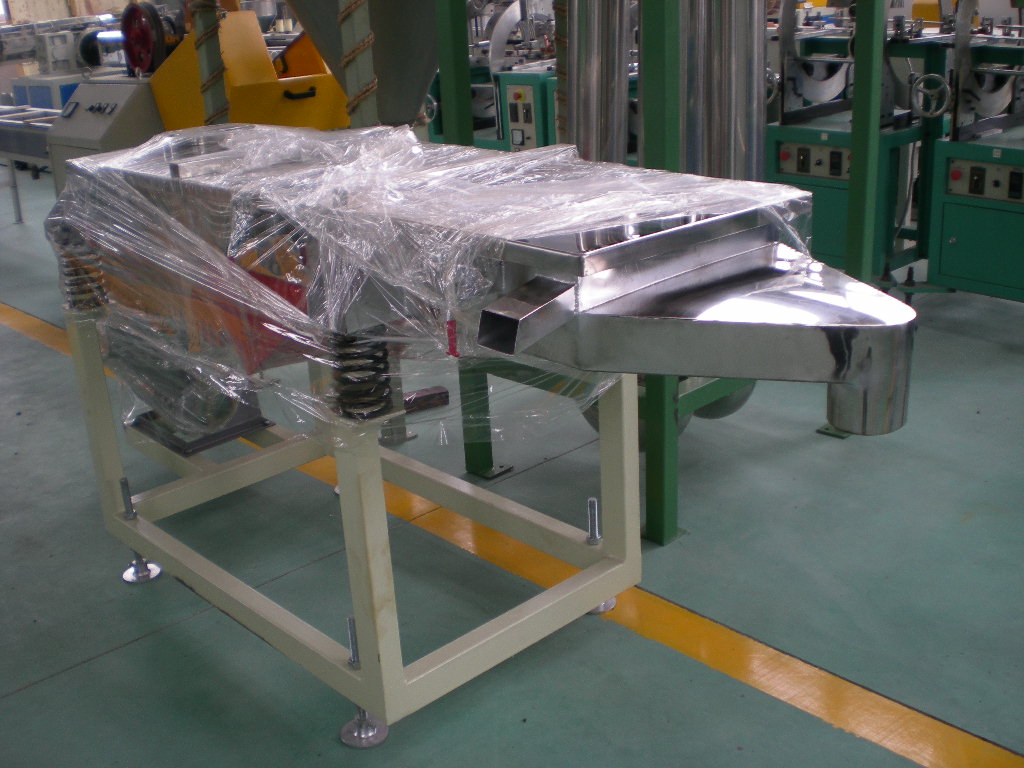

11.Vibrator screen machine
12.Air conveyor & Storage silo
1.low cost :
all the machine ,we make it ourself to reduce the cost of our customer.
2.Genuine product with excellent quality :
we choose our material very strict,
all the material come to our factory must pass the quality test
substandard goods are returned to the supplier.
3. Engerneers available to serve oversea
4.quick delivery:
the company provide just in time delivery with its streamlined supply chain
5.cost saving:
we take strong attention to every detail in the manufacturing process,
the quality control in our factory is very strict,
all defective semi-manufactures must be treated again or reject.
all the machine must be checked out ,then deivered to our customer.
all about that pushing up the price,
what we want to do is give our customer a good quality product with stable working and long lived.
