The DBC substrate used in the power module

Direct Bonded Copper (DBC) Metallization of Alumina Substrate

Puwei Ceramic's Direct Bonded Copper (DBC) Metallization of Alumina Substrate represents the pinnacle of electronic packaging technology, combining exceptional thermal management with superior electrical insulation. As leading Alumina Ceramic DBC Substrate Manufacturers and Suppliers in China, we deliver reliable solutions that enhance device performance and longevity across power electronics, automotive systems, and industrial applications.

Our DBC technology creates a robust bond between high-purity alumina ceramic and oxygen-free copper, resulting in substrates that offer excellent thermal conductivity, strong mechanical properties, and reliable electrical isolation. This makes them ideal for demanding applications where thermal management and electrical integrity are critical.

Product Images

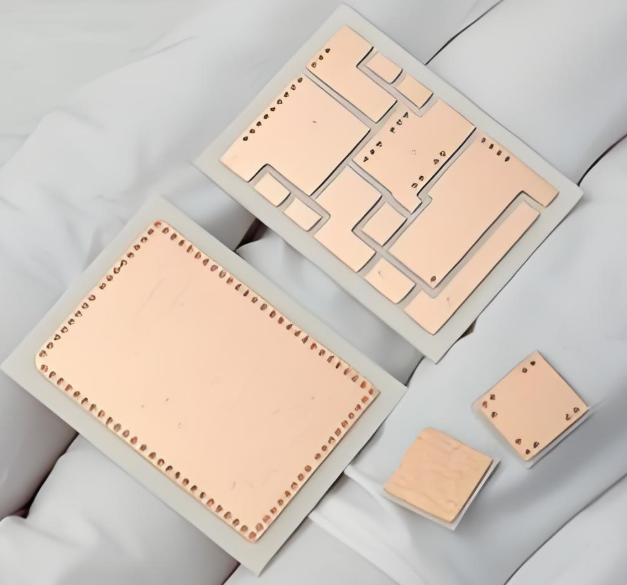

High-quality DBC alumina substrate with excellent copper bonding

Comprehensive performance specifications for DBC metallization substrates

Technical Specifications

Our DBC Metallization of Alumina Substrates are engineered to meet rigorous industry standards with the following technical parameters:

Thermal Properties

• Thermal Conductivity: Approximately 24W/(m·K), effectively meeting heat dissipation requirements for conventional power devices
• Coefficient of Thermal Expansion: Approximately 7.1ppm/K, closely matched to silicon chips to minimize thermal stress
• Operating Temperature Range: -55°C to 850°C, suitable for various working environments
• Thermal Cycling Performance: Excellent stability under repeated temperature fluctuations

Electrical Properties

• Dielectric Withstand Voltage: >2.5kV, providing reliable electrical isolation
• Insulation Resistance: High resistance values ensuring electrical safety
• Dielectric Constant: Relatively low and stable under high temperature and humidity conditions
• Dielectric Loss: Minimal loss, reducing signal distortion in high-frequency circuits

Mechanical Properties

• Peel Strength: ≥5.0 N/mm (50mm/min), ensuring copper foil remains firmly bonded
• Mechanical Strength: Sufficient to withstand external stress and impact
• Surface Quality: Smooth surface without warpage, bending, or microcracks
• Hardness: High hardness providing excellent wear resistance

Additional Properties

• Chemical Stability: Resistant to acids, alkalis, and salts, maintaining performance in harsh environments
• Solderability: Excellent welding wettability ≥95 (Sn/0.7Cu) for reliable connections
• Moisture Resistance: Non-hygroscopic, performing reliably in humid conditions
• Environmental Compliance: Harmless and non-toxic materials meeting environmental standards

Product Features and Advantages

Puwei Ceramic's DBC Metallization of Alumina Substrates offer distinct advantages for demanding electronic applications:

Superior Thermal Management

With thermal conductivity of approximately 24W/(m·K), our alumina substrates efficiently dissipate heat from power devices, preventing overheating and extending component lifespan. The closely matched coefficient of thermal expansion (7.1ppm/K) to silicon chips minimizes thermal stress during operation, enhancing reliability in thermal cycling conditions.

Excellent Electrical Insulation

Our substrates provide outstanding electrical isolation with dielectric withstand voltage exceeding 2.5kV and high insulation resistance. This effectively prevents current leakage and short circuits, ensuring the electrical safety of equipment in high-voltage applications. The low dielectric constant and minimal dielectric loss maintain signal integrity even in high-frequency circuits.

Robust Mechanical Properties

The strong bonding between copper foil and alumina ceramic, with peel strength ≥5.0 N/mm, ensures the copper layer remains securely attached during use. The substrates exhibit sufficient mechanical strength to withstand external stress and impact while maintaining dimensional stability. The smooth, defect-free surface meets requirements for high-precision electronic packaging.

Chemical and Environmental Stability

Our substrates demonstrate excellent resistance to chemical corrosion from acids, alkalis, and salts, maintaining performance in harsh environments. The non-hygroscopic nature ensures reliable operation in humid conditions, while the environmentally friendly materials comply with global regulatory standards.

How to Integrate DBC Alumina Substrates

Follow these steps for optimal integration into your electronic designs:

1. Design Preparation: Review circuit layout and thermal requirements. Ensure substrate dimensions match your component placement and heat dissipation needs.
2. Surface Preparation: Clean copper surfaces with appropriate solvents to remove contaminants and oxidation before assembly.
3. Circuit Patterning: Apply photoresist and use photolithography to create your desired circuit pattern on the copper layer.
4. Etching Process: Use chemical etching to remove unwanted copper, creating precise circuit traces according to your design.
5. Component Assembly: Mount electronic components using soldering techniques suitable for the copper surface, leveraging the excellent solderability.
6. Thermal Management: Ensure proper heat sinking if required, utilizing the substrate's thermal conductivity for efficient heat dissipation.
7. Testing and Validation: Perform electrical, thermal, and mechanical testing to verify performance under operating conditions.

Application Scenarios

Our DBC Metallization of Alumina Substrates serve critical roles across multiple industries:

Power Electronics

Essential for Insulated Gate Bipolar Transistors (IGBTs), power modules, and high-voltage converters where efficient heat dissipation and electrical isolation are critical for reliability and performance.

Automotive Electronics

Used in electric vehicle power systems, battery management, and motor drives where thermal management under harsh operating conditions ensures long-term reliability.

Industrial Equipment

Applied in motor drives, power supplies, and industrial controls where robust performance under thermal cycling and mechanical stress is essential.

Renewable Energy Systems

Critical for solar inverters, wind turbine controllers, and energy storage systems where reliability and thermal performance directly impact energy conversion efficiency.

Consumer Electronics

Used in high-power LED drivers, power adapters, and communication devices where space constraints demand efficient thermal management in compact designs.

Benefits for Customers

Choosing Puwei Ceramic's DBC Metallization of Alumina Substrates delivers significant advantages:

• Enhanced Reliability: Superior thermal management extends component lifespan and reduces failure rates in demanding applications
• Improved Performance: Excellent electrical properties ensure signal integrity and reduce power losses in high-frequency circuits
• Cost Efficiency: Reduced cooling requirements and longer service life lower total cost of ownership
• Design Flexibility: Compatible with various assembly processes and suitable for diverse electronic applications
• Quality Assurance: Consistent performance backed by rigorous quality control and testing protocols
• Technical Support: Access to Puwei's expertise in Electronic Ceramic Products and application engineering

Production Process

Our manufacturing process ensures consistent quality and performance through rigorous controls:

1. Material Selection: High-purity alumina ceramic and oxygen-free copper are selected and tested for quality compliance
2. Ceramic Formation: Alumina ceramic is pressed and sintered under controlled conditions to achieve optimal density and properties
3. Surface Preparation: Copper foil and ceramic surfaces are meticulously cleaned and prepared for bonding
4. Direct Bonding: Copper and alumina ceramic are bonded using DBC technology under high temperature and controlled atmosphere
5. Precision Machining: Substrates are cut to exact specifications using advanced laser or diamond saw cutting
6. Quality Assurance: Each substrate undergoes comprehensive testing for thermal, electrical, and mechanical properties
7. Packaging: Substrates are carefully packaged in anti-static materials with moisture protection for safe shipping

Certifications and Compliance

Puwei Ceramic maintains the highest quality standards through comprehensive certifications:

• ISO 9001 Quality Management System certification ensures consistent manufacturing excellence
• Ceramic Heat Sink Surface Copyright Certificate protects our innovative thermal management designs
• Copyright Certificate for Ceramic Material Production System validates our proprietary manufacturing processes
• Compliance with RoHS and REACH environmental standards for global market access
• Industry-specific quality assurance for automotive, aerospace, and industrial applications

Customization Options

We offer comprehensive OEM & ODM services to meet your specific application requirements:

• Size Flexibility: Custom dimensions from 0.2mm to 2.00mm thickness, with large formats up to 240mm × 280mm × 1mm and 95mm × 400mm × 1mm available
• Copper Thickness: Variable copper foil thickness from 0.1mm to 0.6mm to match current carrying requirements
• Circuit Patterns: Custom copper patterning optimized for specific component layouts and thermal management needs
• Surface Finishes: Various plating options including nickel, gold, or silver for enhanced solderability and corrosion resistance
• Material Variations: Alternative ceramic materials including Aluminum Nitride Substrates for higher thermal performance applications

Our expertise in DBC Metallization of Alumina Substrate and other advanced ceramics enables us to provide tailored solutions for unique application requirements.

Frequently Asked Questions

What is the difference between DBC and DPC substrates?

DBC (Direct Bonded Copper) creates a direct bond between copper and ceramic under high temperature, offering superior thermal performance and bond strength. DPC (Direct Plated Copper) uses electroplating to deposit copper onto ceramic, allowing finer circuit patterns but with lower thermal performance. Puwei specializes in both DBC Ceramic Substrate and DPC Ceramic Substrate technologies.

How does alumina compare to aluminum nitride for thermal applications?

Alumina offers excellent electrical insulation and good thermal conductivity (24W/mK) at a more cost-effective price point. Aluminum nitride provides higher thermal conductivity (170-200W/mK) but at a premium cost. The choice depends on your specific thermal requirements and budget constraints.

What is the typical lead time for custom orders?

Standard lead time for custom orders is 3-4 weeks, with expedited options available for urgent requirements. Sample orders typically ship within 7-10 business days after design confirmation.

Can you provide substrates with custom circuit patterns?

Yes, we offer complete customization of copper layer patterns to match specific component layouts and electrical connection requirements. Our design team can assist with optimizing your circuit pattern for both electrical performance and thermal management.

What quality control measures do you implement?

Our comprehensive QC includes raw material inspection, in-process controls, and final testing of electrical, thermal, and mechanical properties. Each substrate undergoes visual inspection, dimensional verification, and performance testing to ensure it meets specifications.
