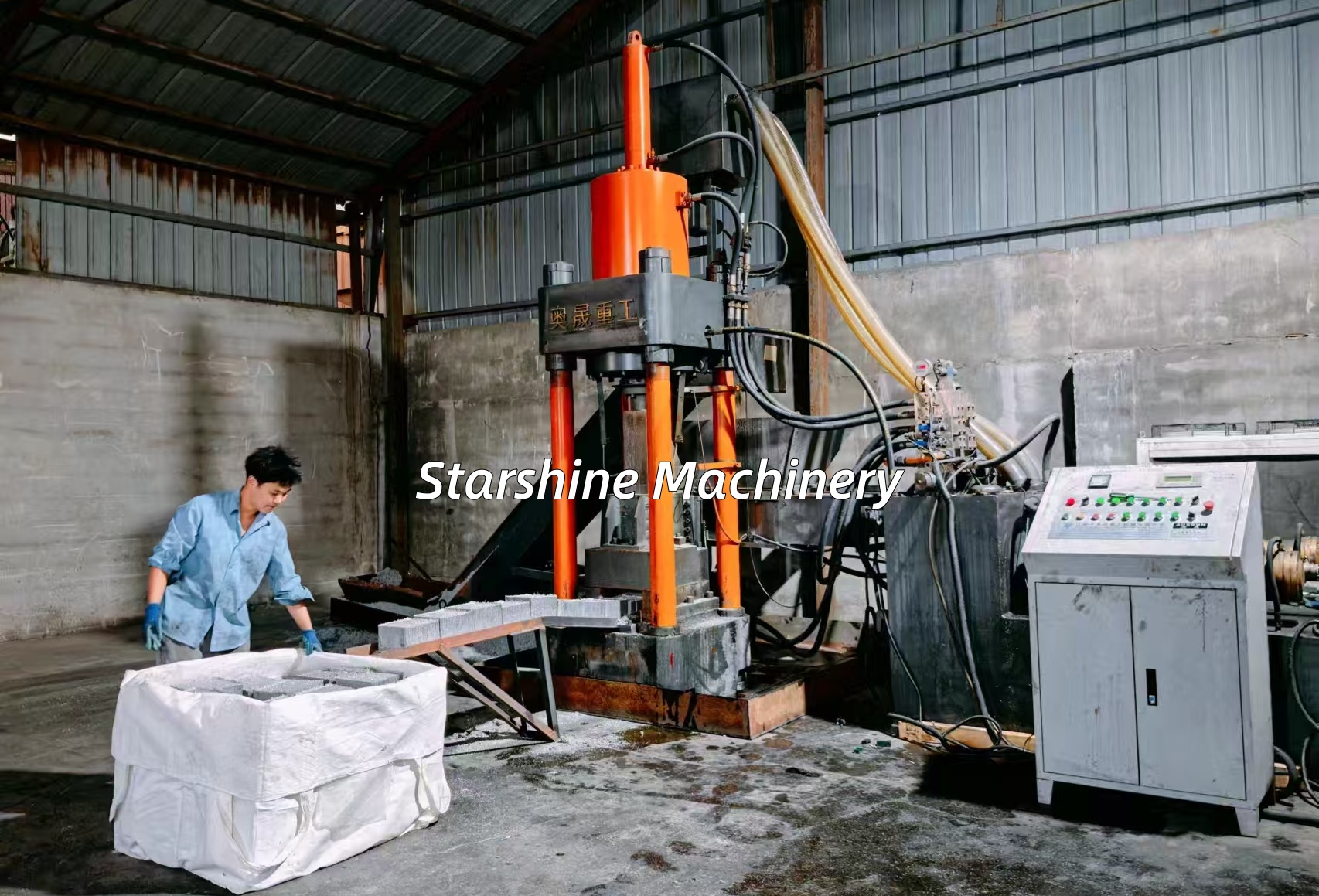

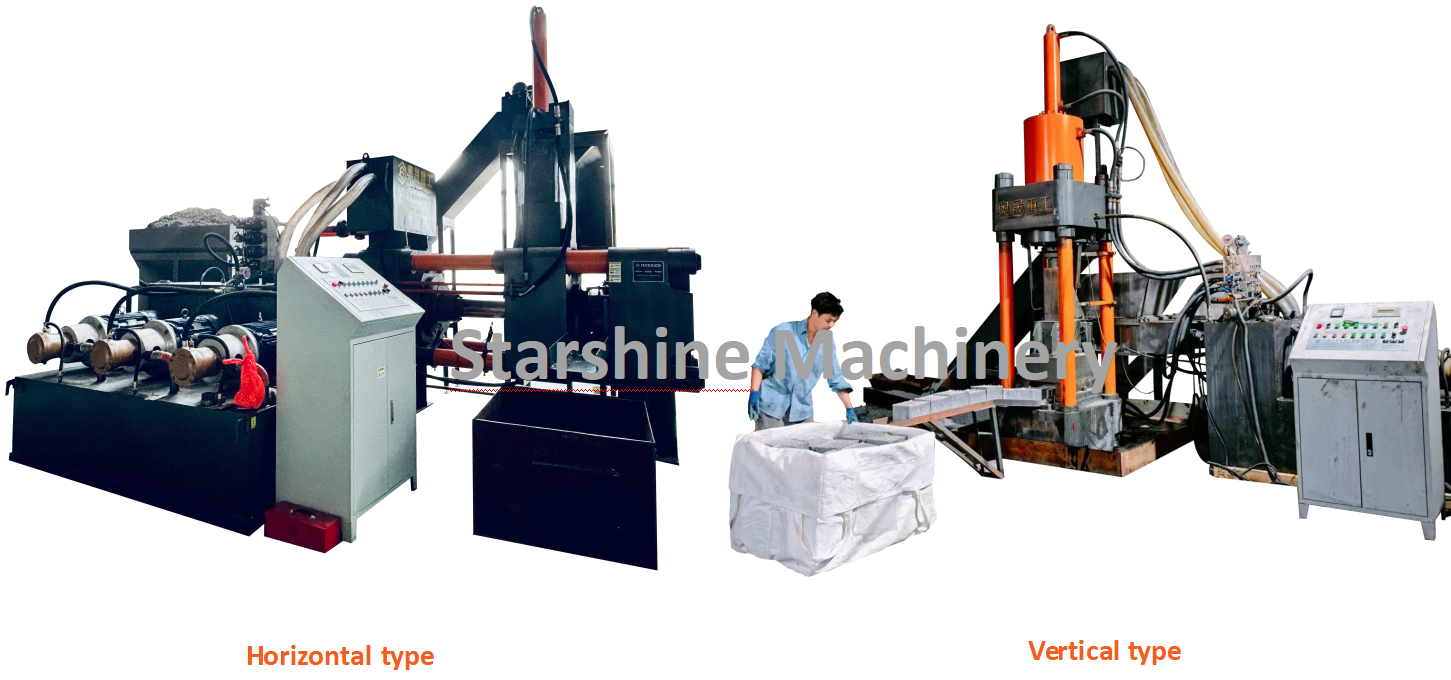

Metal Pressing Sponge Iron Chip Briquetting Press

Our metal briguette machine is a mechanical equipment used to press copper chips, iron filings,aluminum shavings,steel chips and other materials into briquettes shape,also works erll on sponge iron scraps.

Working principle:

The hydraulic system/mechanical pressure device is mainly used to apply high pressure to iron filings and other materials in the mold to make it compress and form. Such as the hydraulic drive sponge iron press machine, the motor drives the oil pump to extract hydraulic oil, which is transmitted to the cylinder to drive the piston rod movement and compress the material.

Structural composition:

1. Main engine part: including fuselage, slide block, workbench, etc. The fuselage is usually made of cast steel or thick steel, such as three-beam and four-column structure, relying on the column as the skeleton, the upper beam and the workbench are fixed by the lock nut, and the slide block can move up and down under the column guide.

2. Power system: generally composed of motors, oil pumps, oil tanks, etc., to provide power for the equipment, so that the hydraulic oil is circulated in the system, generating pressure to drive the actuator.Sponge Iron Compressor

3. Mold part: can be customized according to the needs of different shapes and sizes, common round, square etc.

4. Control system: More PLC control, can achieve the fixed range, fixed pressure two kinds of forming process, and has the function of retaining the rolling time, but also can adjust the working pressure of the slider, stroke, etc.

Advantges:

1. High production efficiency: such as the iron chip briquetted press extruded by the cylinder, the production capacity can reach more than 120KG per hour.

2. Good molding quality: the material can be pressed into high-density briquettes, not easy to crush, convenient storage and transportation and furnace production, reduce the loss in the recycling process.

3. Strong applicability: can be used to press iron filings, iron oxides, aluminum powder, slag and other materials, widely used in metallurgy, electric power, chemical industry and other industries.

4. Easy to operate: the button is centrally controlled, with adjustment, manual and semi-automatic operation modes, easy for workers to use.

Application fields:

1. Metallurgical industry: After pressing sponge iron and iron filings into briquettes, they can be directly put into blast furnaces or electric furnaces as iron making raw materials to improve production efficiency and iron recovery rate.

2. Metal recycling industry: It is used to press various scrap metal scraps into briquettes, which is easy to transport and reprocess, and realize the recycling of resources.

3. Refractory industry: Refractory powder and iron filings can be mixed and pressed into cakes for the production of refractory bricks, refractory products, etc., to improve the strength and wear resistance of refractory materials.

Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Y83-2000	280	φ80×(60-80)	≥5	4~5	3~5.5	18.5	PLC automatically
Y83-2500	320	φ90×(60-80)	≥5	4~5	5~8	30
Y83-3150	360	(φ90~φ110)×(70-100)	≥5.5	4~5	5~8	30
Y83-3600	400	(φ100~φ120)×(70-100)	≥5	4~5	8~12	30
Y83-5000	450	(φ110-φ140)×(70-100)	≥5	4~5	10~14	37
Y83-6300	520	(φ130-φ160)×(70-100)	≥5	4~5	16~20	45
