Large-sized Silicon Nitride AMB Substrate
2 year ago

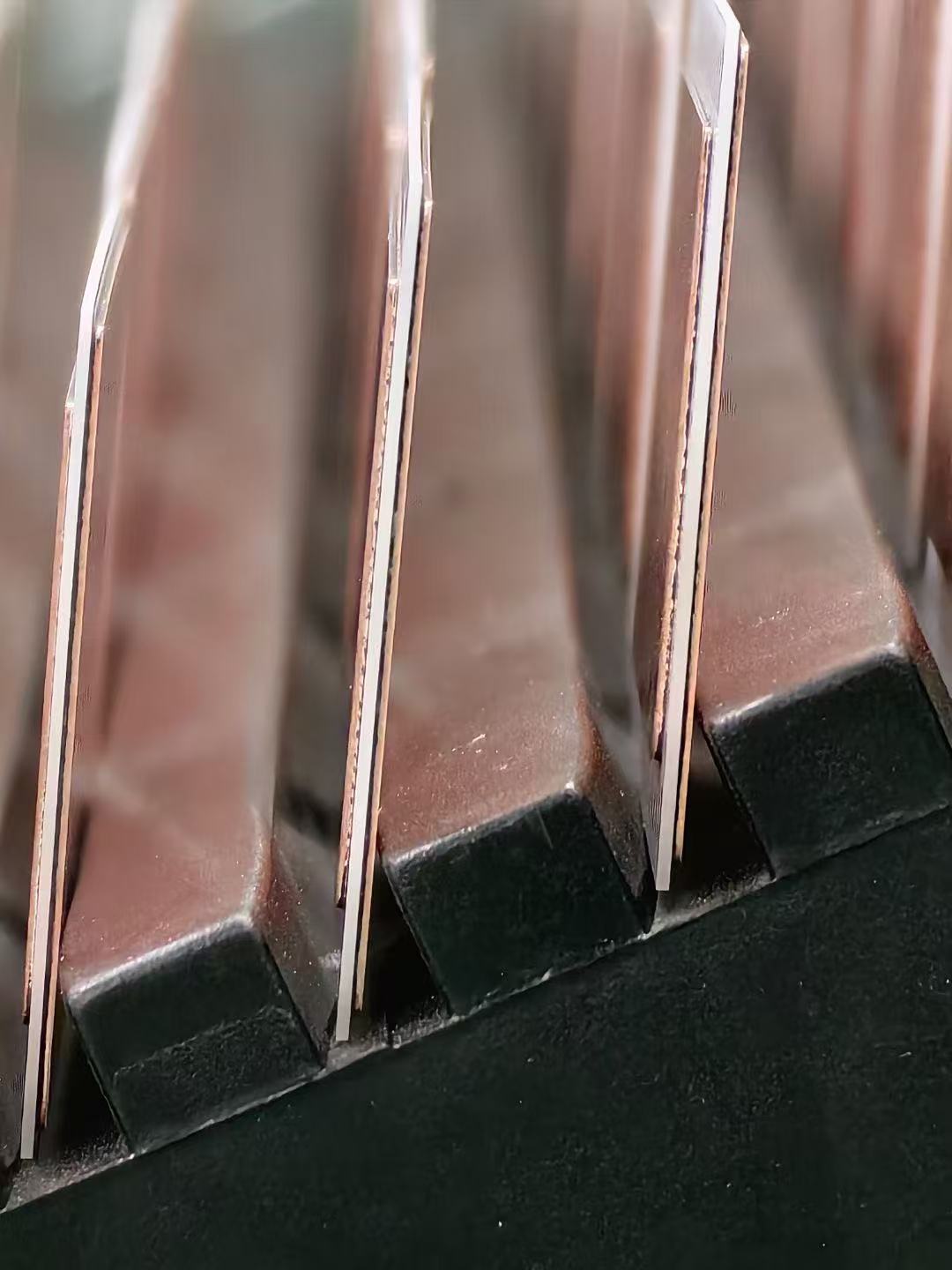

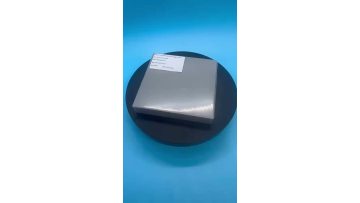

Silicon Nitride Ceramic AMB Copper-clad Substrate
Puwei's Silicon Nitride Ceramic AMB Copper-clad Substrate represents the pinnacle of advanced ceramic substrate technology for demanding power devices and high-reliability electronic packaging. Utilizing Active Metal Brazing (AMB) technology, we bond high-conductivity copper to premium silicon nitride (Si₃N₄) ceramic, delivering exceptional thermal, mechanical, and electrical performance for next-generation SiC and GaN applications. This substrate is engineered as the ultimate solution for high-power microelectronic components requiring unmatched reliability.
Core Performance Advantages
- Exceptional Mechanical Strength: >800 MPa flexural strength, 3-5x stronger than alumina.
- Superior Thermal Shock Resistance: Outperforms Al₂O₃ and AlN in rapid temperature cycling.
- Optimal CTE Matching: 3.2 ppm/°C closely matches SiC semiconductors (3.7 ppm/°C).
- High Reliability Bonding: AMB creates stronger metallurgical bonds than traditional DBC methods.
- Robust Thermal Performance: 80-90 W/m·K thermal conductivity with excellent stability.
Technical Specifications
Our Si₃N₄ AMB substrates are characterized by precise, high-performance specifications crucial for reliable microelectronics packaging.
Material Properties
Base Material: High-purity Silicon Nitride (Si₃N₄). Cladding Material: Oxygen-free high conductivity copper. Thermal Conductivity: 80-90 W/m·K. Flexural Strength: >800 MPa. CTE: 3.2 ppm/°C. Dielectric Strength: >15 kV/mm. Peel Strength: >80 N/cm.
Dimensions & Tolerances
Ceramic Thickness: 0.25mm-1.0mm standard (0.2mm-2.0mm custom). Copper Thickness: 0.1mm-0.8mm. Maximum Size: 240mm × 280mm. Surface Flatness: <10μm/cm. Thick Copper Capability: Supports up to 0.8mm copper for higher current carrying capacity, ideal for advanced integrated circuit packaging.
Key Features & Technology Advantages
Superior Thermal Shock Resistance
Silicon nitride's unique microstructure prevents crack propagation under rapid temperature changes, making it ideal for harsh environments where alumina ceramic substrates or aluminum nitride ceramics may fail. This is critical for automotive and industrial power devices.
Optimal CTE Matching with Wide Bandgap Semiconductors
The thermal expansion coefficient of 3.2 ppm/°C closely matches Silicon Carbide (SiC) and Gallium Nitride (GaN). This minimizes interfacial thermal stress, extending product lifetime and enhancing reliability in high-power microelectronics applications.
Exceptional Mechanical Strength & Durability
With flexural strength exceeding 800 MPa, it provides 3-5x greater mechanical robustness than standard alumina. This ensures integrity under vibration and mechanical stress in electric vehicle powertrains and heavy industrial equipment.
Advanced AMB Bonding Technology
Active Metal Brazing creates strong chemical bonds between ceramic and copper, offering superior thermal cycling performance and long-term reliability compared to traditional Direct Bonded Copper (DBC) methods. This advanced metallized ceramics process is key for high-reliability electronic packaging.
Primary Application Scenarios
Electric Vehicle Power Electronics
Main inverters, DC-DC converters, and onboard chargers requiring robust performance under vibration, thermal cycling, and high power density. Essential for next-generation SiC-based power devices.
Renewable Energy Systems
Solar inverters and wind power converters demanding long-term reliability and excellent thermal shock resistance in outdoor environments with wide temperature fluctuations.
Industrial Motor Drives & Power Supplies
High-power drives for manufacturing and automation equipment requiring exceptional mechanical strength and thermal cycling performance in harsh industrial settings.
Aerospace, Defense & Rail Transportation
Mission-critical power electronics where the highest levels of reliability, mechanical robustness, and performance under extreme conditions are non-negotiable.
Advanced High-Frequency Modules & RF Power
While optimized for thermal management, its excellent dielectric properties also support demanding RF circuits and microwave applications where reliability is paramount.
Implementation & Design Integration Guide
- Application Analysis: Evaluate thermal, mechanical, and reliability requirements against Si₃N₄ AMB advantages.
- Thermal Simulation: Utilize our material property data for system-level thermal management design.
- Substrate & Circuit Design: Provide layout specifications. We leverage expertise in thick film hybrid microcircuits for optimization.
- Prototyping & Validation: Test samples under real operating conditions to verify performance.
- Assembly Process Adaptation: Optimize soldering and assembly for silicon nitride's characteristics.
- Quality Validation & Scaling: Perform comprehensive testing before scaling to volume production.
Value Proposition for OEMs & Design Engineers
- Enhanced System Reliability: Drastically reduce field failures in demanding conditions.
- Extended Product Lifespan: Superior thermal cycling capability ensures longer operational life.
- Enable Compact, Power-Dense Designs: Higher strength allows for thinner substrates and smaller modules.
- Improved Total Cost of Ownership (TCO): Reduced failure rates and longer service life offset initial cost.
- Access to Advanced Expertise: Partner with Puwei for application engineering in microelectronics packaging.
Manufacturing Process & Quality Assurance
Our production ensures the highest purity, density, and dimensional accuracy for critical insulation elements in power modules.
- Raw Material Preparation: Selection of high-purity Si₃N₄ powder.
- Forming & Sintering: Shaping and high-temperature sintering to achieve optimal microstructure.
- Precision Machining: Diamond grinding to exact thickness and flatness.
- Surface Activation: Preparation for perfect bonding interface.
- Active Metal Brazing (AMB): High-temperature vacuum brazing to create metallurgical bonds.
- Patterning & Finishing: Photolithography, etching, and application of protective surface finishes.
- Rigorous Quality Inspection: 100% inspection and performance testing of thermal, electrical, and mechanical properties.
Certifications & Compliance
Puwei products meet the highest international standards for quality and reliability.
- Quality Management: ISO 9001:2015 Certified.
- Automotive Standard: IATF 16949:2016 Compliance.
- Material Safety: UL 94 V-0 Flammability Rating.
- Environmental Compliance: RoHS and REACH directives.
Customization & OEM/ODM Services
We tailor Si₃N₄ AMB substrates to your exact requirements for advanced electronic packaging.
- Dimensions & Geometry: Custom sizes up to 240mm × 280mm, complex shapes, and contours.
- Layer Thickness: Precise control of ceramic (0.2-2.0mm) and copper (0.1-0.8mm) thickness.
- Circuit Patterning: Complex designs with fine features for optimized current paths.
- Surface Finishes: Ni/Au, Ni/Pd, Ag, or Sn plating for enhanced solderability and protection.
- Material & Process Optimization: Tailored solutions for specific operational environments and performance targets.
