Product details

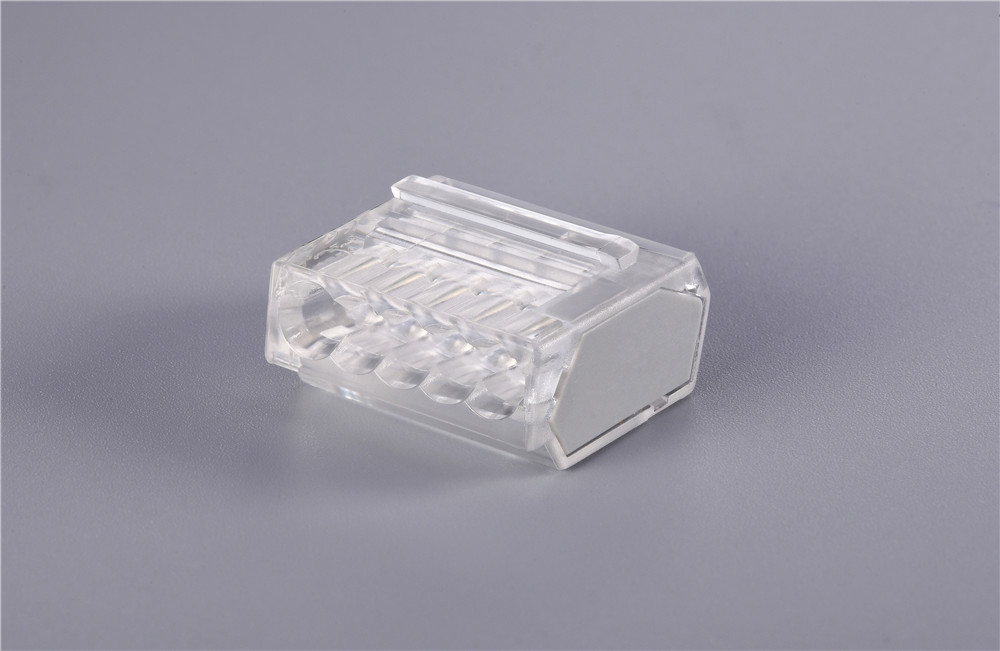

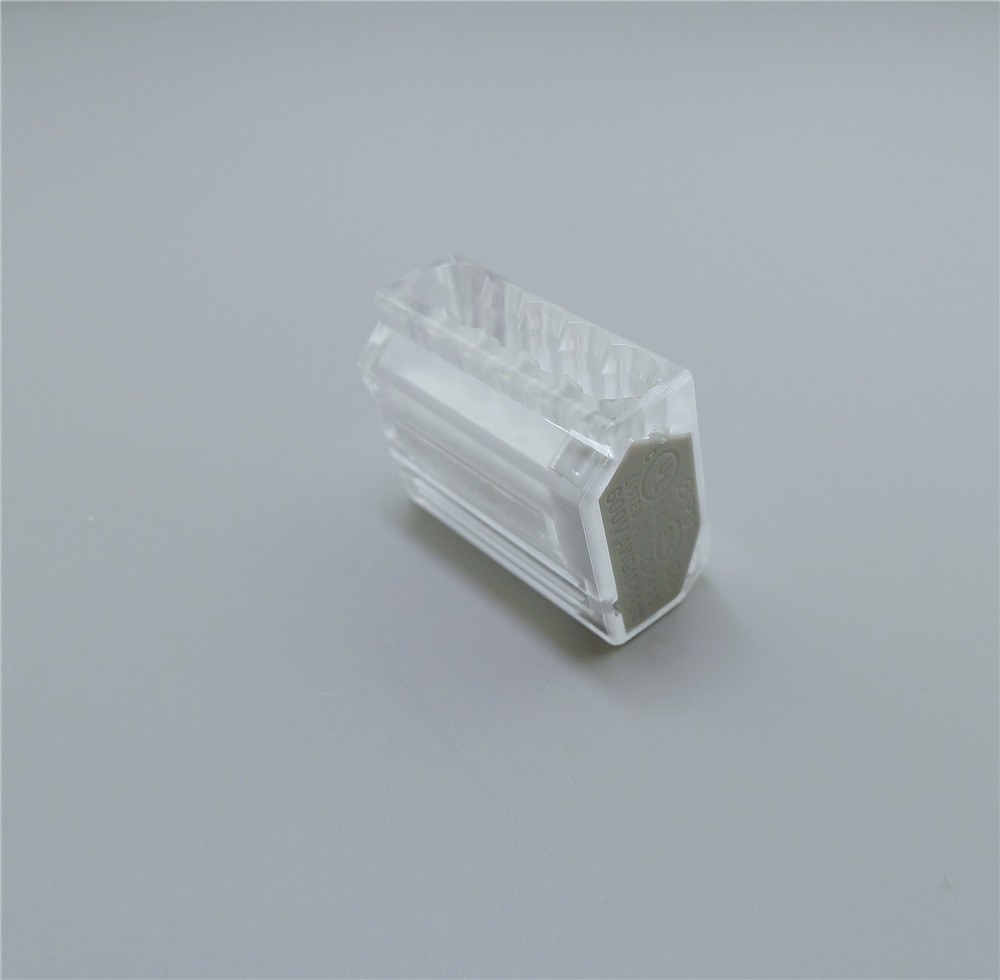

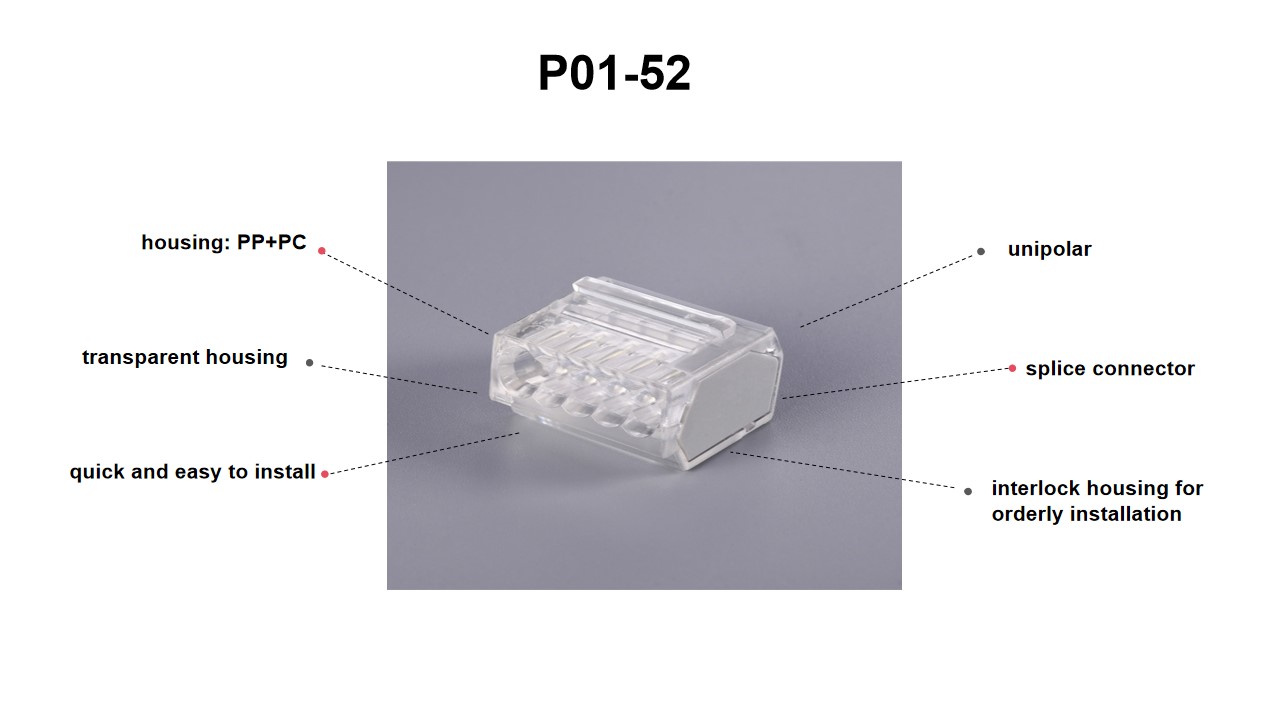

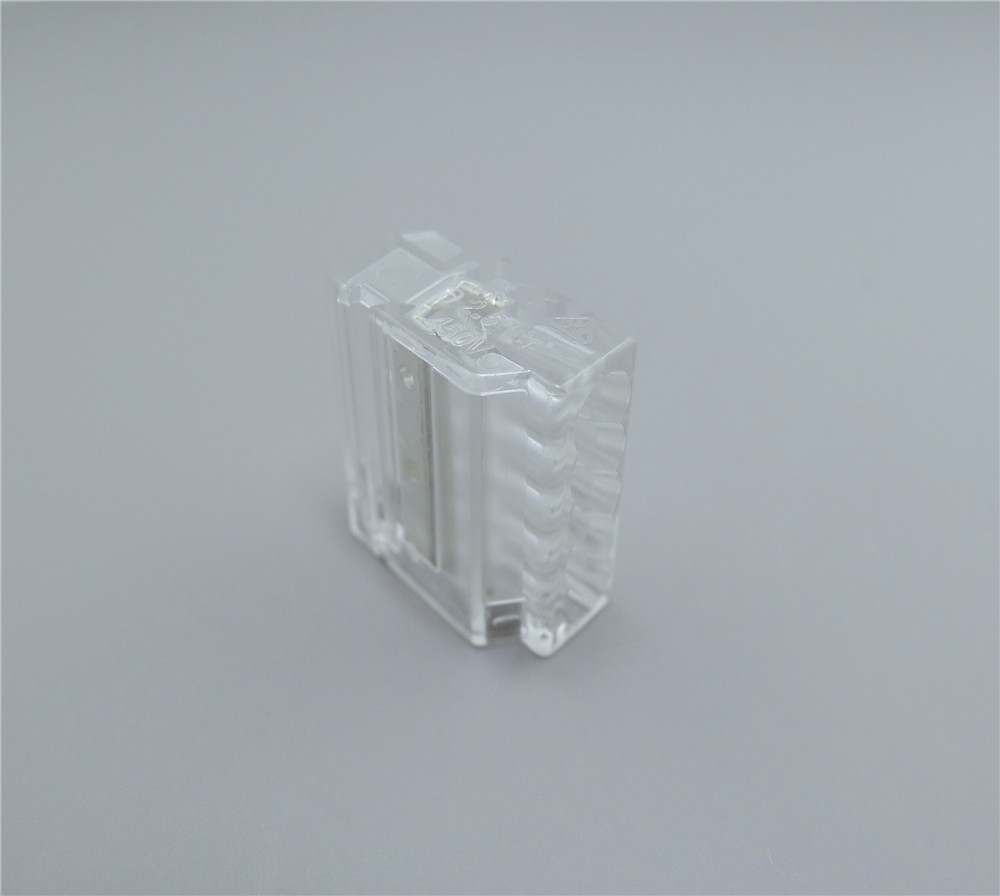

The BELEKS P01 Series Push Wire Connectors, model P01-52, are highly efficient and reliable tools for connecting multiple wires simultaneously in a variety of electrical and electronic setups. They feature five poles, allowing for the effortless connection of several wires into a single connector. These wire harness connectors boast a user-friendly push-in design that streamlines the wire insertion process, eliminating the need for screws or soldering, making them quick and convenient to use. Thanks to their robust construction, compact size, and superior electrical performance, the P01 Series fast connectors are widely applicable across industries, including automotive, industrial automation, and consumer electronics.

Materials:

Housing: polycarbonate & polypropylene(v2)

clamping unit: copper & stainless steel

cover color: grey

Packing info:

100 pcs per bag, 20 bags per carton

carton size: 28.8×25.8×26.5 cm

net weight: 7kg

gross weight: 7.5kg

Specifications:

Item No.		P01-52
Electrical Data
		IEC/EN	UL
Rated Voltage (V)		450	600
Rated Current (A)		24	-

Ambient Temperature	Polycarbonate / Polypropylene	T110	105℃

Connection Data
		IEC/EN	UL
Cross Section	Solid conductor	0.5-2.5mm²	AWG 14-20
	Stranded conductor	1.0-2.5mm² (7 strands included)	AWG 14-18
Strip length (mm)		13
Means of connection		push in
Rewirable		√
Number of terminals		single
Number of connection points		5
Materials
Insulation Materials	Designation	Polycarbonate, Polypropylene
	Flammability class	UL 94V-2
Packing Quantity (pcs/carton)
2000

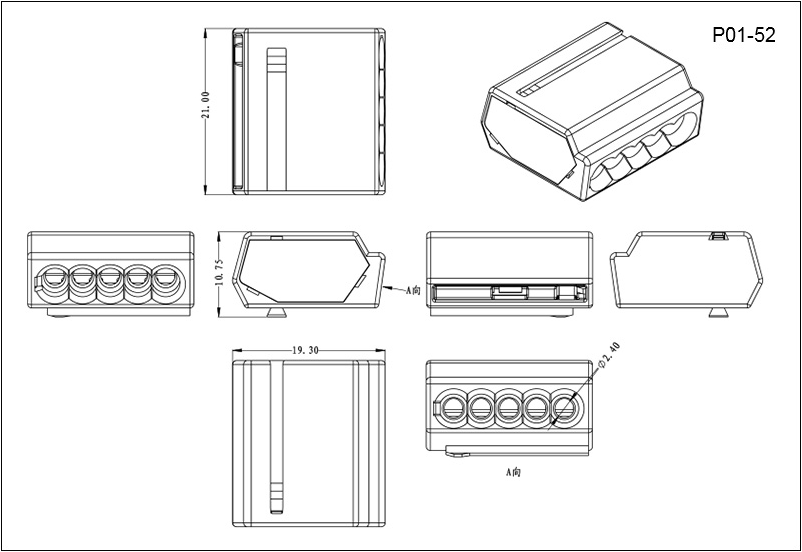

Drawing:

push wire connector
