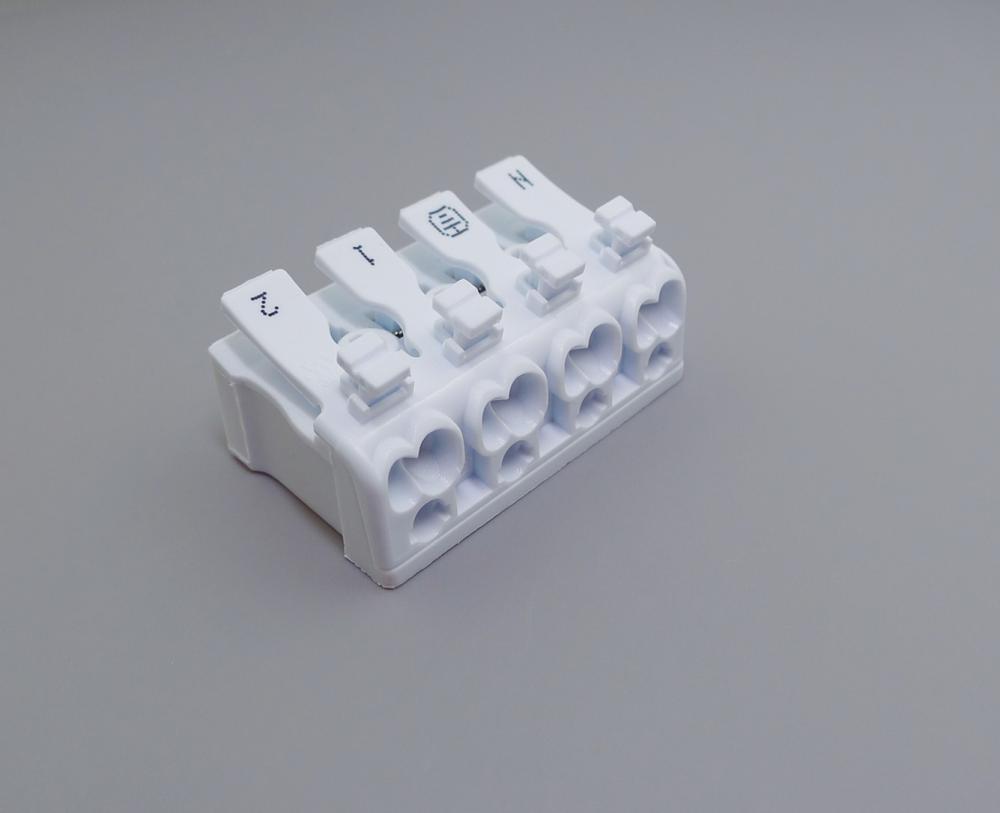

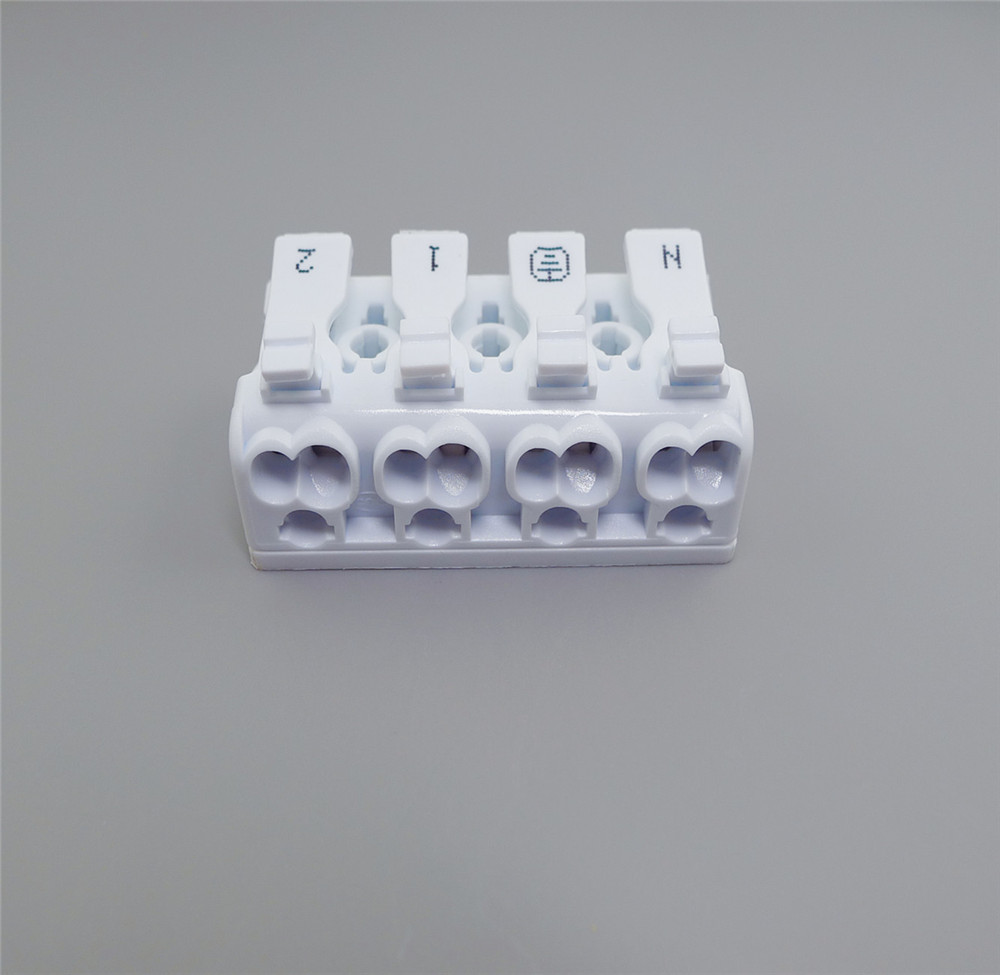

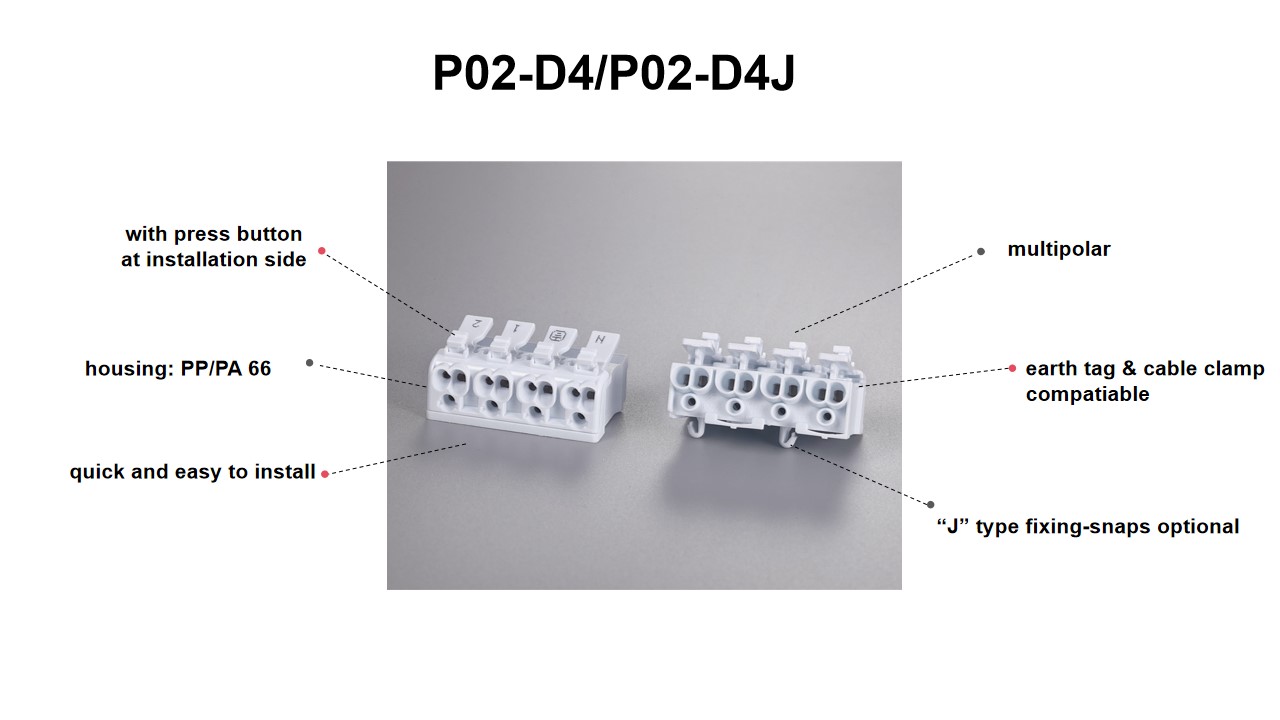

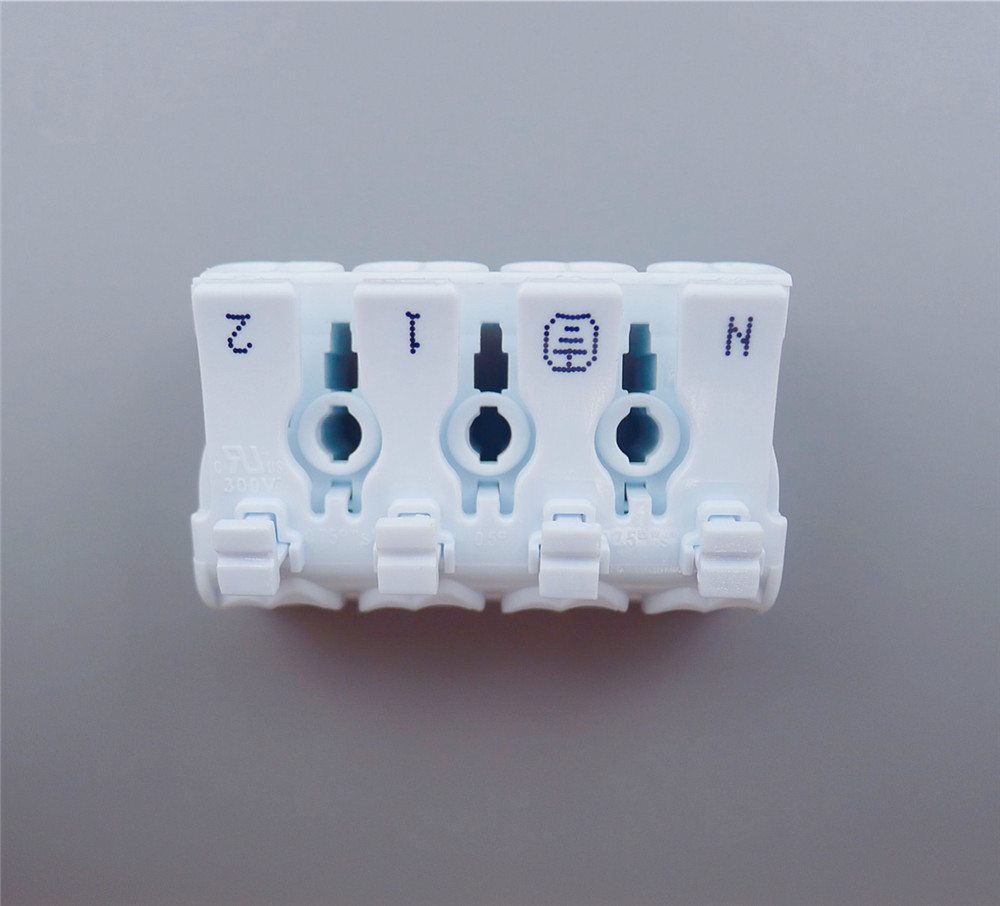

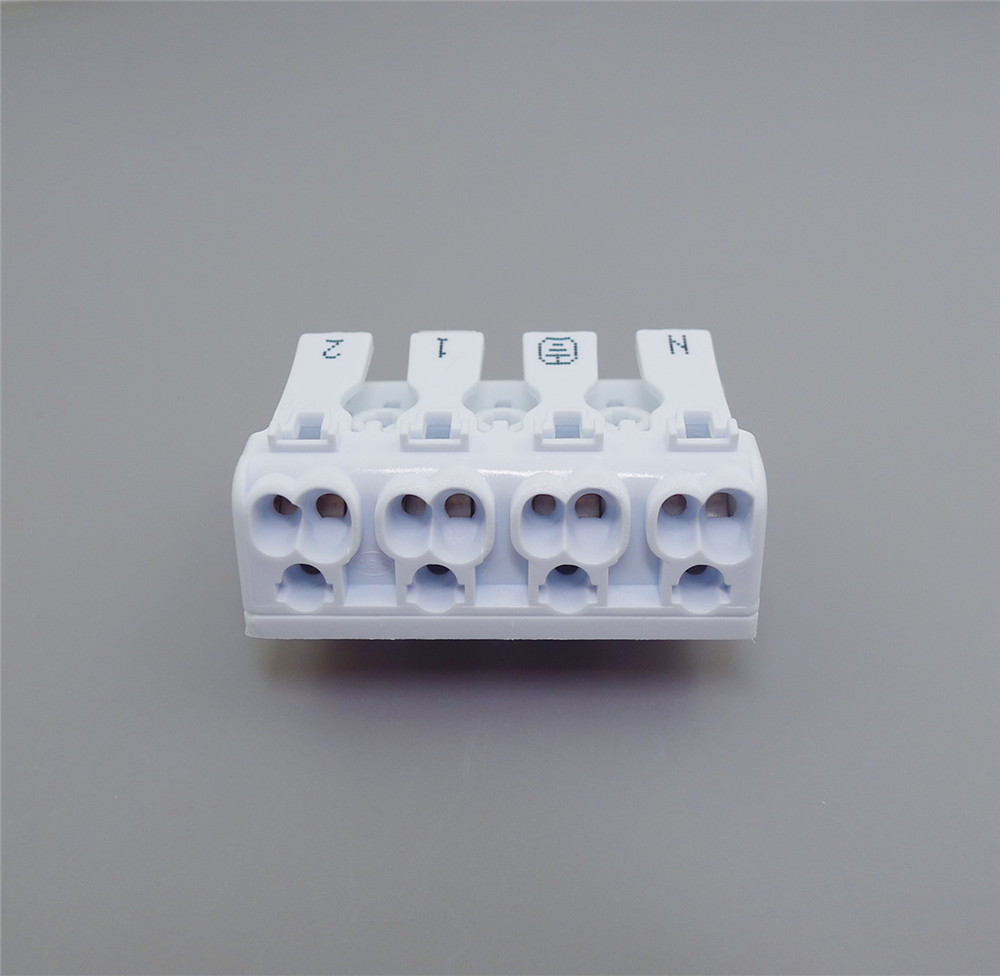

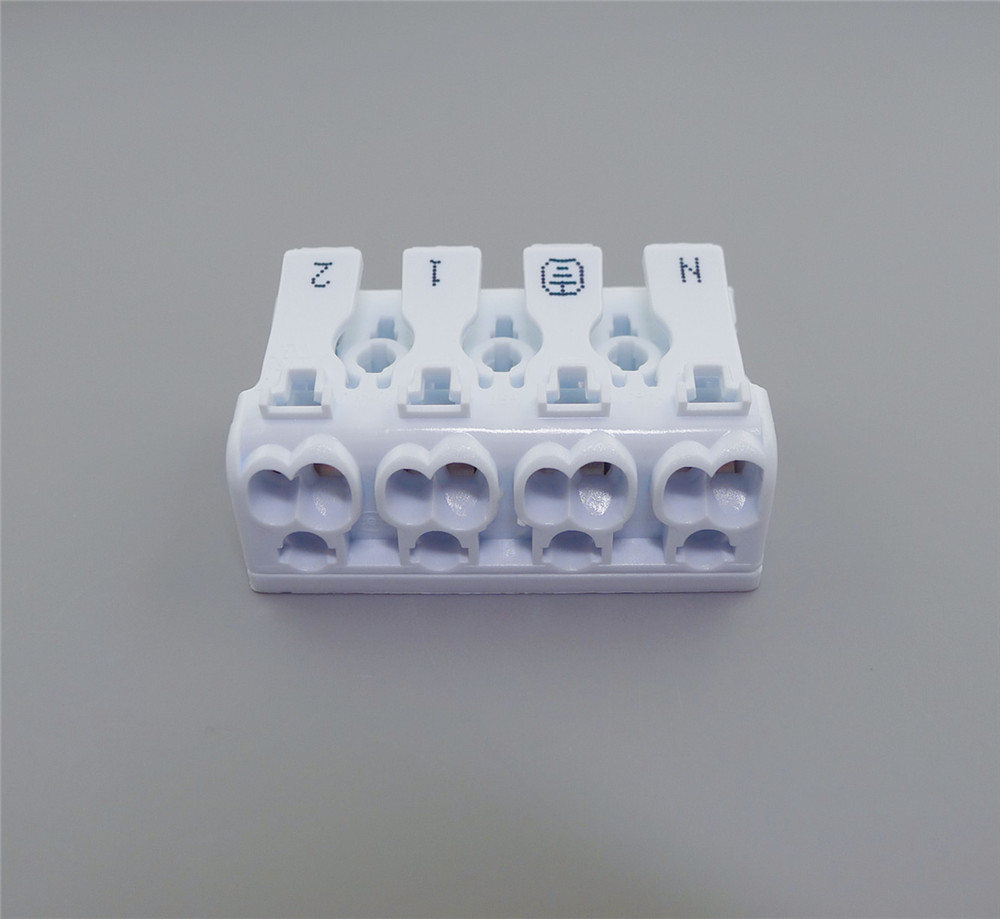

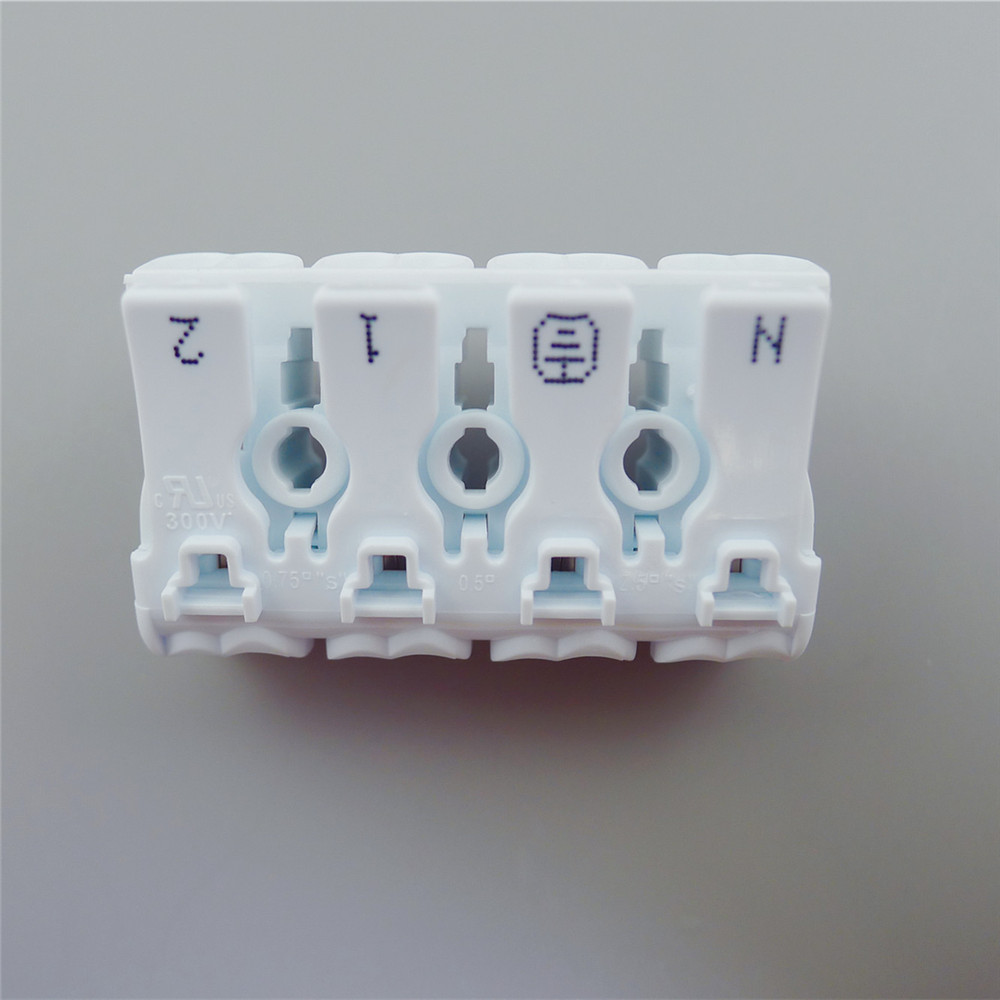

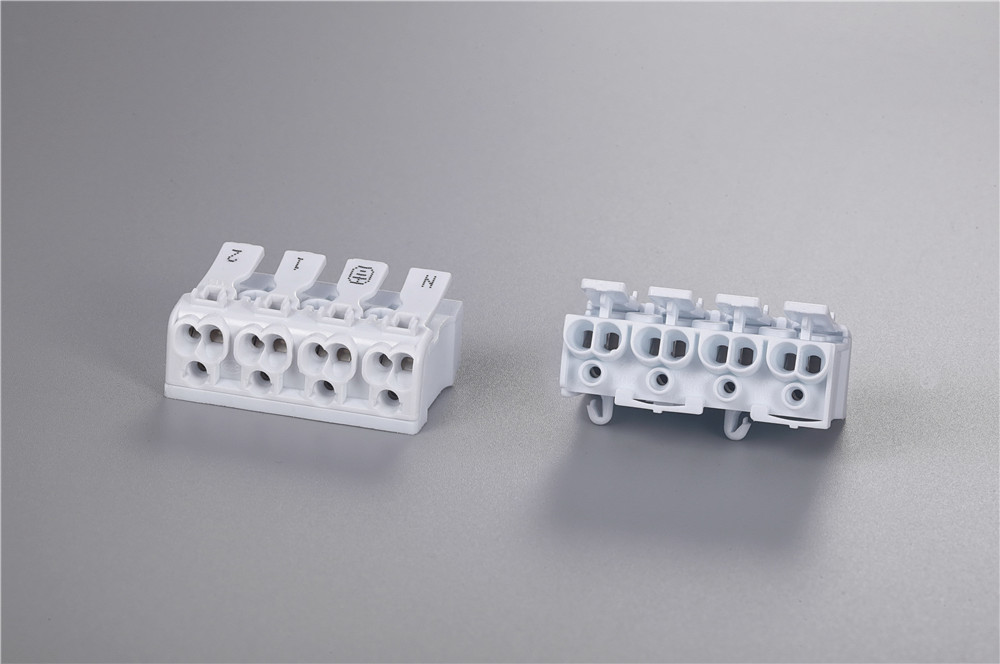

Introducing the BELEKS 4 pole multipolar wire connector with fixing snaps, a versatile and reliable solution for your electrical connection needs. This fixed foot connector terminal features four poles for secure and efficient power transmission, ensuring a stable and safe connection. The built-in fixing snaps provide a quick and easy installation process, saving you time and effort. Suitable for a wide range of applications, the BELEKS 4 poles multipolar push in connector is a must-have for any electrician or DIY enthusiast looking for a high-quality, durable, and user-friendly connector.

Materials:

Housing: polyamide66(v2)

cover & button: polycarbonate(v2)

clamping unit: copper & stainless steel

Packing info:

40 pcs per bag, 10 bags per carton

carton size: 57×28.1×12.5 cm

net weight: 4.5kg

gross weight: 5kg

Specifications:

Item No.			P02-4/9 P02-4J/9
Electrical Data
			IEC/EN	UL
Rated Voltage (V)			450	300
Rated Current (A)			24	16
Ambient Temperature			T110	105℃

Connection Data
			IEC/EN	UL
Installation side	A holes	Solid conductor	0.5-2.5mm²	AWG 14-20
		Stranded conductor
	B holes	Solid conductor	0.5-1.5mm²	AWG 16-20
		Stranded conductor
Lighting side	a/b holes	Solid conductor	0.5-2.5mm²	AWG 14-20
		Stranded conductor
		Flexible conductor		-
Strip length (mm)			8-10
Means of connection			push in
Rewirable			√
Number of terminals			multiway
Number of connection points			4*2
Means of Fixing			screw fixed / fixing snap
Flammability class			UL 94V-2
Compatible Products
Junction boxes			415
Packing Quantity (pcs/carton)
400

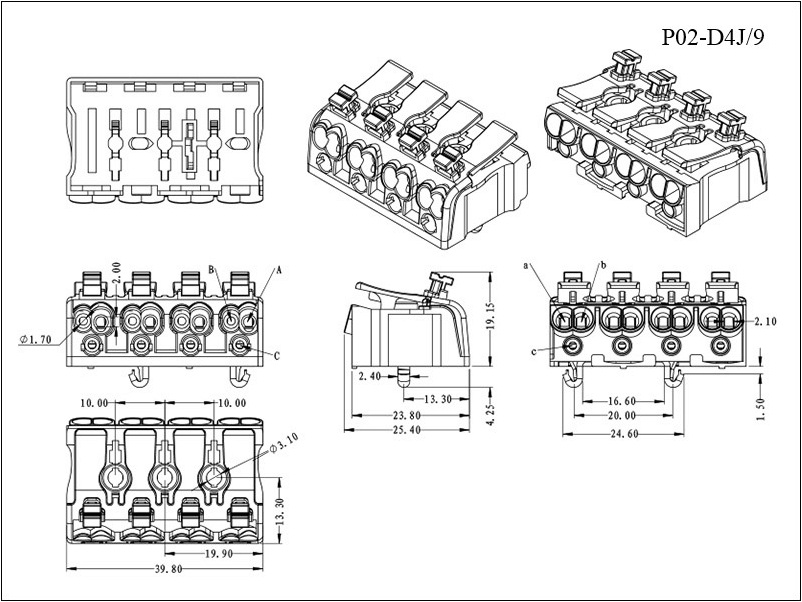

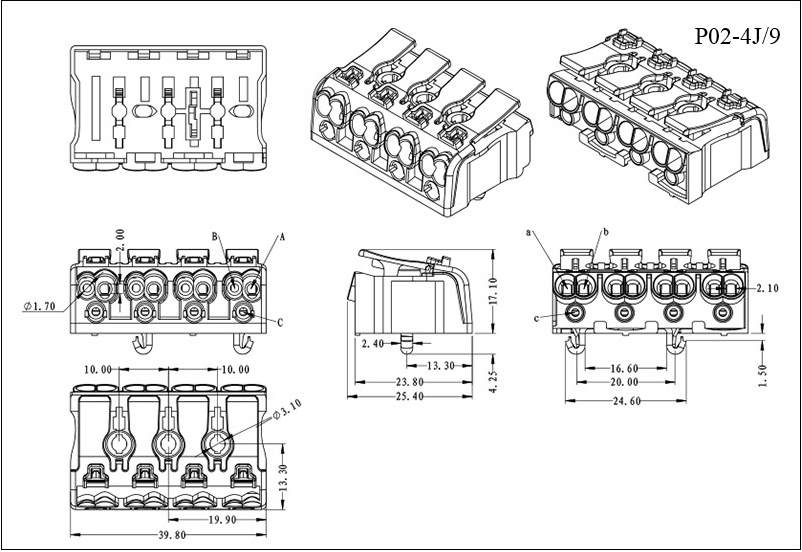

Drawings:

push wire connector 4 ports
