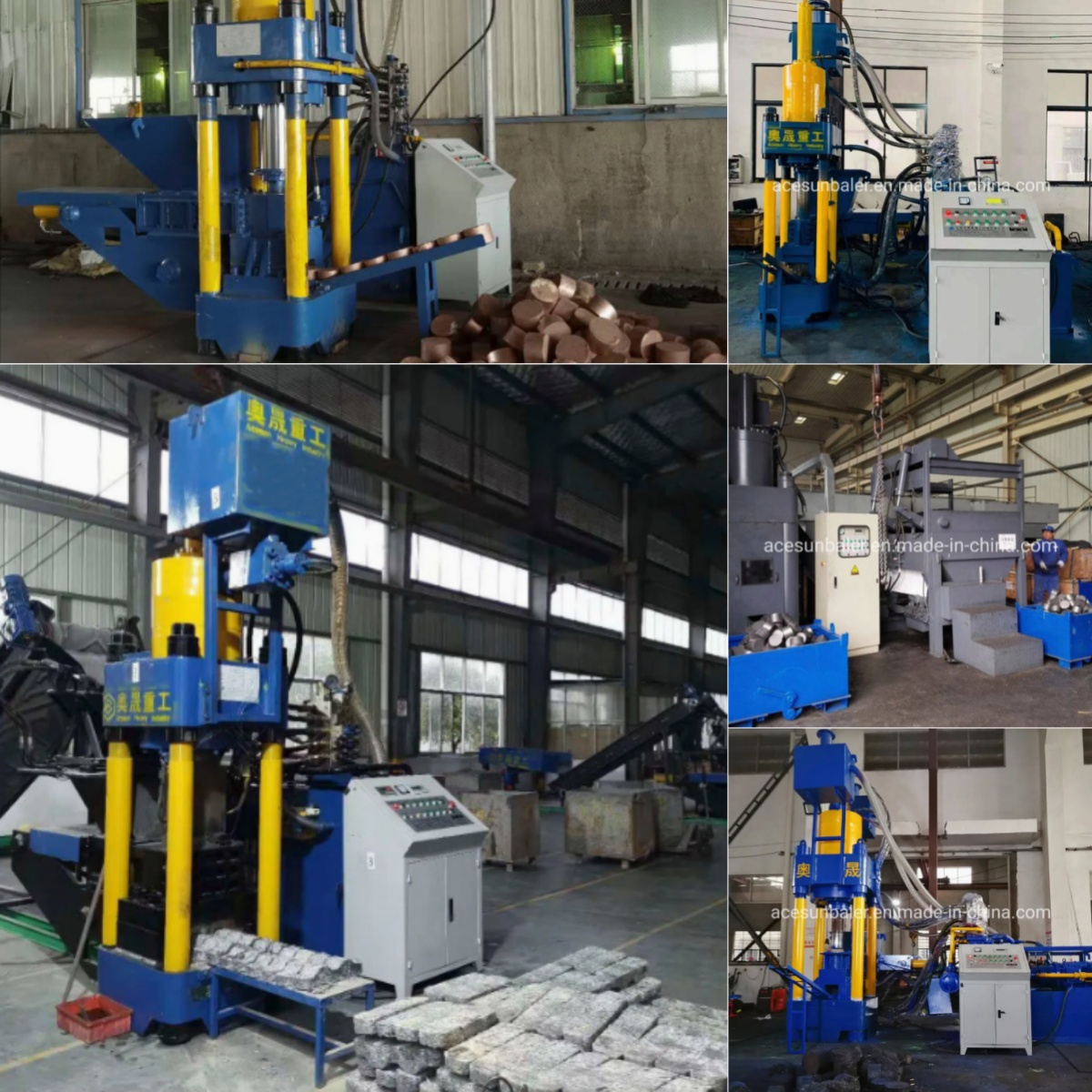

Aluminum turnings briquetting machine

5 month ago

8 0 

JIANGYIN STARSHINE MACHINERY TECHNOLOGY CO.,LTD

10 month

Product details

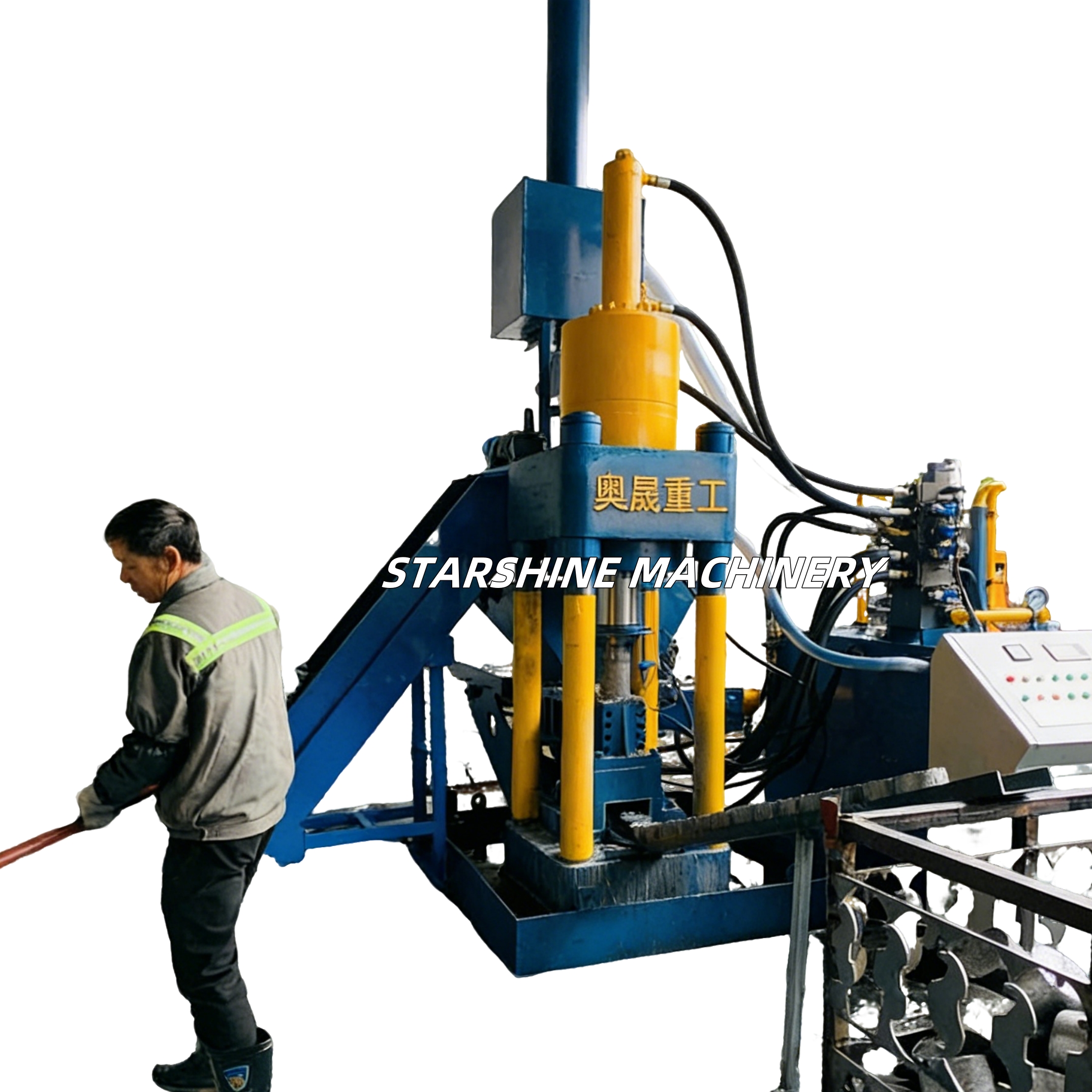

Hydraulic Press For Stainless Steel Briquetting Machine

Working Principle of Metal Briguette Machine:

1. Feeding: metal scrap is put into the hopper by conveyor belt or manually, the design of the feeding hopper is usually wider, and some silos are equipped with stirring bars to prevent the material from overhead.

2. Pre-compression: The metal scrap put into the hopper is preliminarily compressed to exclude air and oil in it, in order to prepare for the subsequent high-pressure molding.

3. High-pressure molding: using the hydraulic system to apply tens of tons to hundreds of tons of pressure, the pre-compressed scrap will be pressed into high-density cake inside the compression mold cavity.

The main role of Hydraulic Briquetting Machine:

1. Convenient storage and transportation: It can compress loose metal scraps into compact cake pieces, reducing the volume by 70%-90%, significantly saving storage space and reducing transportation costs.

2. Enhance the recycling value: the metal after briquetting is easier to melt, warms up faster in the furnace, melts better, reduces oxidization loss, improves the recycling rate, and then enhances the economic value of the scrap.

3. Reduce the processing cost: it can directly process the scrap produced by stamping, cutting, etc., which reduces the intermediate links in the process of scrap processing and lowers the processing cost.

Structural components of Metal Pressing：

1. frame: generally use high quality international standard steel plate, using mortise and tenon type plate welding structure, etc., so that the overall structure is strong and sturdy, to meet the high strength and high load operation.

2. Hydraulic system: including hydraulic cylinders, cartridge hydraulic valves and so on. Such as integral hydraulic cylinders using integral casting process, one-piece molding, high strength, to meet the high pressure operation for a long time; cartridge hydraulic valve can handle large flow and high pressure, reduce the impact of commutation, to ensure stable and reliable operation, and good sealing.

3. Feeding device: it usually consists of hopper and conveyor belt, etc. Some of them are also equipped with stirring bar to ensure that the metal chips can enter the cake press evenly and smoothly.

4. control system: modern scrap metal chip cake press is equipped with advanced control system, such as PLC and touch screen automation control system, the operator can easily set the parameters through the touch screen interface, such as pressing pressure, holding time, etc., it can also realize the automatic detection of faults and alarms and prompts, and at the same time, it can be linked with other equipment in the production line.

Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Y83-2000	280	φ80×(60-80)	≥5	4~5	3~5.5	18.5	PLC automatically
Y83-2500	320	φ90×(60-80)	≥5	4~5	5~8	30
Y83-3150	360	(φ90~φ110)×(70-100)	≥5.5	4~5	5~8	30
Y83-3600	400	(φ100~φ120)×(70-100)	≥5	4~5	8~12	30
Y83-5000	450	(φ110-φ140)×(70-100)	≥5	4~5	10~14	37
Y83-6300	520	(φ130-φ160)×(70-100)	≥5	4~5	16~20	45
