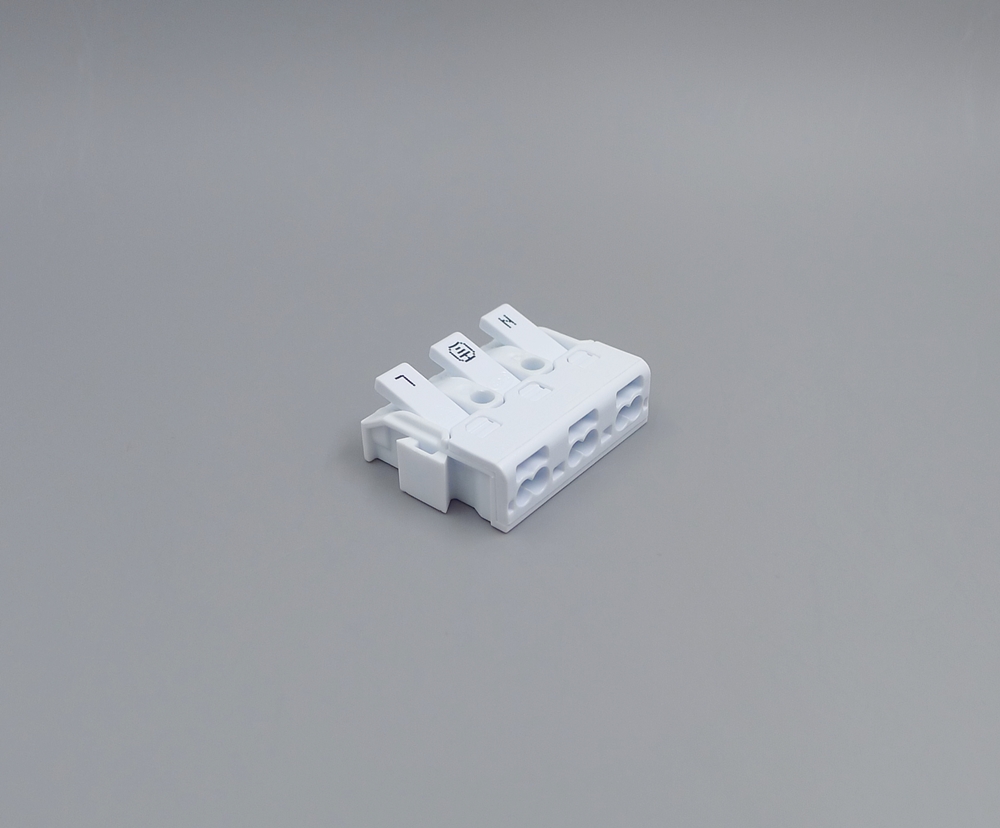

BELEKS 450V Compact Splicing Connector
4 month ago
BELEKS 3 pole miniature high performance fast connectors are designed for quick and reliable electrical connections in a variety of applications. These push wire connectors offer exceptional performance, with their compact size and innovative design making them ideal for use in tight spaces. They feature a quick-connect mechanism that simplifies installation and reduces the risk of errors, ensuring a secure and efficient connection. Made from high-quality materials, BELEKS 3 pole miniature high performance quick connectors are built to withstand harsh environments and provide long-lasting durability. Whether you're working on a small electronics project or a large-scale industrial application, these connectors are the perfect solution for your electrical connection needs.
housing: polyamide66(v2)
cover & button: polycarbonate(v2)
clamping unit: copper & stainless steel
Packing info:
100 pcs per bag, 10 bags per carton
carton size: 57×28.1×12.5 cm
net weight: 6kg
gross weight: 6.5kg
Parameters
| Item No. | P02-M3 P02-M3J | ||
| Electrical Data | |||
| IEC/EN | UL | ||
| Rated Voltage (V) | 450 | 300 | |
| Rated Current (A) | 17.5 | 9 | |
| Ambient Temperature | Polyamide 66 | T110 | 105℃ |
| Connection Data | |||
| Cross Section | IEC/EN | UL | |
| Installation side | Solid conductor | 0.5-2.5mm² | AWG 16-20 |
| Stranded conductor | 0.5-1.5mm² | ||
| Flexible conductor | - | ||
| Factory side | Solid conductor | 0.5-1.5mm² | AWG 16-20 |
| Stranded conductor | |||
| Flexible conductor | - | ||
| Strip length (mm) | 8-10 | ||
| Means of connection | push in | ||
| Rewirable | √ | ||
| Number of terminals | multiway | ||
| Number of connection points | 3*2 | ||
| Means of Fixing | |||
| screw fixed / fixing snap | |||
| Materials | |||
| Insulation Materials | Designation | Polyamide 66 | |
| Flammability class | UL 94V-2 | ||
| Compatible Products | |||
| Junction boxes | TB-02 | ||
| Packing Quantity (pcs/carton) | |||
| 1000 | |||

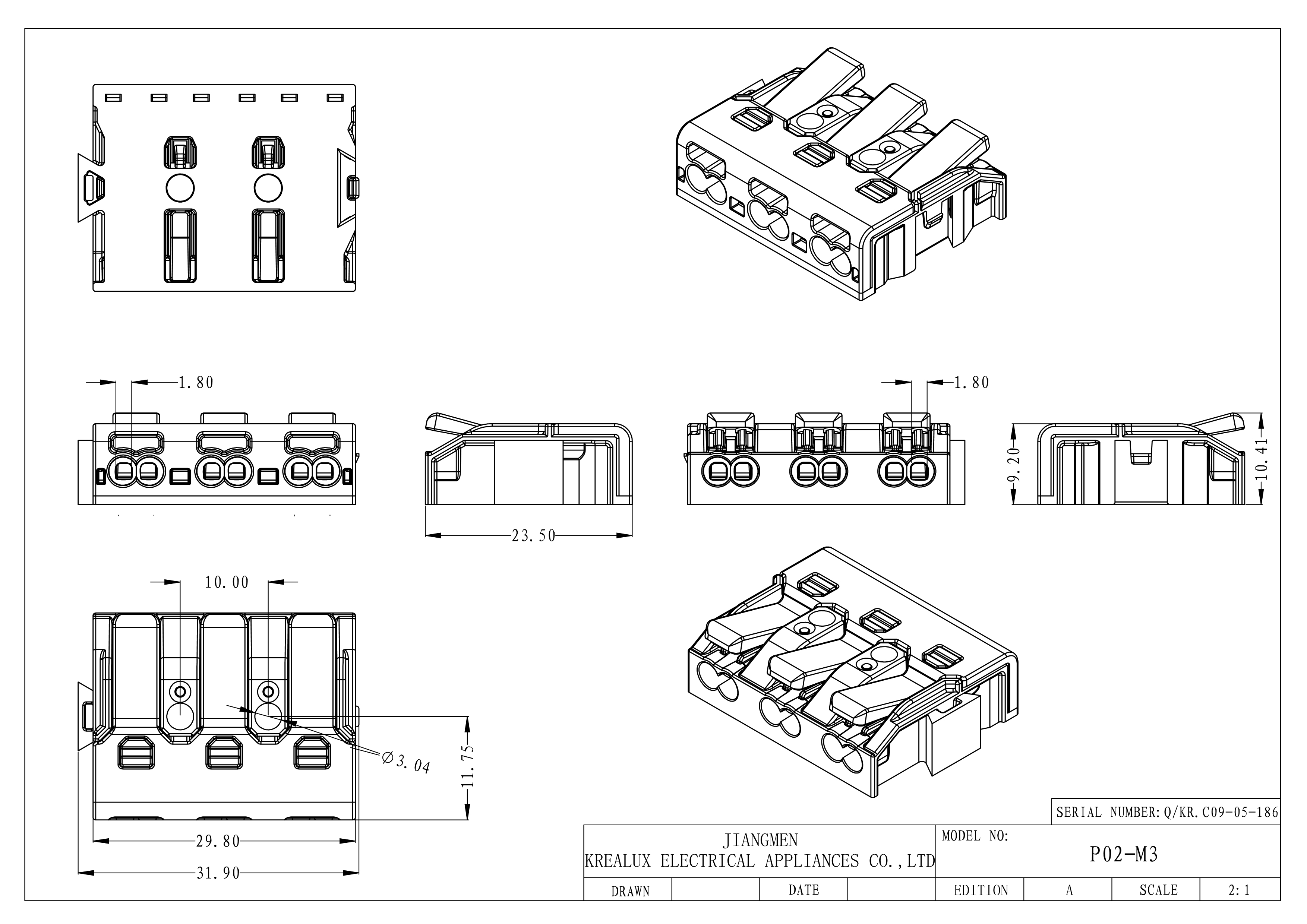

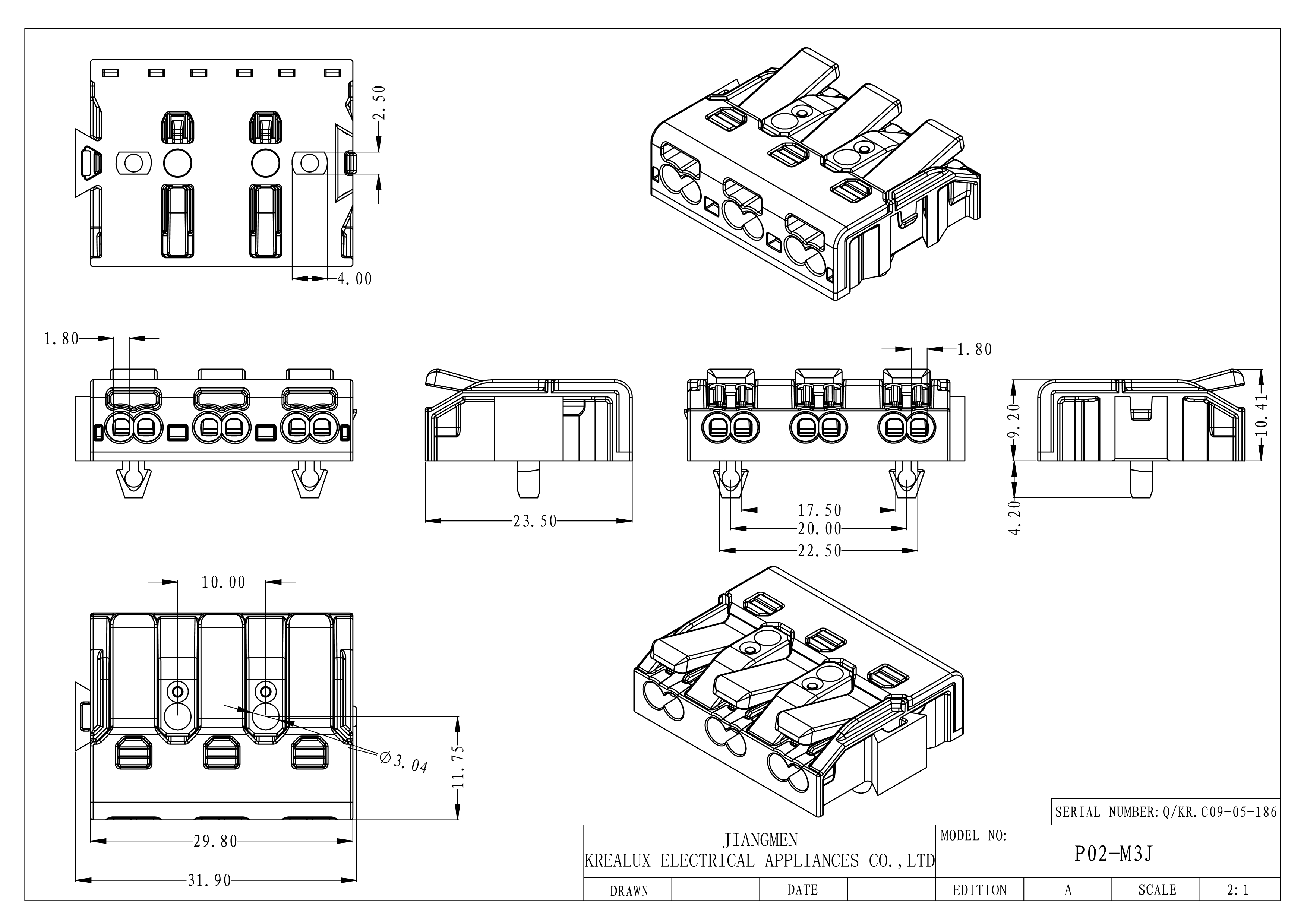

Drawings
