650V 50A 3-phase Motor Drivers SAM265M50AA1

3 month ago

5 0 

Guangdong Kinwill Electronic Co., Ltd

4 month

Product details

650V 50A Intelligent Power Modules(IPM)

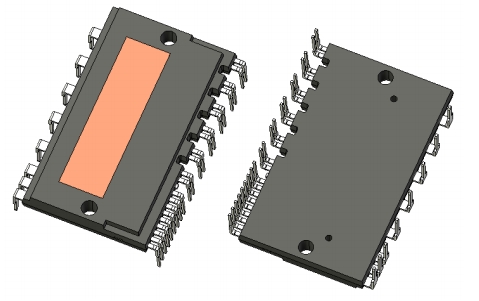

IPM Module -- SAM265M50AA1

Description

The SAM265M50AA1 is a 3-phase brushless motor drivers in which output transistors, a pre-drive circuit, bootstrap diodes with current-limiting resistors, and a temperature-sensing thermistor are highly integrated. The ICs are suitable for driving 3-phase motor of an automotive high voltage auxiliary equipment system.

Features

● AEC-Q100 Qualified

● Pb-free (RoHS Compliant)

● Isolation Voltage: 2500 V (for 1 min)

● Built-in Thermistor

● Built-in Bootstrap Diodes

● CMOS-compatible Input (3.3 V or 5 V)

● Fault Signal Output at Protection Activation

● Shutdown Signal Input

● Adjustable OCP Hold Time

● Protection Functions

Undervoltage Lockout for Power Supply

VBx Pin (UVLO_VBx): Auto-restart

VCCL Pin (UVLO_VCCL): Auto-restart

Overcurrent Protection (OCP): Auto-restart

Selection Guide

● Breakdown Voltage: 650 V

● Output Current: 50 A

Applications

For driving 3-phase motor of the following high voltage auxiliary equipment system such as hybrid electric vehicles (HEV) and electric vehicles (EV):

● Electric Compressor

● Electric Oil Pump

Package

DIP30

*Intelligent Power Module (IPM) is a highly integrated power electronics module, a type of semiconductor device. It monolithically packages power switching devices (such as IGBTs or MOSFETs), a drive circuit, protection circuits (including over-current, over-temperature, and under-voltage lockout protection), and interface circuitry (like level shifting and fault signal output) into a single compact physical unit. Widely used in motor drives & variable frequency control.
